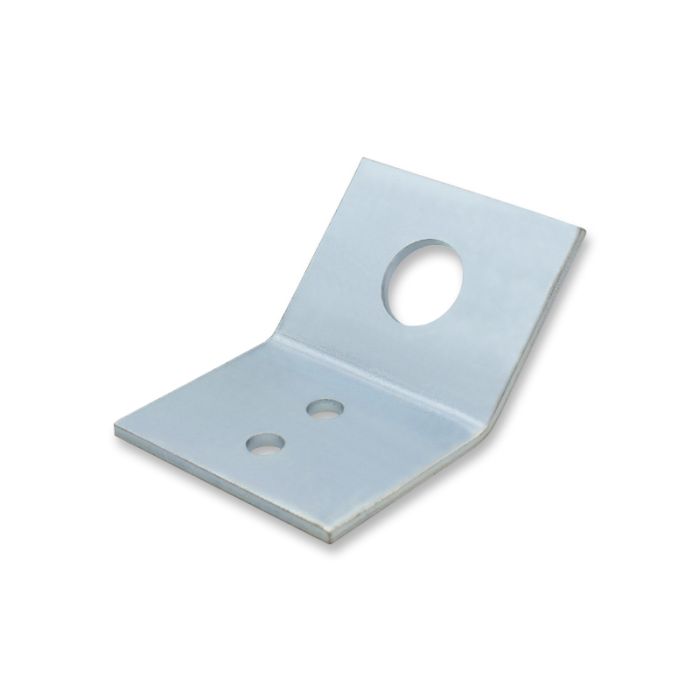

HOCL-9 45° Steel Strap – 12 Gauge by Doc's Industries Inc.

When crews anchor high-load utility lines, seismic wires, or overhead distributions beneath fluted deck systems, undersized clips become the weak point. Narrow brackets may twist under load, and mismatched fastener holes can lead to sheared screws, weak engagement, or inspection delays.

Hook and Hanger supplies this high-strength 45° steel strap for contractors who need serious anchor capacity under metal deck and concrete conditions. This clip gives crews a wide 2" body, rigid 12-gauge steel, and a 5/8" center hole for anchors. We stock it within our Angle Clips line for seismic splay work where deep coverage, repeatable 45-degree alignment, and dependable field performance count.

Seismic Bracing with the HOCL-9 45° Steel Strap Angle Clip

Seismic bracing is not only about passing plan review. It controls movement before a suspended system can rack, sway, or transfer force into the wrong connection point. The HOCL-9 gives installers a dedicated angled attachment point that supports heavy-duty overhead restraint.

When crews set this clip into concrete over metal decking, the angled form helps align splay wire or bracing hardware at the proper orientation. That alignment reduces field improvisation and helps maintain consistent restraint across long grid runs and utility banks. For projects that rely on concrete screws, expansion anchors, or deck fastening, our Overhead Drilling & Anchoring category supports the workflow used to set this clip with accurate penetration and holding strength.

HOCL-9 45° Steel Strap Angle Clip Works with Metal Decking and Concrete

The HOCL-9 is useful where pan-deck concrete and structural metal decking create uneven fastening conditions. Instead of forcing crews to adapt narrow hardware to wide deck profiles, Hook and Hanger offers this expanded profile to provide broader contact and stronger anchor clearance.

That adaptability matters in commercial interiors, mechanical rooms, and seismic ceiling zones. It supports a uniform splay point above suspended grid systems while fitting into roof and structural attachment packages that may include Purlin Clips for adjacent framing conditions or Beam Clamps for steel-member attachment points.

Hole Layout and Technical Specifications for the HOCL-9 45° Steel Strap Angle Clip

Here are the physical details to confirm before adding this 45° steel strap to the job package:

• Material Thickness & Gauge: Heavy-duty, rigid 12-gauge commercial steel strap specified to resist bending, distortion, and fatigue under high dynamic tension.

• Expanded Footprint Width: Features a wide 2" profile that provides exceptional lateral resistance and helps prevent rotation against deck surfaces.

• Leg Measurements: Uses symmetrical 1.5" long legs to deliver a deep structural profile and uniform factory-stamped 45-degree splay angles.

• Primary Fastener Provisions: Stamped with two distinct 1/4" outer holes designed to accommodate two #8 or #10 self-tapping framing screws for rapid deck pan security.

• Heavy-Duty Anchor Core: Features a massive 5/8" center hole for heavy 5/8" expansion anchors or large-diameter concrete anchors.

• Flexible Wire Routing: Allows either a 1/4" outer hole to loop and securely tie off heavy-gauge ceiling wire.

• Finish Protection: Treated with zinc plating, recommended for indoor corrosion defense and long-term durability.

• Rigorous Certification: Fully compliant with California IR 25-2.13 guidelines, providing submittal backing for structural and seismic projects.

• Packaging Data: Distributed in commercial boxes of 100 pieces with a net box weight of 17.10 lbs for field handling and tracking.

Common Uses for the HOCL-9 45° Steel Strap Angle Clip

This wide, large-hole splay clip gives crews a mechanical advantage when the attachment point must carry more than light tie wire. Use it to brace heavy main-run electrical conduit banks, reinforce mechanical utility drops, stabilize main ceiling grid structures in high-seismic zones, and cross-brace structural framing profiles where the layout needs a strong 45-degree splay point.

In acoustic and ceiling work, this clip gives foremen a dependable anchor location above the Suspended Ceiling framework. In utility-heavy corridors, it supports Cable Management layouts where conduit, low-voltage pathways, and mechanical services need code-compliant seismic stabilization along metal decking profiles.

Main Advantages of the HOCL-9 45° Steel Strap Angle Clip on the Job

• Symmetrical stress distribution: The 2" wide body spreads lateral stresses evenly, helping protect the metal deck pan from twisting, point loading, and field distortion.

• Heavy anchor compatibility: The oversized 5/8" center hole allows integration with heavy structural anchors for high-load specifications.

• Flexible field fastening: The dual-purpose 1/4" outer hole layout lets crews switch between driving framing screws or tying structural ceiling wires without changing parts.

• Consistent 45-degree alignment: The factory-bent configuration gives crews repeatable splay geometry across consecutive drops, reducing layout variation and inspection questions.

Complete Your Project Package with Hook and Hanger

A single clip matters, but a coordinated material package keeps the project moving. Hook and Hanger supplies compatible overhead attachment hardware, threaded rod supports, seismic bracing components, and commercial fastener inventory with the same procurement discipline. That gives purchasing teams a cleaner way to standardize approved hardware across floors, phases, and contractor scopes.

We offer this 45° steel strap for crews that need submittal-ready performance without fragmented sourcing. Standardizing on a certified clip reduces paperwork delays, improves field hand-offs, and maintains the same installation method through final inspection. Hook and Hanger supports volume ordering and direct shipment from our commercial hub, helping high-output crews keep critical seismic hardware available before layout begins.
