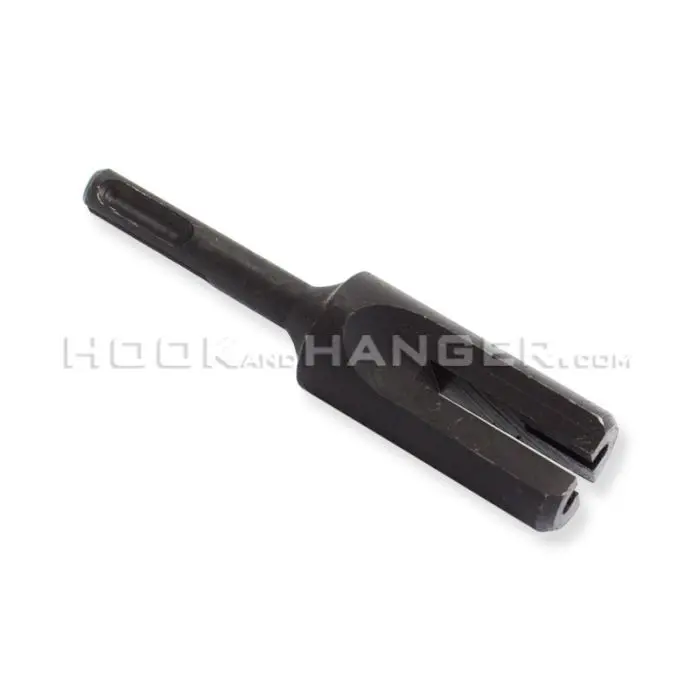

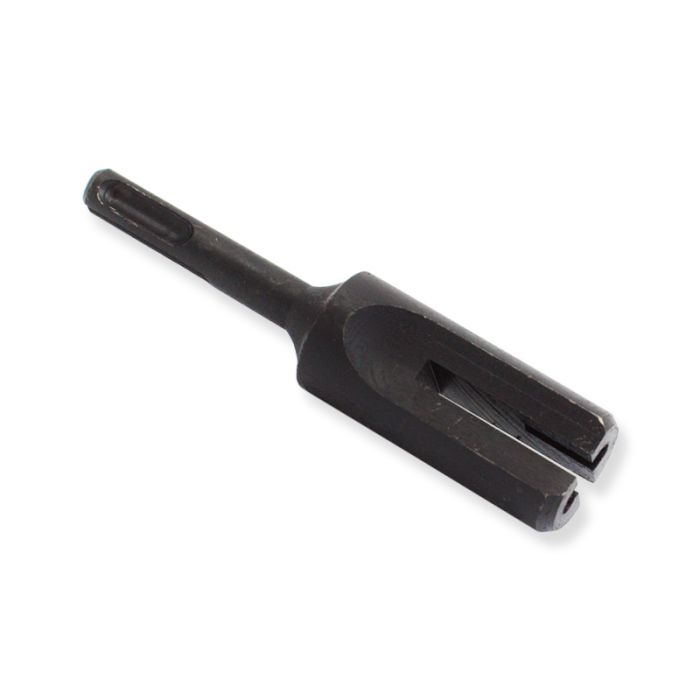

I-Wedge Tool

Driving overhead anchors into a concrete deck requires precise alignment between the fastener, drilled hole, and hammer drill. An improvised adapter can shift under impact, damage the anchor head, or interfere with nearby components. Hook and Hanger distributes an SDS Plus accessory that helps crews coordinate secure deck attachments with planned cable management routes.

When you select the I-Wedge Tool, you equip your crew with a specialized accessory built to install I-Pins, Eye-Wedge Anchors, and Powers' Tie-Wire Spike Anchors seamlessly. Its robust construction supports repeated hammering, while its 0.40-pound weight makes the adapter easy to handle during frequent drill changes and extended overhead work.

What Is the I-Wedge Tool Used For?

The I-Wedge Tool converts a compatible SDS Plus hammer drill into a dedicated anchor driver. Use it after drilling the concrete hole and before loading the supported ceiling hardware. Its shaped slot accepts the compatible fastener so hammer energy passes through the anchor and into the prepared hole.

• Attaches to any SDS Plus hammer drill through its standard connection.

• Drives compatible anchors with the hammer drill set to its "hammer only" feature, without rotary action.

• Keeps pre-tied fasteners aligned with the prepared concrete hole.

• Handles primary applications involving 1/4-inch I-Pin anchors, Eye-Wedge Anchors, and Powers' Tie-Wire Spike Anchors installed into concrete decks.

What Are the I-Wedge Tool Specifications?

Check the drill connection, intended anchor type, and operating mode before adding the adapter to your jobsite tool schedule.

• SKU: I-Wedge

• Compatibility: Attaches to any SDS Plus Hammer Drill

• Product Weight: 0.40 lbs.

• Anchor Application: Designed for installing I-Pins, Eye-Wedge Anchors, and Powers' Tie-Wire Spike Anchors

• Operational Mode: Operates via the "hammer only" feature of an SDS Plus hammer drill

How to Install Anchors Using the I-Wedge Tool

Confirm the anchor location against the approved ceiling layout and check the concrete deck for concealed services. Drill the concrete hole with the specified HALT bit at the required diameter and depth, then clean it according to the anchor instructions. Stop the hammer drill, remove the bit, and insert the I-Wedge Tool into the SDS Plus chuck. Confirm that the adapter is retained and select hammer-only mode.

Insert a pre-tied 1/4-inch I-Pin anchor into the tool's slot and center the fastener over the hole. Hold the hammer drill in line with the anchor and apply hammer action to drive it directly into place. Once the anchor reaches its specified position, stop the drill and pull down on the attached wire to set it securely. Check the attachment before applying load, and follow the anchor supplier's instructions, project specifications, and safety requirements.

When your crew evaluates installation tools alongside standard overhead drilling and anchoring operations, this method supports rapid, repeatable placement with fewer tool changes. It also protects the pre-tied connection from an incorrectly shaped driver. The completed deck attachment can support the specified ceiling framework, while beam clamps, angle clips, and threaded rod fasteners address other project connection points. Match every component to its approved base material, load rating, and installation method.

Why Choose Specialized Installation Adapters for Ceiling Grids?

A complex suspended ceiling layout can require repeated deck attachments across rooms, corridors, and service zones. A dedicated SDS Plus anchor driver directs hammer force through the compatible fastener while helping you maintain the correct working angle. Controlled contact limits slipping around the anchor head and supports consistent placement where secure fastening affects the structural integrity of the specified system.

Professional-grade adapters also simplify tool planning, crew instruction, and equipment verification. You can specify the correct adapter on tool lists, confirm its drill interface, and document the anchor types it supports. This helps lead installers prepare equipment and reduces the chance of using an unsuitable general-purpose bit for anchor setting. The adapter remains lightweight for overhead handling while providing sturdy construction for repeated jobsite use.

Hook and Hanger also supplies hardware for the surrounding support layout. Use purlin clips for approved connections to compatible purlins, route supported services with j-hooks, and pair suitable extension poles with tasks designed for floor-level installation. We also stock eye lag screws for compatible wood or other approved base materials. Because these parts are intended for different base materials and connection methods, select them according to the drawings, fastening schedule, load requirements, and governing code.

Order I-Wedge Tools From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, professional-grade tools and overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, universal SDS Plus compatibility, and reliable anchor-driving power of the I-Wedge Tool into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your I-Wedge Tool inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
