Overhead Drill Machine ODM Generation 2 - The Drill Extension Pole
Overhead Drill Machine ODM G2 Drill Extension Pole, the Overhead Drill Press for Ceilings up to 13'
The ODM G2 is the ultimate all-in-one drill extension pole tool for overhead drilling applications. Also known as an 'overhead drill press', this tool does the same thing his does but at a fraction of the cost. The universal saddle fits most "D" handle rotary hammer drills on the market. The ODM G2 is the most efficient and effective tool of its kind. Use it to install anchor wedges, eye pins, eye wedge anchors as well as a variety of other anchors safely from the ground. The ODM G2 Telescoping Overhead Drill Machine can be used for Concrete Ceilings up to 13'.
Overhead Drill Machine ODM G2 Drill Extension Pole, the Overhead Drill Press Includes:Triple telescoping aluminum pole
Universal welded aluminum rotary hammer saddle
Foot pedal to take the load off your arms and back.
Overhead Drill Machine ODM G2 Drill Extension Pole, the Overhead Drill Press for Ceilings up to 13' - Compatible Drill Models
BOSCH® 11250VSRD Boschhammer w/ Microfilter System
BOSCH® RHH181-01 Brushless Rotary Hammer Kit with Chisel Function
BOSCH® GBH18V-26 Bulldog™
BOSCH® 11255VSR Bulldog Xtreme
BOSCH® 11258VSR - SDS Rotary Hammer Drill
DEWALT® D25223k SDS Rotary Hammer
DEWALT® D25023 D-Handle
DEWALT® DCH273P2 20V MAX* XR Brushless Lithium Ion 3 mode SDS
DEWALT® DCH213L2 20V MAX* Lithium Ion 3 mode SDS
DEWALT® DCH133B Cordless D-Handle
HILTI® TE-2 Pistol Grip
HILTI® TE-7 Pistol Grip
HILTI® TE-7C L-Shape
HILTI® TE 4-A18 Cordless L-Shape
HILTI® TE 4-A22 Cordless L-Shape

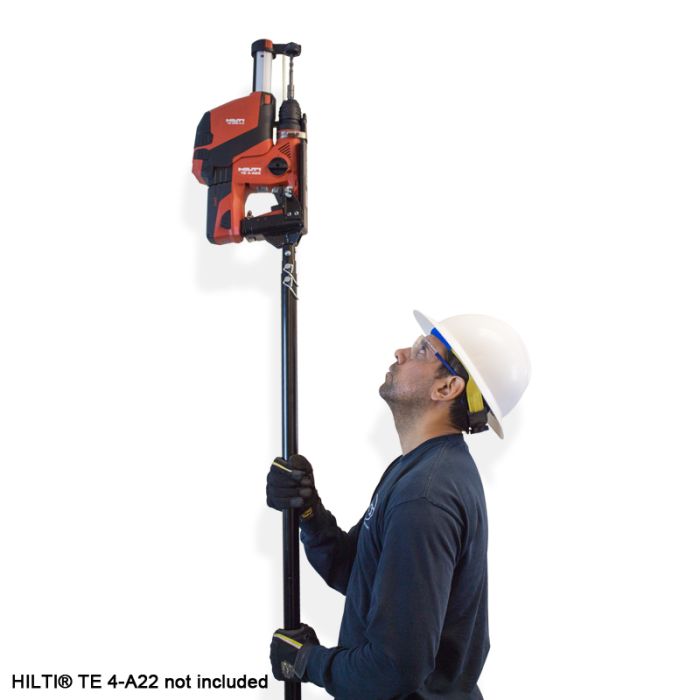

HILTI® TE 4-A22 w/ Hepa Vac.
HITACHI® DH24PF3 D-Handle
MAKITA®18V LXT Lithium-Ion BHR241Z
MAKITA® XRH01Z LXT® Lithium-Ion Brushless Rotary Hammer w/HEPA Vac.
MAKITA® XRH01 LXT® Lithium-Ion Brushless Rotary Hammer
MILWAUKEE® M12 Fuel Model# 2416-21XC
MILWAUKEE® M18 FUEL 2712-20 Cordless L-shape
MILWAUKEE® M18 FUEL 2713-20 Cordless D-Handle
Perfect for applications that are unfit for scissor lifts. Such as in between pre-installed ceiling grid, pipes and cables or above stairs.
Improves safety by keeping your employees on the ground
Consists of three sections and is recommended for ceilings up to 13'
Black anodized aircraft quality aluminum
Hands free trigger system allows you to grip the pole with both hands increasing stability and safety
The ODM's ceiling probe design automatically turns your rotary hammer on and off when upward pressure is applied and removed
Make fine height adjustments in increments as small as 1"
Use the removable ODM Pedal to make drilling easier on your arms and back, perfect for big jobs.
Made in the USA
Seismic Bracing Installation Instructions
Required tools and fasteners: ODM, ODM375, ODM916, TE-12, Torque Wrench, 3/8" Wedge Anchor, HOCL-45 Angle Clip, ceiling wire.
Step 1. Drill a 3/8" hole into the concrete ceiling using an ODM (Overhead Drill Machine) fitted with an ODM375 3/8"x 3.325" HALT bit.
Step 2. Remove the ODM375 HALT bit and insert an ODM916 SDS Plus 9/16" socket adapter, set the hammer drill to hammer only.
Step 3. Insert a 3/8" wedge anchor with a HOCL-45 angle clip prettied to ceiling wire into the ODM916 socket adapter.
Step 4. Raise the ODM up to the hole and insert the wedge anchor using the hammer function of the hammer drill.
Step 5. Use a TE-12 extension pole equipped with a LMP 9/16 Hex Plug to tighten the 9/16" nut on the wedge anchor to the appropriate torque using a torque wrench (Usually 25 ft/lbs).
1/4" I-Pin Anchor Installation Instructions
Required tools and fasteners: ODM, ODM-250, ODM I-Wedge, ODM-IP
Step 1. Drill a 1/4" hole in the concrete ceiling using an ODM (Overhead Drill Machine) and an ODM-250 1/4" x 1.25" HALT BIT.
Step 2. Remove the ODM-250 HALT bit and insert an ODM I-Wedge SDS Plus installation tool into your hammer drill, set the hammer drill to hammer only.
Step 3. Insert a pre-tied ODM-IP 1/4" I-Pin anchor into the slot of the ODM I-Wedge installation tool and hammer the anchor into the hole.
Step 4. Pull down to set the anchor.
