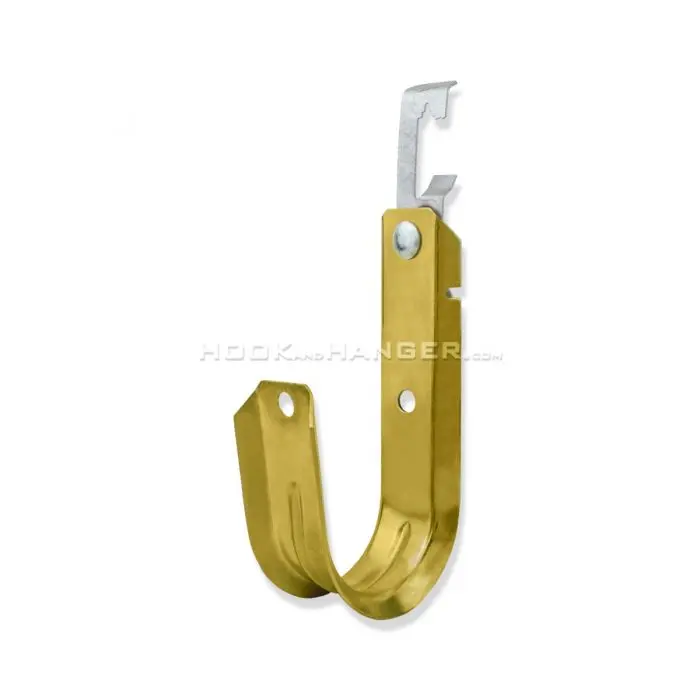

Heavy Duty Metal Batwing JHW J-Hook for Cable & Wire Support - Hooks onto Threaded Rod & Ceiling Wire by Doc's Industries Inc.

The JHW J-Hook Cable Support is a galvanized steel pathway support for data comm and low-voltage cable above finished areas. Hook and Hanger supplies this hardware with a yellow zinc chromate finish for corrosion resistance, clear identification, and jobsite-ready handling. It is designed for structured cable management layouts where crews need a rigid overhead support point on existing ceiling drops.

We stock this component for CAT 5e, CAT 6, and fiber optic pathways requiring controlled support and documented compliance. The JHW J-Hook Cable Support provides a heavy-duty structural anchor for overhead cable runs and is cULus listed, NEC/TIA compliant, and Plenum-rated for approved air-handling spaces.

What Is the JHW J-Hook Cable Support with Bat Wing Clip Used For?

The JHW J-Hook Cable Support holds communication cable in an open overhead pathway where cable tray is not required and bundled cable still needs listed support.

• The patented spring steel Bat Wing clip attaches directly to 12-gauge ceiling wire or threaded rod up to 1/4" in diameter.

• It supports CAT 5e, CAT 6, and 2-strand fiber optic lines in commercial low-voltage installations.

• It helps crews route cable above a suspended ceiling while keeping the pathway elevated and serviceable.

• It reduces added brackets, clamp assemblies, or specialty fasteners when approved wire or rod is already available.

• It supports placement of cable support points for telecom rooms, corridors, tenant improvements, open offices, and technology spaces.

What Are the JHW J-Hook Cable Support Specifications?

Hook and Hanger offers the JHW J-Hook Cable Support in four sizing options for different cable volumes and project documentation needs.

• JH-12W: 3/4" Size | Load Capacity: 17 lbs. | Support Capacity: 16 CAT 5e / 2-strand fiber optic, or 10 CAT 6.

• JH-21W: 1 5/16" Size | Load Capacity: 17 lbs. | Support Capacity: 50 CAT 5e / 2-strand fiber optic, or 32 CAT 6.

• JH-32W: 2" Size | Load Capacity: 17 lbs. | Support Capacity: 80 CAT 5e / 2-strand fiber optic, or 50 CAT 6.

• JH-64W: 4" Size | Load Capacity: 33.3 lbs. | Support Capacity: 300 CAT 5e / 2-strand fiber optic, or 185 CAT 6.

• Material: galvanized steel for rigid overhead cable support.

• Finish: yellow zinc chromate for surface protection and visibility.

• Design status: patented hook and Bat Wing clip configuration for direct wire or rod attachment.

These sizes help you specify the correct JHW J-Hook Cable Support for branch routes, medium pathway groups, and larger communication bundles.

How Does the JHW J-Hook with Bat Wing Clip Attach to Overhead Structure?

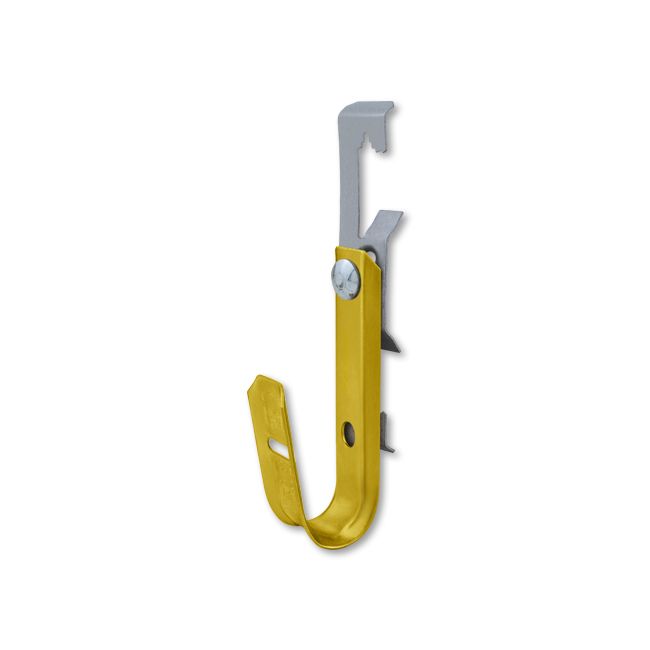

The Bat Wing clip is the main installation advantage. Instead of using a separate clamp body, the spring steel clip snaps onto 12-gauge ceiling wire or threaded rod up to 1/4" in diameter. Once attached, the galvanized hook provides a formed support surface for the cable bundle along existing structural drops.

For crews evaluating this part alongside overhead drilling and anchoring operations, the JHW J-Hook Cable Support can reduce drilling when suitable wire or rod is already in place. That matters where ceiling access, dust control, occupied-space coordination, and schedule control affect installation. Hook and Hanger also supplies related hardware for conditions requiring beam clamps, angle clips, or other fastening methods instead of a Bat Wing attachment.

Contractors often combine this product with other low-voltage supports to complete a ceiling-level layout. A run may begin at a wall penetration, cross open ceiling space, and continue toward equipment rooms or distributed network points. The JHW J-Hook Cable Support gives installers a consistent hanging point where the pathway follows existing ceiling wire or rod.

Why Use JHW J-Hook Galvanized Steel Supports in Plenum Spaces?

Plenum spaces require hardware suitable for air-handling conditions and accepted by project specifications. A Plenum-rated metal support helps keep the cable pathway aligned with commercial structured cabling requirements. NEC and TIA compliance also matter because data lines must be routed, supported, and maintained correctly.

The JHW J-Hook Cable Support gives contractors a rigid galvanized steel option for these requirements. The yellow zinc chromate finish adds surface protection, while the formed hook helps maintain cable bend control and bundle organization. For data comm and low voltage crews, that means cleaner routing, easier pathway review, and better future service access.

Hook and Hanger supplies this support alongside other overhead options so contractors can match hardware to the structure. Our hardware line includes purlin clips for metal building conditions, j-hooks for standard cable runs, extension poles for elevated installation access, eye lag screws for wood or approved anchoring points, and threaded rod fasteners for rod-based support layouts. This helps you source compatible parts for mixed commercial environments.

Order JHW J-Hook Cable Supports From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your JHW J-Hook Cable Support inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
