W600CZP 6" I-Lag™ Eye Lag Screw for Wood, 100 Pack

Commercial ceiling work may require a fixed attachment point in structural wood for ceiling wire or jack chain. The W600CZP eye lag screw provides a six-inch wood fastener with an integral eyelet and threaded end for indoor, tension-only suspension work. It gives crews a practical overhead cable management support point directly beneath timber framing.

Hook and Hanger supplies the W600CZP eye lag screw in jobsite quantities for new builds and ceiling retrofits. Its long shank positions the eyelet below the timber to clear insulation and minor obstructions. The electroplated zinc finish is free of oily residue, helping keep hands, pole-tool sockets, wire, and finished surfaces clean during handling.

Establishing Stable Wiring Paths with the W600CZP Fastener Series

The W600CZP eye lag screw is intended to create a vertical tension point for ceiling wire or jack chain connected to wood. The open eyelet allows installers to pass or pre-tie the support material before driving the fastener. This setup can be used when laying out wire drops for a suspended ceiling system, provided the installation follows the approved design, load requirements, and local code.

Hook and Hanger stocks this item where wood framing is the fastening substrate. It is not intended for compression, side loading, or outdoor exposure. Confirm that the joist, blocking, or other timber member has adequate capacity for the planned suspension load. Fastener spacing, embedment, wire configuration, and ceiling support design must be determined for the project.

The RoHS-compliant zinc finish, American Recovery Act compliance, and ISO 9001-approved factory listing can support submittal documentation. Contractors must still confirm project procurement and inspection requirements.

Sizing and Technical Specifications for the W600CZP Eye Lag Screw Series

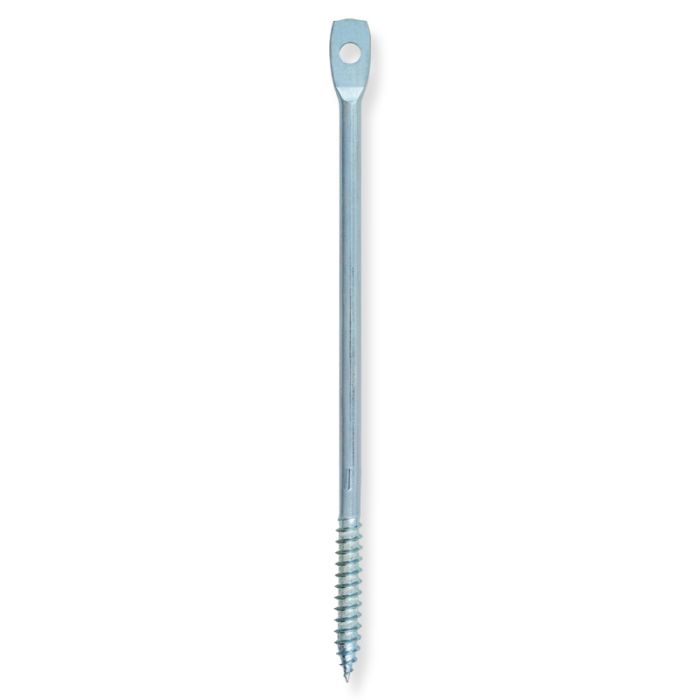

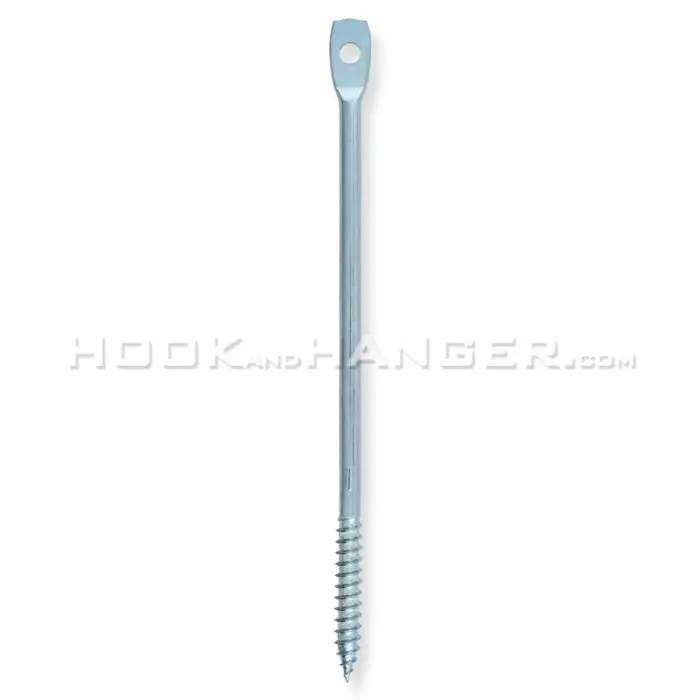

The W600CZP eye lag screw measures six inches overall. It uses a 1/4-inch nominal Type A wood thread, with 1-1/2 inches of thread at the tip. The extended unthreaded shank keeps the eyelet below the wood face, leaving room to connect support wire or jack chain without crowding the connection against the framing.

The integrated open eyelet is intended for ceiling wire or jack-chain attachment. It may also permit the wire to be pre-tied at floor level before driving when the selected pole tool supports that method. We stock 100-piece boxes and master cartons containing 10 boxes, for a total of 1,000 pieces.

Standard Installation Procedures and Structural Integration Workflows

Identify sound structural wood, confirm attachment locations, and check for concealed services before starting. The W600CZP eye lag screw should be driven into a verified wood member, not thin finish material or unsupported sheathing. Mark the attachment pattern in advance so the wire drops align with the ceiling grid and specified suspension layout.

For work from floor level, place the eyelet in a compatible Lagmaster® pole-tool socket and connect it to the required extension poles. Drive the fastener straight into the timber while maintaining control of the tool. The eyelet must not be used as a turning point for side-loaded hardware. After driving, check eyelet orientation and make sure the support wire or chain is free from sharp bends, abrasion, and contact with unsuitable edges.

This method can limit ladder repositioning across larger ceiling areas. The W600CZP eye lag screw is one option within our wider eye lag screws range for wood-supported layouts. Select the screw length and configuration according to the framing depth and approved installation requirements.

Applications and Compatible Overhead Hardware

The most direct application is creating ceiling-wire anchor points below wood joists. The eyelet accommodates a connection method specified for a suspended ceiling assembly and keeps that connection below the timber face. It may also support an appropriate jack-chain connection for indoor tension work.

Wood fastening is not interchangeable with steel framing attachments. Where the structure is a steel beam or bar joist, use correct beam clamps or another approved method. For purlin-supported installations, assess suitable purlin clips. In low-voltage pathways, lag-screw locations may be coordinated with j-hooks, while the complete pathway must meet applicable support, separation, and access requirements.

Hook and Hanger supplies equipment for different attachment conditions. Angle clips can support assemblies requiring a formed connection, while threaded rod fasteners apply to designs based on rod-hung support. Concrete and masonry require a specified overhead drilling and anchoring method rather than this wood-threaded screw.

Advantages of Optimizing Overhead Wire Arrays with W600CZP Eye Lag Screw

The W600CZP eye lag screw provides a clear, accessible eyelet below a wood structure for a tension-supported wire or chain connection. Its six-inch profile provides clearance below the framing, and its Type A thread is configured for wood penetration. The clean zinc surface helps prevent oily material transfer during pre-tying and pole-tool installation.

Commercial pack quantities help purchasing teams stage inventory by crew area or ceiling zone. A 100-piece box supports smaller runs, while the 1,000-piece master carton supports larger layouts. We supply this fastener for contractors and purchasing agents who need a consistent wood-attachment component for planned overhead support work.

Get All Your Installation Supplies under One Roof with Hook and Hanger

Hook and Hanger provides practical hardware for varied framing conditions. Alongside the W600CZP eye lag screw, we offer related attachments, pole tools, and support components so teams can source compatible installation equipment from one supplier. Review project specifications before ordering, especially where load conditions, framing material, or local code requirements vary.

Secure Your Commercial Hardware Inventory Directly From Hook and Hanger

Choosing Hook and Hanger gives your crew access to dependable overhead support parts for indoor, tension-specific installations. Select the appropriate quantity, confirm the wood framing condition, and use the correct pole-tool setup to plan a controlled installation process for ceiling wire or jack-chain support.

To order W600CZP eye lag screw inventory or explore our full selection of angle clips, beam clamps, and threaded rod fasteners, visit hookandhanger.com. For technical support, bulk-order information, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
