FM58 - Knock-on Beam Clamp for Flanges 5/16" - 1/2" Thick by Doc's Industries Inc.

When you are fastening to heavy-gauge structural steel, each hole costs time, labor, and tooling. Drilling through 5/16" to 1/2" I-beam flanges overhead is slow, hard on bits, and physically demanding. It can also force magnetic drills, scaffold repositioning, and added safety exposure. The FM58 was built for that problem: a heavy-duty knock-on beam clamp that secures attachment points to thick steel without drilling.

We supply this clamp for contractors who need speed without gambling on holding strength. Hook and Hanger understands that commercial installers work above ceiling grids, around active trades, and against tight schedules. This knock-on beam clamp gives you a hammer-on solution for thick flanges where drilling is cost-prohibitive.

Heavy-Duty Substructure Attachments with the FM58 Knock-on Beam Clamp

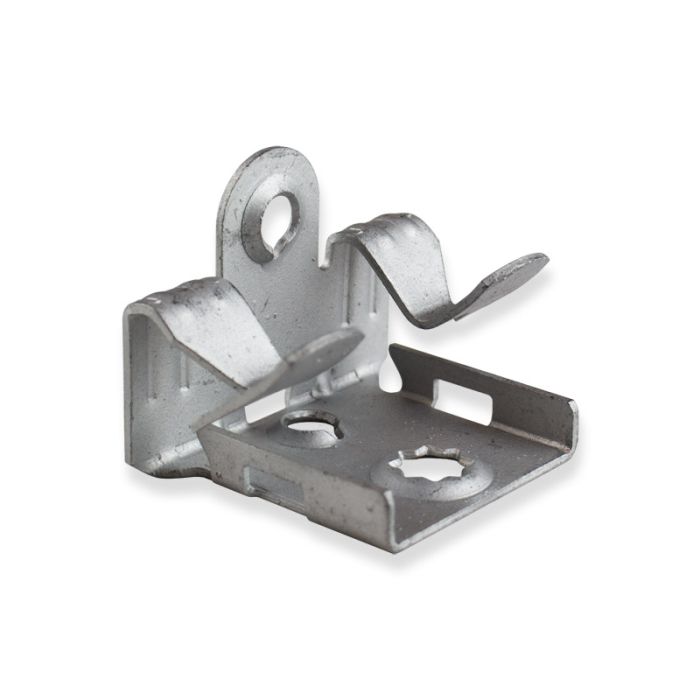

The FM58 is manufactured from high-tensile spring steel, giving it the stored clamping force needed for thick structural steel profiles. Instead of relying on a drilled hole or a set screw biting from one direction, the clip uses spring-loaded geometry and aggressive teeth to grip the flange securely. A standard hammer blow sets the clamp and locks the teeth onto the beam edge.

That grip matters where vibration, equipment movement, and air handling systems can challenge weaker hardware. Set-screw models can loosen when poorly torqued, installed at a bad angle, or exposed to repeated vibration. This knock-on beam clamp avoids that weak point by using mechanical bite and spring tension together. For installers working across beam clamps, the result is a faster field attachment.

Common Applications for the FM58 Knock-on Beam Clamp

The FM58 is useful anywhere a contractor needs a reliable attachment point from a beam flange. Electrical crews can drop threaded assemblies for conduit supports, junction box support points, or bridle ring pathways. Low-voltage and data teams can organize dense pathway runs above ceilings where cable bundles need clean support.

Mechanical contractors also benefit when supporting service runs, instrument tubing, or overhead coordination hardware around framing zones. In commercial interiors, this knock-on beam clamp can support field layouts for cable management where access is limited and clean overhead routing matters. Hook and Hanger supplies it as a heavy-gauge companion for thick iron.

FM58 Knock-on Beam Clamp Threaded Impressions and Heavy Specs

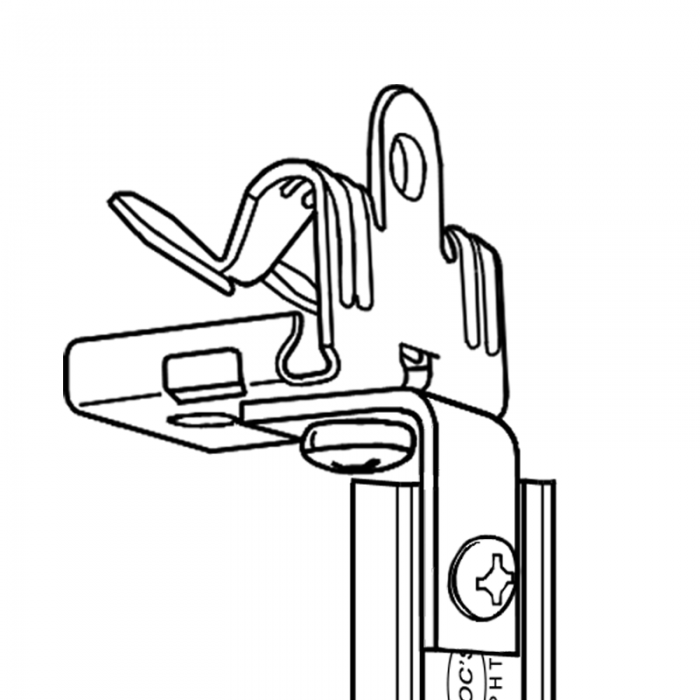

The FM58 gives you two distinct 1/4-20 threaded impressions: one on the side and one on the bottom. That dual-position design gives your crew more alignment options when working around conduit elevations, threaded rod drops, cable pathways, and coordination conflicts above the ceiling line. Instead of forcing one attachment orientation, the clip gives installers field flexibility without extra specialty components.

Its flange range is the key distinction. The clamp is made for 5/16" to 1/2" steel flanges, making it a practical choice for heavier structural boundaries where smaller clips are not appropriate. This is not a light flange accessory forced into a heavy-duty role; it is a purpose-built knock-on beam clamp for thicker beam edges and demanding commercial installation environments. When paired with appropriate threaded rod fasteners, it helps create a clean connection point for overhead support assemblies.

Spring Steel Engineering and Geomet Anti-Corrosion Protection

The FM58 uses spring-steel construction because the material needs to maintain tension after the clip is driven onto the flange. That tension helps the clamp continue gripping under normal load conditions, vibration, and movement. The geometry is designed so the steel body works with the teeth, creating a secure mechanical hold after installation.

The clamp also includes eco-friendly +3CR Geomet plating for corrosion protection in demanding job site environments. Geomet coating provides a protective barrier without relying on traditional hexavalent chromium processes, supporting a cleaner compliance profile. The clip is fully RoHS Compliant, giving contractors and specifiers confidence when project documentation requires responsible material selection. For crews involved in overhead drilling & anchoring, the benefit is straightforward: you can often eliminate the drilling step while still using protected, trade-grade support hardware.

Key Advantages of the FM58 Knock-on Beam Clamp

• Instant, hammer-on installation that bypasses costly labor hours. The FM58 installs with a standard hammer blow, helping crews move faster across repetitive beam attachment points without setting up drills, cords, cutting fluid, or magnetic drill equipment.

• Dual 1/4-20 attachment points for flexible field alignment on thick iron. Side and bottom threaded impressions allow your team to adapt the attachment orientation to real field conditions instead of rebuilding layouts around one fixed connection point.

• Complete elimination of structural steel drilling, saving expensive tooling and bits. This knock-on beam clamp helps avoid burned-out bits, overheated tooling, slow penetration rates, and the fatigue that comes from drilling heavy steel overhead.

• CULUS Listed for verified mechanical performance and strict building code compliance. The listing supports contractor confidence, inspector review, and project documentation where approved hardware is required.

Improving Job Site Safety with the FM58 Knock-on Beam Clamp

Drilling overhead exposes workers to tool weight, body strain, vibration, falling debris, bit heat, cord placement, and ladder or scaffold instability. By eliminating drilling or welding on the beam, the FM58 helps reduce hot-work hazards, spark control concerns, and the extra permits that can slow progress.

This knock-on beam clamp also reduces the time installers spend exposed to fall risks. A hammer-on installation is simpler, faster, and easier to repeat than drilling into thick steel above shoulder height. For contractors protecting safety metrics while maintaining production speed, Hook and Hanger views the clamp as a smart way to remove unnecessary risk from the attachment process.

Secure Your FM58 Beam Clamps Directly From Us

Partnering directly with Hook and Hanger gives your crew commercial-grade hardware from a supplier that understands project logistics, tight timelines, and zero-fail material expectations. Our team supports phased deliveries, submittal needs, and field adjustments for contractors working in demanding commercial environments.

To purchase your FM58 inventory or to explore our complete selection of Beam Clamps, Threaded Rod Fasteners, and Purlin Clips, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
