316 Stainless Steel - Machine Thread Bridle Ring ¼"-20 x 2" - BR4T200SS by Doc's Industries Inc.

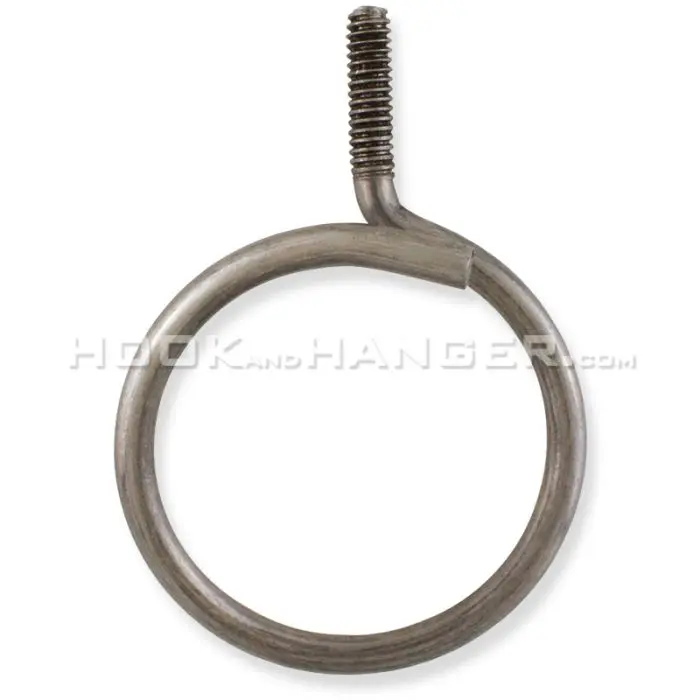

The BR4T200SS bridle ring is a 2-inch cable-support loop with an integrated 1/4"-20 machine thread for low-voltage pathway work. Its 316 stainless steel construction provides a corrosion-resistant attachment point where moisture, salt air, or regular washdown can shorten the service life of standard plated hardware. The component is RoHS-compliant, supports eco-conscious material requirements, and provides a defined loop for organized cable routing.

Hook and Hanger supplies this threaded ring for contractors and purchasing teams that need durable support points above ceilings, along structural members, and around service infrastructure. Used as part of a planned cable management layout, the BR4T200SS bridle ring helps keep voice, signal, and control conductors in a consistent pathway.

What Is the BR4T200SS Bridle Ring Used For?

The BR4T200SS bridle ring guides and supports low-voltage cable bundles from a secure threaded connection. Its 1/4"-20 machine thread installs into compatible support hardware, creating a single-piece cable pathway component without a separate loop, nut, or clip. The 2-inch opening provides room for communication, security, access-control, paging, audiovisual, and similar control cables. It must not be used as a substitute for a properly engineered support system.

This configuration is useful above a suspended ceiling, where low-voltage cable must follow an orderly pathway that remains separate from the ceiling grid and other building services. It can also support routes across open structural areas when attachment spacing, cable weight, bend radius, and applicable requirements are reviewed before installation. The open loop lets installers place cable during the pull and inspect the run afterward without disassembling a multi-piece fitting.

For routes that change direction or pass through framing areas, the BR4T200SS bridle ring can be coordinated with j-hooks and other listed pathway components. This allows the support type to match each section of the route. Hook and Hanger stocks related overhead hardware for matching the cable pathway to the building structure and access conditions.

What Are the BR4T200SS Bridle Ring Specifications?

• Model identifier: BR4T200SS bridle ring.

• Loop diameter: 2 inches for low-voltage voice, signal, and control cable runs.

• Thread profile: 1/4"-20 machine thread for compatible threaded or structural attachment hardware.

• Material: 316 stainless steel for improved corrosion resistance in wet, coastal, chemical-exposure, and washdown environments.

• Cable pathway format: Open ring design for cable placement and visual inspection.

• Compliance status: RoHS-compliant material configuration for restricted-substance requirements.

• Installation role: A cable-support accessory; final installation must follow the project design, equipment instructions, and applicable code.

How Does the BR4T200SS Bridle Ring Connect to Other Fasteners?

The threaded shank on the BR4T200SS bridle ring spins into compatible 1/4"-20 receiving points. Select the attachment method based on the member type, flange thickness, cable support spacing, and project engineering requirements. Common system arrangements include:

• Beam infrastructure: Use HOKFMP, SSBC, and PBC beam attachments for structural members or flanges up to 3/4 inch thick. These attachments can establish a threaded support point without field drilling when suitable for the steel member.

• Drop-wire configurations: Connect through Bat Wing clips where the system requires structural drop-wire attachment. Confirm the clip, wire, and ring arrangement before loading the pathway.

• Steel framing transitions: Coordinate with purlin clips or angle clips beneath purlins, joists, angles, or other accessible structural shapes. Match each attachment to site dimensions.

• Wood-framing locations: Use compatible eye lag screws at suitable wood framing where the attachment point is designed for the installation.

• Threaded support assemblies: Pair with correctly sized threaded rod fasteners when rod-based suspension provides the required elevation.

• Elevated installation access: Plan with appropriate overhead drilling and anchoring equipment where drilling is permitted, and use compatible extension poles when the work method and height require remote installation tools.

Why Use a 316 Stainless Steel Bridle Ring on Demanding Jobsites?

Zinc-plated hardware can lose its protective finish after repeated exposure to humidity, condensation, salt-laden air, cleaning chemicals, or washdown. Corrosion can seize threads, degrade surfaces, and make future changes to the cable run more difficult. The BR4T200SS bridle ring uses 316 stainless steel as a more suitable material option where corrosion resistance is part of the installation decision.

The material is particularly relevant in food-processing support areas, parking structures, coastal facilities, exterior-covered service zones, water-treatment locations, and buildings where surrounding surfaces are washed regularly. It is not a substitute for reviewing environmental, chemical, loading, and code requirements, but it is better suited to demanding exposure conditions than general-purpose plated steel.

The BR4T200SS bridle ring also supports efficient field handling. Its integrated machine thread and cable loop reduce the pieces installers need to sort and assemble at height. The one-piece format can simplify staging and keep support points consistent across a route. Because the loop remains open, cable can be installed or adjusted with less disruption to nearby conductors, provided work follows project requirements.

For purchasing teams, standardized threaded hardware can simplify material planning across repeat installations. We supply the BR4T200SS bridle ring for individual job requirements and bulk distribution needs, with nationwide shipping options for contractors coordinating multiple sites. Hook and Hanger can help identify complementary structural attachments and pathway hardware for a complete support arrangement.

Order the BR4T200SS Bridle Ring From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile 316 stainless steel structure, and pre-cut machine thread compatibility of this specific loop into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your BR4T200SS bridle ring inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk-order assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
