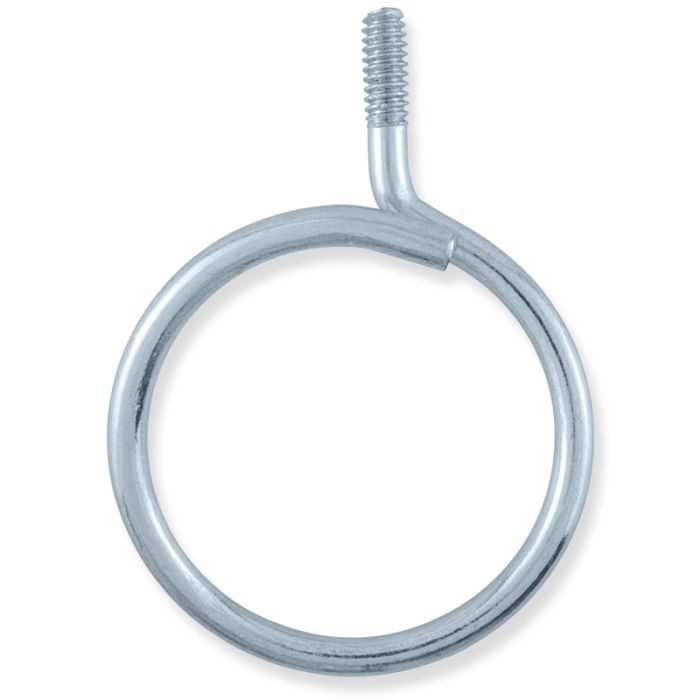

Machine Thread Bridle Ring ¼"-20 x 2" - BR4T200 by Doc's Industries Inc.

The BR4T200 bridle ring is a 2-inch cable support loop made from zinc-plated mild carbon steel with an integrated 1/4"-20 machine thread. It gives low-voltage installers a direct threaded attachment point for routing voice, signal, and control cable above commercial interiors. Hook and Hanger supplies this overhead component for organized cable management layouts where bundles need a defined pathway.

Its open loop guides cable along a planned route while allowing access for inspection and later changes. The zinc-plated steel construction provides basic protection in typical interior commercial conditions, while its RoHS-compliant material specification supports projects with environmental material requirements. We stock the BR4T200 bridle ring for crews that need a simple threaded cable-support component for compatible overhead attachments and drop-wire assemblies.

What Is the BR4T200 Bridle Ring Used For?

The BR4T200 bridle ring establishes an open, supported pathway for low-voltage cable runs. Its 1/4"-20 machine thread turns into a compatible attachment, allowing the ring to hang from a structural support point or approved suspension assembly. The 2-inch loop can guide voice communication cable, control wire, security wiring, data cable, and other pathway conductors that need to remain organized above finished spaces.

It is particularly useful above a suspended ceiling, where cables must be routed independently from ceiling-grid components and other building systems. The open-ring profile makes it practical to place cable into the pathway during installation, then make future changes without dismantling a closed raceway. The ring can form one point within a larger pathway sequence that also includes j-hooks and other approved cable pathway hardware.

The BR4T200 bridle ring helps reduce unmanaged sag between support points by providing a repeatable attachment location. It does not replace the required cable-support design, drawings, instructions, or support spacing. It is the threaded loop component within a planned overhead pathway system.

What Are the BR4T200 Bridle Ring Specifications?

Confirm the thread type, attachment method, cable-fill limits, and required support spacing before installation.

• Ring diameter: 2 inches, providing an open cable-routing loop for specified low-voltage bundles.

• Machine thread: 1/4"-20 integrated thread for compatible overhead fasteners and attachment hardware.

• Material: Mild carbon steel for rigid support use in interior commercial environments.

• Finish: Zinc-plated surface for basic atmospheric corrosion protection.

• Compliance status: RoHS-compliant material specification.

• Product type: Open-loop, machine-thread cable support hardware for voice, signal, and control pathways.

How Does the BR4T200 Bridle Ring Connect to Other Fasteners?

The machine-threaded end lets the BR4T200 bridle ring connect directly to an appropriate compatible attachment rather than requiring a separate nut-and-bolt assembly at the loop. This reduces the number of pieces handled at elevation. Hook and Hanger supplies related hardware for several structural conditions.

• HOKFMP, SSBC, and PBC beam attachments: Compatible configurations for steel members up to 3/4 inch thick, subject to the selected component instructions and installation design.

• Bat Wing clips: These can provide a structural drop-wire attachment point where the pathway descends from an approved overhead wire system.

• Beam-mounted assemblies: beam clamps may provide the supporting connection on suitable structural steel when flange range, thread compatibility, loading, and installation instructions match the application.

• Purlin and joist locations: Specified purlin clips can establish an attachment point on compatible structural members, positioning the machine-threaded loop beneath the support surface.

• Wood framing or blocking: Compatible eye lag screws may be selected for approved wood attachment points when the screw size, embedment, and substrate condition are verified.

• Framing transitions: Suitable angle clips can create an attachment position where framing geometry needs an offset or side-mounted support point.

• Suspension systems: Other compatible threaded rod fasteners and approved drop-wire hardware may be used for vertically supported routes.

Before making any connection, verify attachment instructions, structural member condition, thread engagement, and cable pathway load. The BR4T200 bridle ring is intended for specified low-voltage cable pathways, not piping, conduit, tray systems, or loads beyond its approved application.

Why Use a Zinc-Plated Steel Bridle Ring on Commercial Jobsites?

Zinc-plated mild carbon steel combines a rigid steel loop with a protective surface layer suited to ordinary interior atmospheric exposure. It is not for severe corrosion, chemical exposure, or exterior weathering. Where those conditions exist, use hardware with the required material and corrosion-resistance properties.

The open-loop form keeps a cable route accessible. Installers can place cable into the ring, maintain a visible pathway, and make controlled additions later when the support design permits. This is useful during tenant improvements and communications or security-system changes. We offer the BR4T200 bridle ring as a direct component for these organized pathway installations.

A machine-thread connection can support efficient assembly at elevation. Crews can prepare approved attachment points using the correct overhead drilling and anchoring method for the substrate, then thread the loop into place. For high mounting points, compatible extension poles and installation tools may help technicians position selected hardware while following safety instructions and site access procedures.

For purchasing teams, the standardized 2-inch ring and 1/4"-20 thread simplify material identification across repeated interior build-outs. Hook and Hanger maintains nationwide distribution for contractors and purchasing agents requiring consistent overhead support hardware at active jobsites. Confirm the required finish, attachment type, cable quantity, and installation environment before ordering.

Order the BR4T200 Bridle Ring From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable overhead support parts suited to specified, code-compliant pathway designs. By integrating the exact engineering, durable steel structure, and pre-cut machine thread compatibility of this specific loop into your project plans, you support an efficient installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase BR4T200 bridle ring inventory or explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk ordering assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
