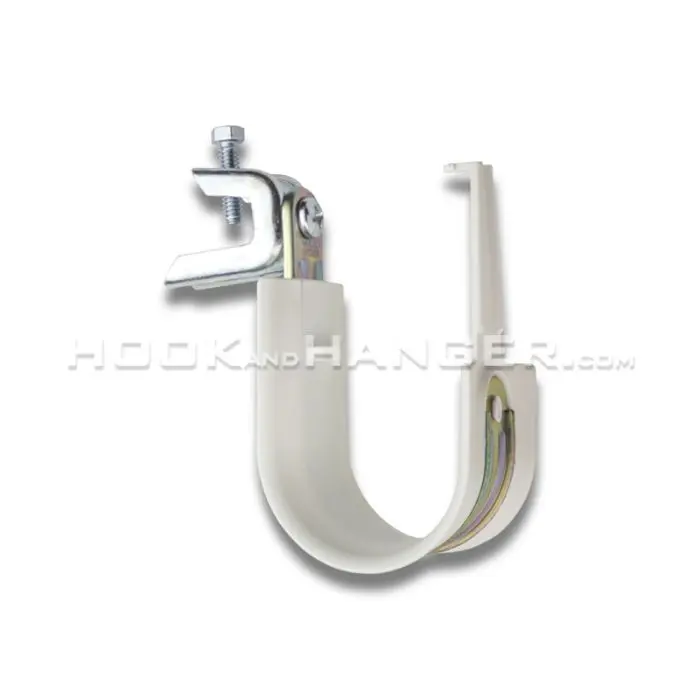

HPHPBC Series J-Hook - Composite Wide Base Hook with screw-on steel press beam clamp for flanges up to 1/2" thick by Doc's Industries Inc.

The HPHPBC cable support combines a slick, burr-free, 2-inch-wide plastic base with a high-strength metal backbone and a pre-assembled beam clamp attachment. Hook and Hanger supplies this hybrid pathway hardware for commercial cable management where data bundles must remain supported without resting on narrow steel edges. The components are designed for Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic lines, pairing a wide support base with a heavy-duty structural anchor. They are cULus listed and RoHS compliant.

Our HPHPBC cable support hardware establishes organized overhead routes from structural steel without adding a separate attachment assembly at each location. We stock sizes for smaller branch routes and larger bundle runs, and the smooth composite contact surface helps protect cable jackets during placement. The pre-assembled clamp gives the installer one structural attachment point and one cable support body in the same assembly.

What Is the HPHPBC Cable Support Used For?

An HPHPBC cable support creates a controlled overhead pathway for low-voltage communications cabling in commercial interiors. It supports cable bundles below approved building structure while separating them from rough edges, sharp supports, and crowded ceiling components. Where open pathways are required instead of conduit, these j-hooks keep the route accessible.

The integrated snap-lock retainer latch closes after the bundle is placed in the support. This replaces loose wire loops, cable ties, and hook-and-loop wraps that take extra time to install and remove at ceiling height. The latch holds the bundle within the support while preserving access for approved changes. Each HPHPBC cable support provides an average bend radius of 3.57 inches, allowing communication lines to follow the pathway without a tight directional turn. Maintaining that radius helps reduce physical strain and limits signal issues that can result from poor routing geometry, including crosstalk and performance loss in high-speed copper or fiber runs.

What Are the HPHPBC Cable Support Specifications?

The HPHPBC cable support is available in four support diameters. Capacity figures use a conservative 70% fill rate and include a 3-to-1 safety factor for load tolerances. Confirm the selected size against cable outside diameter, bundle makeup, pathway spacing, and code requirements before installation.

• HPH16PBC: 1.07 sq. in. area; 1-inch diameter; capacity for 20 Cat 5e, 15 Cat 6, or 10 Cat 6A cables; UL load rating of 20 lbs. (88.96 N); package quantity of 25; package weight of 6 lbs.

• HPH32PBC: 3.97 sq. in. area; 2-inch diameter; capacity for 90 Cat 5e, 60 Cat 6, or 35 Cat 6A cables; UL load rating of 17 lbs. (75.62 N); package quantity of 25; package weight of 7 lbs.

• HPH48PBC: 9.26 sq. in. area; 3-inch diameter; capacity for 200 Cat 5e, 150 Cat 6, or 80 Cat 6A cables; UL load rating of 20 lbs. (88.96 N); package quantity of 25; package weight of 12 lbs.

• HPH64PBC: 15.48 sq. in. area; 4-inch diameter; capacity for 330 Cat 5e, 220 Cat 6, or 140 Cat 6A cables; UL load rating of 17 lbs. (75.62 N); package quantity of 25; package weight of 14 lbs.

How Does the HPHPBC Cable Support Attach to Structure?

The metal backbone of each HPHPBC cable support is supplied with a heavy-duty beam clamp fastener already assembled. It is intended for direct attachment to approved structural steel frameworks, beams, flanges, and joists. The arrangement keeps the cable support and structural attachment aligned during installation, reducing handling steps during elevated work.

• Position the clamp on the approved structural member and secure it according to project requirements and applicable installation instructions. The clamp locks to steel without drilling or welding.

• Use the support only on a structure reviewed for the intended installation. The published load rating does not replace a structural review, spacing plan, or cable-weight calculation for the completed route.

• The beam clamp assembly itself does not require drilling. Where other portions of a pathway call for fastening into approved substrates, coordinate those activities with the appropriate overhead drilling and anchoring procedures.

• Hook and Hanger also supplies beam clamps and angle clips for projects that specify different structural attachment approaches. For elevated work, our extension poles can support approved fastening tasks where direct hand access is limited.

Why Use Hybrid J-Hooks in Plenum Spaces?

The hybrid construction gives the cable bundle a smooth, wide plastic contact surface while the metal backbone carries the structural connection to the beam clamp. This is useful above a suspended ceiling where pathways may pass through plenum air-handling spaces and sensitive cable jackets need separation from unfinished steel. The plastic components are plenum-rated, and the system is TIA compliant. Installers should still verify project fire, electrical, building, and air-handling requirements before selecting any pathway component.

Color options in red, blue, and black allow crews to identify circuits, systems, or work phases more quickly during installation and service. That visual control can reduce errors when multiple network types share the same ceiling zone. We offer bulk shipping support for staged commercial work, and Hook and Hanger coordinates nationwide distribution. Select the HPHPBC cable support diameter according to planned fill, route geometry, cable type, and support spacing rather than choosing a larger size without a pathway plan.

Order HPHPBC Cable Supports From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed for demanding jobsites. By integrating the documented engineering, high-tensile structure, and hybrid material design of this support system into your project plans, you can establish an efficient installation process backed by a practical hardware team.

To purchase HPHPBC cable support inventory or explore our selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk-order requirements, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
