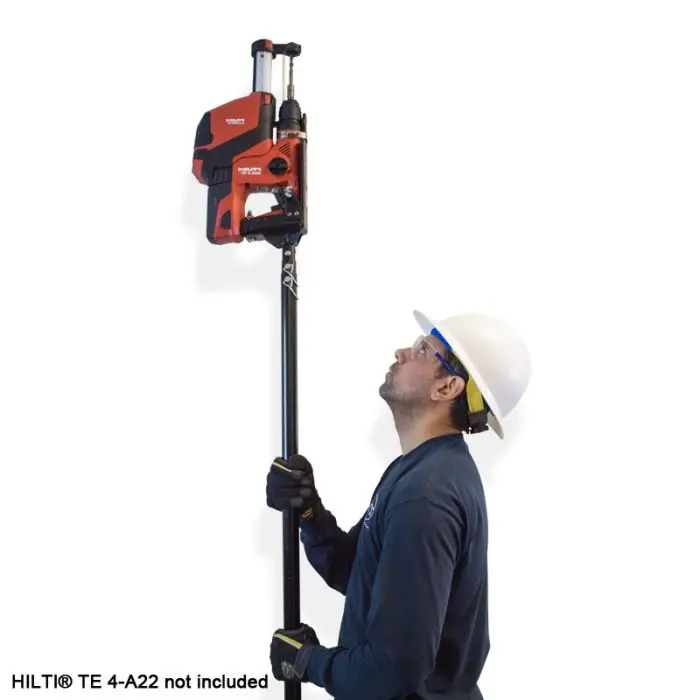

Overhead Drill Machine ODM Generation 2 - The Hammer Drill Extension Pole

Compatible Drill Models:

BOSCH® 11250VSRD Boschhammer w/ Microfilter System

BOSCH® RHH181-01 Brushless Rotary Hammer Kit with Chisel Function

BOSCH® GBH18V-26 Bulldog™

BOSCH® 11255VSR Bulldog Xtreme

BOSCH® 11258VSR - SDS Rotary Hammer Drill

DEWALT® D25223k SDS Rotary Hammer

DEWALT® D25023K

DEWALT® D25023 D-Handle

DEWALT® DCH273P2 20V MAX* XR Brushless Lithium Ion 3 mode SDS

DEWALT® DCH213L2 20V MAX* Lithium Ion 3 mode SDS

DEWALT® DCH133B Cordless D-Handle

HILTI® TE-2 Pistol Grip

HILTI® TE-7 Pistol Grip

HILTI® TE-7C L-Shape

HILTI® TE 4-A18 Cordless L-Shape

HILTI® TE 4-A22 Cordless L-Shape

HILTI® TE 4-A22 w/ Hepa Vac.

HILTI® TE 6-22

HITACHI® DH24PF3 D-Handle

MAKITA® HR2475X4

MAKITA®18V LXT Lithium-Ion BHR241Z

MAKITA® XRH01Z LXT® Lithium-Ion Brushless Rotary Hammer w/HEPA Vac.

MAKITA® XRH01 LXT® Lithium-Ion Brushless Rotary Hammer

MILWAUKEE® M12 Fuel Model# 2416-21XC

MILWAUKEE® M18 FUEL 2712-20 Cordless L-shape

MILWAUKEE® M18 FUEL 2713-20 Cordless D-Handle

MILWAUKEE® M18 FUEL 2912-20 Cordless L-shape

COLLAPSED LENGTH: 7' 3"

EXTENDED LENGTH: 13' 6"

STAGES: 3

SHIPPING WEIGHT: 15 LBS.

• Universal saddle fits most "D" handle rotary hammer drills including: Dewalt, Hitachi, Makita, Milwaukee & Bosh Bulldog
• Perfect for applications that are unfit for scissor lifts. Such as in between pre-installed ceiling grid, pipes and cables or above stairs.
• Improves safety by keeping your employees on the ground
• Consists of three sections and is recommended for ceilings up to 13'
• Black anodized aircraft quality aluminum
• Hands free trigger system allows you to grip the pole with both hands increasing stability and safety
• The ODM's ceiling probe design automatically turns your rotary hammer on and off when upward pressure is applied and removed
• Make fine height adjustments in increments as small as 1"
• Use the removable ODM Pedal to make drilling easier on your arms and back, perfect for big jobs.
• Made in the USA

Seismic Bracing Installation Instructions

Required tools and fasteners: ODM, ODM375, ODM916, TE-12, Torque Wrench, 3/8" Wedge Anchor, HOCL-45 Angle Clip, ceiling wire.

Step 1. Drill a 3/8" hole into the concrete ceiling using an ODM (Overhead Drill Machine) fitted with an ODM375 3/8"x 3.325" HALT bit.

Step 2. Remove the ODM375 HALT bit and insert an ODM916 SDS Plus 9/16" socket adapter, set the hammer drill to hammer only.

Step 3. Insert a 3/8" wedge anchor with a HOCL-45 angle clip prettied to ceiling wire into the ODM916 socket adapter.

Step 4. Raise the ODM up to the hole and insert the wedge anchor using the hammer function of the hammer drill.

Step 5. Use a TE-12 extension pole equipped with a LMP 9/16 Hex Plug to tighten the 9/16" nut on the wedge anchor to the appropriate torque using a torque wrench (Usually 25 ft/lbs).

1/4" I-Pin Anchor Installation Instructions

Required tools and fasteners: ODM, ODM-250, ODM I-Wedge, ODM-IP

Step 1. Drill a 1/4" hole in the concrete ceiling using an ODM (Overhead Drill Machine) and an ODM-250 1/4" x 1.25" HALT BIT.

Step 2. Remove the ODM-250 HALT bit and insert an ODM I-Wedge SDS Plus installation tool into your hammer drill, set the hammer drill to hammer only.

Step 3. Insert a pre-tied ODM-IP 1/4" I-Pin anchor into the slot of the ODM I-Wedge installation tool and hammer the anchor into the hole.

Step 4. Pull down to set the anchor.

NOTE: BOSCH®, DEWALT®, HILTI®, HITACHI®, MAKITA® & MILWAUKEE® are all registered trademarks and are in no way affiliated with Doc's® Industries, Inc. or Hookandhanger.com
