Wood Screw Bridle Ring - 2" - BR4T200WS by Doc's Industries Inc.

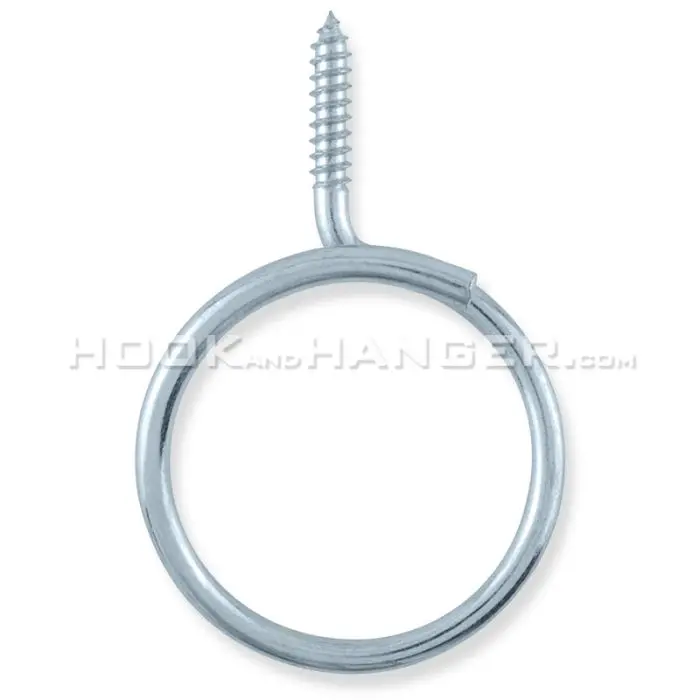

The BR4T200WS bridle ring is a 2-inch open cable loop with an integrated 1/4"-20 wood screw thread for direct attachment to structural timber and suitable wood backing. Hook and Hanger supplies this zinc-plated mild carbon steel component for low-voltage pathways in wood-framed and heavy-timber commercial interiors. It provides a secure, repeatable support point for cable management layouts that keep voice, signal, and control cable runs clear of obstructions and off finished surfaces.

We stock the BR4T200WS bridle ring for contractors and purchasing teams that need a one-piece overhead support method rather than a multi-part mounting arrangement. Its zinc-plated finish provides basic corrosion resistance in normal indoor environments, while mild carbon steel provides the rigidity needed for routine cable support. RoHS-compliant status also supports restricted-substance specifications and environmentally responsible material requirements.

What Is the BR4T200WS Bridle Ring Used For?

The BR4T200WS bridle ring creates an open support point for low-voltage cable above ceilings, along wood joists, on timber beams, and across structural backing boards. Its 1/4"-20 wood screw thread drives into suitable wood after the installer prepares a pilot hole. Once installed, the 2-inch ring guides cable bundles without fully enclosing them, helping crews add, inspect, or remove cable when the pathway changes.

This method supports voice communications, security, access control, audiovisual, data, and building-control cabling where route organization matters. The BR4T200WS bridle ring can be spaced along a pathway to limit sag and maintain separation from other building services, subject to cable manufacturer requirements and applicable installation standards. Installers may combine ring supports with j-hooks or select eye lag screws where an eye-style attachment better suits the routing geometry.

What Are the BR4T200WS Bridle Ring Specifications?

We supply the BR4T200WS bridle ring with the following specifications for plan review, material takeoffs, and field coordination:

• Ring diameter: 2 inches for guiding low-voltage cable bundles through an open loop.

• Thread configuration: Integrated heavy-duty 1/4"-20 wood screw thread for direct engagement with structural timber or approved wood backing.

• Material: Mild carbon steel for a rigid support component.

• Finish: Zinc plating for basic protection against atmospheric corrosion in typical interior conditions.

• Compliance status: RoHS compliant for restricted-substance and environmentally responsible material requirements.

Confirm that the timber member or backing board is suitable for the expected cable load, and that cable weight, fill, spacing, and support intervals meet the job specifications. The BR4T200WS bridle ring guides cable; it does not replace engineered support hardware where loads exceed low-voltage pathway conditions.

How Does the BR4T200WS Bridle Ring Integrate Into Building Infrastructures?

Hook and Hanger recommends mapping the cable route before installing individual support points. This helps crews maintain bend radii and coordinate around lighting, ductwork, pipework, and other trades. Common configurations include:

• Wood-beam installation: Drill a correctly sized pilot hole in sound timber, then drive the shank with a compatible driver until the ring is stable and aligned with the cable route.

• Timber-backed ceiling drops: Install rings beneath a wood-backed suspended ceiling area when cable transitions into an accessible ceiling void or service zone.

• High-elevation work: Plan overhead drilling and anchoring before cable pulls. Use approved access equipment and appropriate extension poles where they suit the installation method and site safety controls.

• Mixed structural transitions: Use the ring on timber segments, then coordinate with purlin clips, angle clips, or beam clamps where the route transfers to steel purlins, angle members, or beam flanges.

• Suspended interfaces: Coordinate with threaded rod fasteners only where the specified support system and load requirements call for them.

These arrangements allow the BR4T200WS bridle ring to serve as one defined attachment point within a broader pathway plan. Each point should remain accessible for cable pulling, testing, inspection, and future moves, adds, or changes.

Why Use a Wood Screw Steel Bridle Ring on Commercial Jobsites?

A one-piece wood screw ring reduces the separate parts crews must handle on timber structures. The BR4T200WS bridle ring provides a direct connection into appropriate wood framing without a separate clamp body or mounting plate. With a pilot hole prepared, installers can use standard driver bits to position the ring efficiently and align the loop with the cable pathway.

Its open-loop form supports faster cable placement than a closed attachment point because installers can guide bundles into the ring without threading a connector around them. Zinc-plated mild carbon steel is suitable for normal interior commercial environments and provides basic atmospheric corrosion protection during storage, transport, and installation. Hook and Hanger supplies this item through nationwide shipping and bulk distribution channels, helping teams align material deliveries with phased installation schedules.

As with any overhead cable support, selection must match the cable type, bundle size, routing conditions, and job requirements. The BR4T200WS bridle ring should not be overloaded, modified, or used to support conduit, pipe, life-safety systems, or structural loads. Confirm each attachment point before installation and follow governing code, project specifications, and cable-system manufacturer guidance.

Order the BR4T200WS Bridle Ring From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, loop structure, and direct 1/4"-20 wood screw thread compatibility of this specific component into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your BR4T200WS bridle ring inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk-order assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
