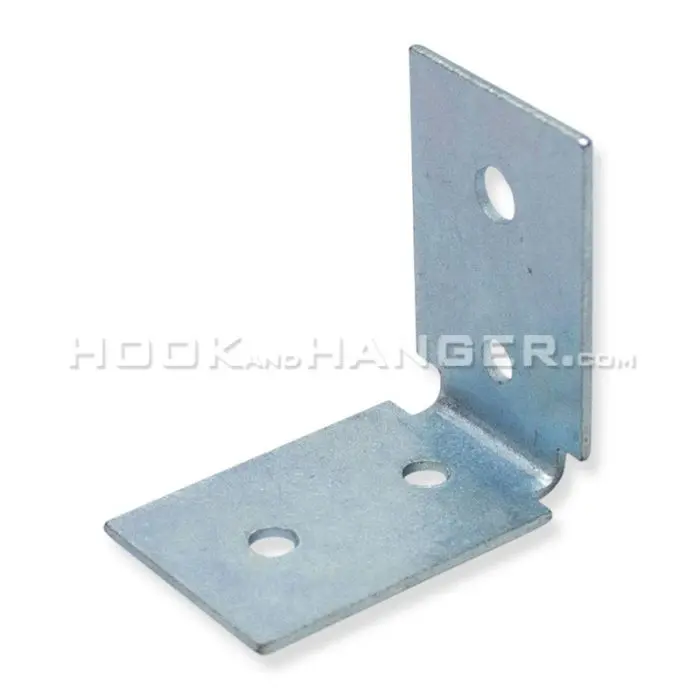

HOCL-4 90 Degree Angle Clip by Doc's Industries Inc.

Oversized brackets create avoidable problems in commercial interiors. When crews use heavy structural hardware for simple tie wires, low-voltage loops, or lightweight ceiling track work, the result is wasted material, crowded plenum space, and extra labor. Many also lack the small guide holes needed for fine-gauge wire control.

The HOCL-4 gives contractors a cleaner answer. We stock this compact, zinc-plated 90° attachment for light-duty fastening layouts where speed, consistency, and space control matter. Hook and Hanger supplies this specialized utility clip for ceiling, data, security, and secondary track applications that do not require bulky structural brackets.

As part of our Angle Clips inventory, this 90-degree angle clip uses a slim 7/8" profile, small-diameter holes, and a corner relief notch. That combination gives installers a neat tie-off point without loading the overhead space with excess steel.

Industrial Overhead Fastening with the HOCL-4 90 Degree Angle Clip

Good field production starts with matching the hardware scale to the load requirement. A lightweight wire drop, data loop, or small track tie-off does not need the same bracket footprint as a structural rod support. When crews select the right 90-degree angle clip for the task, they reduce dead weight, improve spacing discipline, and keep each attachment point easier to inspect.

The HOCL-4 supports repeatable layouts because it is compact enough to stage in quantity and simple enough to position quickly. For overhead fixing into concrete, deck, or approved substrates, this product works naturally with Overhead Drilling & Anchoring workflows where small anchors, screws, rivets, or pins lock a utility clip in place.

Designed for Tight Spaces and Drop Rods

This clip has a low-profile 90° geometry for cramped ceiling pockets, narrow framing clusters, and secondary track junctions. Its corner relief notch at the bend is a practical field detail. Instead of forcing the clip to crowd the corner, the notch provides clearance so the bracket can sit cleanly against intersecting surfaces.

That relief profile helps reduce binding, snagging, and bowing inside channels or tight track conditions. For light wire ties, small rods, or alignment points connected to a Suspended Ceiling framework, the shape keeps the fastening point controlled without adding unnecessary bulk near the grid.

Hole Layout and Technical Specifications for the HOCL-4 90 Degree Angle Clip

Key physical benchmarks include:

• Core Material: Formed from durable carbon steel optimized for interior utility framing layouts, with a practical balance of rigidity, light weight, and handling efficiency.

• Streamlined Width Profile: Designed with a compact width of approximately 7/8" to slide into ultra-narrow plenums, ceiling cavities, and tight framing clusters.

• Small Fastener Openings: Features small mounting and alignment holes measuring approximately 1/8" in diameter, making the clip suited for fine wire ties, specialized pins, and light-gauge attachment points.

• Main Center Anchor Hole: Equipped with a primary anchor hole measuring approximately 3/16" in diameter to host small-diameter concrete pins, screws, or rivets where approved.

• Finish Protection: Protected with commercial zinc plating to help safeguard the steel against scratch wear, handling abrasion, and normal indoor humidity exposure.

• Packaging Data: Supplied in contractor boxes of 100 pieces, with a lightweight net box weight of just 3 lbs for transport across lifts, ladders, carts, and staging areas.

Common Uses for the HOCL-4 90 Degree Angle Clip

Acoustic ceiling installers can use it for suspending lightweight tile ceiling wires and secondary grid tracks. Low-voltage subcontractors can use the clip to guide data cables, security loops, alarm wire paths, and control cabling where the routing plan needs frequent tie points.

For broader Cable Management layouts, this 90-degree angle clip can act as a small utility anchor that keeps bundled paths organized without replacing primary support hardware. It can also support light decorative trim, retail sign tracks, and other non-structural interior components when the specification allows a compact bent clip.

Main Advantages of the HOCL-4 90 Degree Angle Clip on the Job

• Ultra-compact 7/8" profile: The narrow shape maximizes headspace and drops easily into restricted framing pathways.

• Precision 1/8" small holes: Small openings help reduce wire slipping and make fine-gauge suspension wires easier to loop and tie off.

• Built-in corner relief notch: The notch helps the bracket sit flush in corners without bowing out adjacent tracks.

• Lightweight 3 lbs box profile: The box weight reduces installer fatigue when crews move bulk hardware up ladders, lifts, and multi-floor staging areas.

Because the clip is light and easy to position, it can fit ground-based production methods using compatible Extension Poles and approved fastening tools. In larger cable routing plans, contractors may pair this clip with J-Hooks where primary cable support and secondary tie-off points need to work together.
