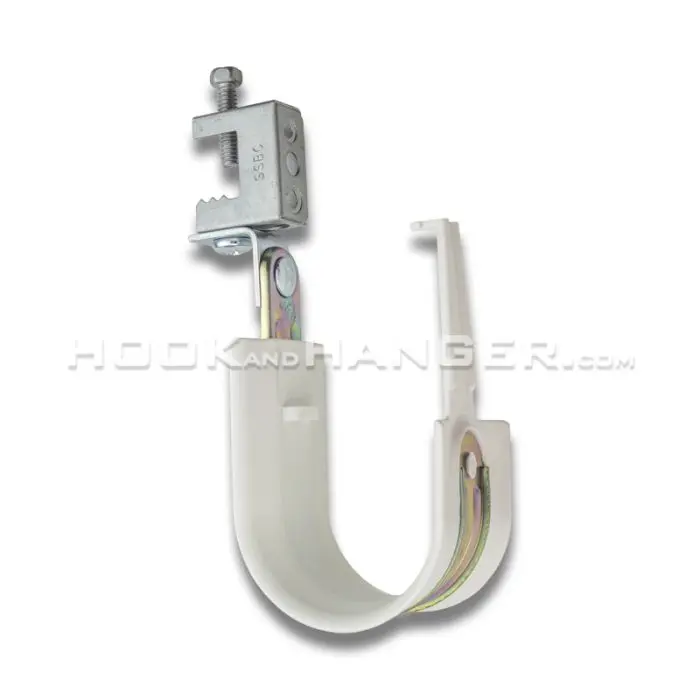

HPHACSSBC Series J-Hook - Composite Wide Base Hook with screw-on spring steel beam clamp for flanges up to 1/2" thick, swivels 360° by Doc's Industries Inc.

The HPHACSSBC cable support is a hybrid pathway component for high-speed low-voltage work where cable protection, clean routing, and overhead installation speed matter. Hook and Hanger stocks this hardware for contractors, foremen, and purchasing teams that need dependable cable management parts for data rooms.

Each unit combines a slick, burr-free plastic base with a high-strength metal backbone, giving crews a 2-inch-wide base and a heavy-duty structural anchor. The HPHACSSBC cable support is designed for Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic lines, with cULus listed, TIA compliant, RoHS compliant, and plenum-rated performance for air-handling spaces.

What Is the HPHACSSBC Cable Support Used For?

• The HPHACSSBC cable support routes and supports communication cabling above finished spaces, open ceilings, and low-voltage pathways where signal integrity matters.

• The 2-inch-wide molded plastic base provides a smooth bearing surface that helps prevent jacket abrasion, sharp-edge contact, and pressure points from narrow steel hooks.

• The metal backbone gives the assembly overhead rigidity while keeping the cable contact surface nonmetallic and burr-free.

• The snap-lock retainer latch secures bundles without separate wire loops, cable ties, or Velcro straps, while the 3.57-inch average bend radius helps reduce strain, compression, and signal degradation.

• Hook and Hanger supplies this product for datacom runs near suspended ceiling grids, mechanical zones, and commercial plenum pathways.

What Are the HPHACSSBC Cable Support Specifications?

• HPH16ACSSBC: 1.07 sq. in. area | 1-inch diameter | Capacity: 20 Cat 5e, 15 Cat 6, 10 Cat 6A | UL Load Rating: 20 lbs. (88.96 N) | Package Qty: 25 | Weight: 5 lbs.

• HPH32ACSSBC: 3.97 sq. in. area | 2-inch diameter | Capacity: 90 Cat 5e, 60 Cat 6, 35 Cat 6A | UL Load Rating: 20 lbs. (88.96 N) | Package Qty: 25 | Weight: 6 lbs.

• HPH48ACSSBC: 9.26 sq. in. area | 3-inch diameter | Capacity: 200 Cat 5e, 150 Cat 6, 80 Cat 6A | UL Load Rating: 20 lbs. (88.96 N) | Package Qty: 25 | Weight: 11 lbs.

• HPH64ACSSBC: 15.48 sq. in. area | 4-inch diameter | Capacity: 330 Cat 5e, 220 Cat 6, 140 Cat 6A | UL Load Rating: 20 lbs. (88.96 N) | Package Qty: 25 | Weight: 13 lbs.

• The HPHACSSBC cable support family is available in 1-inch, 2-inch, 3-inch, and 4-inch support diameters.

• Capacity calculations use a conservative 70% fill rate and include a 3-to-1 safety factor on load tolerances.

How Does the HPHACSSBC Cable Support Attach to Structure?

The HPHACSSBC cable support uses a metal backbone designed to assemble directly to Doc’s® attachments with a standard 1/4-inch-20 x 3/8-inch bolt and matching nyloc nut. This helps crews keep cable jackets away from rough edges while fastening to overhead hardware.

Hook and Hanger supplies mounting options for different field conditions. The HPHACSSBC cable support can secure to the structure with beam clamps or angle clips when the run must follow steel, framing, or complex building geometry. For crews that rely on overhead drilling and anchoring, our hardware line provides a flexible path that works with mechanical fastening plans.

The same installation may include threaded rod fasteners where the pathway must hang below a structural point. We offer related components so purchasing agents can source matched overhead parts while keeping installation methods organized.

Why Use Hybrid J-Hooks in Plenum Spaces?

Plenum spaces require hardware that supports routing while meeting air-handling safety requirements. The HPHACSSBC cable support uses plenum-rated plastic at the cable contact point, helping crews protect high-bandwidth lines in suspended ceiling pathways where data, HVAC, electrical, fire alarm, and security systems share overhead space.

The hybrid design also supports jobsite administration. Blue, red, and black color options help installers identify circuits, system types, or pathway purposes quickly. Hook and Hanger stocks these options for cable drops, corridor runs, and equipment-room connections.

We also supply related overhead support parts for project compatibility. Depending on the structure, a contractor may pair this system with purlin clips, j-hooks, extension poles, eye lag screws, beam clamps, angle clips, or other fastening hardware.

Because the product is assembled in the USA and designed around a wide molded base, the HPHACSSBC cable support is practical for datacom teams that need reliable cable support without improvised retainers. The snap-lock latch reduces field steps, while the metal backbone keeps the assembly aligned with structural support requirements. Hook and Hanger provides nationwide shipping for single-site builds, multi-phase projects, and repeat commercial installation programs.

Order HPHACSSBC Cable Supports From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced hybrid material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your HPHACSSBC cable support inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
