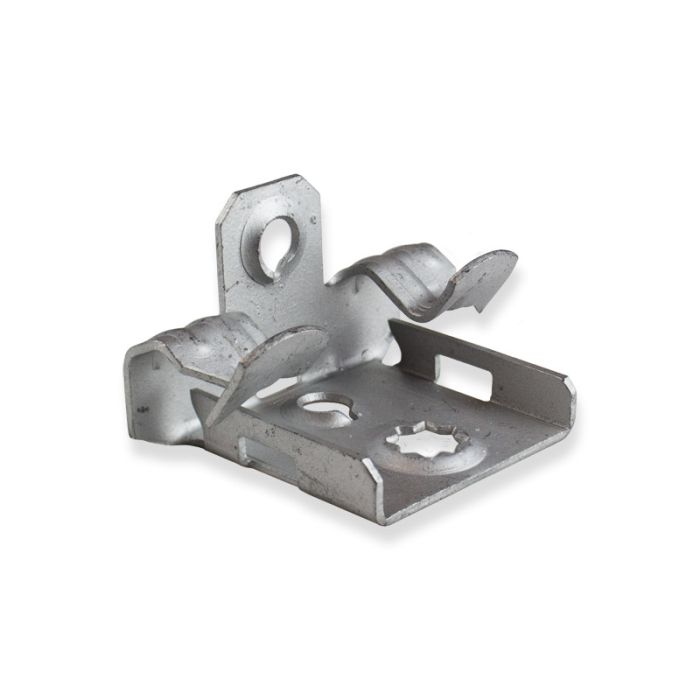

FM24 - Knock-on Beam Clamp for Flanges 1/8" - 1/4" Thick by Doc's Industries Inc.

The FM24 is suited to crews that cannot afford to lose hours modifying structural steel above finished floors or congested commercial interiors. The FM24 knock-on beam clamp gives your team a fast, hammer-on attachment point for 1/8" to 1/4" steel flanges without drilling, welding, or specialized power tools.

Here at Hook and Hanger, the mission is straightforward: supply hardware that helps contractors build faster and safer. Instead of fighting structural iron with drills, hot-work coordination, or set-screw clamps that depend on perfect torque, this knock-on beam clamp bites into the flange with a hammer strike. It turns existing steel into an immediate support point for electrical, data, mechanical, and ceiling support work.

High-Velocity Substructure Attachment with FM24 Knock-on Beam Clamps

This clip is suited to high-volume substructure attachment where repeatability is critical. Traditional set-screw clamps can work when installed correctly, but they rely on consistent torque, clean positioning, and extra handling time. A hammer-on spring-steel design simplifies the process by using stored clip tension to grip the steel flange.

That spring action is the core advantage of this knock-on beam clamp. When the clip is driven onto the flange, the formed steel flexes, loads, and holds tension against the beam. Spring steel can absorb normal vibration, building movement, and service activity without relaxing like soft metal. For buyers comparing beam clamps, this style is useful when speed, tool reduction, and predictable grip matter.

What the FM24 Knock-on Beam Clamp Is Used For

The FM24 is used wherever you need a fast attachment point from structural steel without altering the beam. Electrical contractors can use the knock-on beam clamp to support conduit runs, junction support hardware, and branch pathway components from overhead steel. Data and low-voltage crews can use it for routing dense wire pathways, supporting trays, and organizing cable management hardware where clean alignment is critical.

Mechanical installers can use the same hardware as a support interface for light suspension layouts, auxiliary bracing, or service routing in commercial ceiling zones. Ceiling crews can use it near grid interfaces where steel flanges provide practical structural support above the room. On suspended ceiling projects, the clamp gives your crew a clean way to establish attachment locations without waiting for drilled anchors or welded tabs.

FM24 Knock-on Beam Clamp Threaded Impressions and Technical Specs

The FM24 gives your team two distinct 1/4-20 threaded impressions: one on the side and one on the bottom. That dual-entry geometry gives installers more freedom to match the clamp to the field condition instead of forcing the layout around a single attachment angle. When beam orientation, service routing, or clearance changes from one bay to the next, that flexibility keeps installation moving.

This knock-on beam clamp is designed for structural steel flanges measuring 1/8" to 1/4" thick. The side impression can support horizontal or offset positioning, while the bottom impression supports direct vertical drops. That makes the FM24 a strong match for compatible rods, small hardware assemblies, and threaded rod fasteners used in commercial support systems. For installers, the value is simple: one compact clip, two usable threaded locations, and less field improvisation.

FM24 Knock-on Beam Clamp Spring-Steel Construction and Geomet Plating

This clamp is manufactured from high-quality spring steel selected for long-term tension retention. Once installed, the clip maintains pressure against the flange because the material is built to flex and recover rather than deform permanently. That controlled tension is what gives the knock-on beam clamp its aggressive bite and reliable hold.

This clamp is eco-friendly +3CR Geomet plating for corrosion-resistant protection. Geomet coating supports strong surface durability without older coating methods that create unnecessary environmental burden. The finish is RoHS Compliant, helping contractors meet modern project standards while using hardware built for demanding commercial conditions. In overhead spaces, mechanical rooms, deck areas, and service corridors, the plating helps protect the clip from common corrosion risks.

Key Benefits for Commercial Systems Installers

• Instant, hammer-on installation that drastically slashes estimated labor hours.
  The FM24 removes the need to pre-drill steel, set up hot-work controls, or manage complex tool staging.

• Dual 1/4-20 attachment points for highly flexible field alignment.
  Side and bottom threaded impressions help your crew adapt to beam orientation, clearance limits, and service routing.

• Eliminates structural steel drilling permits, hot-work hazards, and costly drill bit wear.
  This knock-on beam clamp reduces field modification while protecting productivity on high-volume commercial installations.

• CULUS Listed for verified mechanical performance and strict building code compliance.
  Contractors, inspectors, and project managers gain confidence that the attachment method is built around tested performance requirements.

Safer Overhead Field Installations with the FM24 Knock-on Beam Clamp

Field safety improves when crews spend less time wrestling with steel above shoulder height. Drilling into structural beams often keeps workers on ladders, lifts, or scaffolding while they fight bit heat, alignment, debris, vibration, and tool kickback. Welding introduces hot-work permits, fire watch coordination, fumes, and added site controls. This clamp helps remove those exposures from routine attachment work.

With the right installation equipment, this knock-on beam clamp can be positioned quickly and driven into place with a simple hammer strike, reducing the total time your team spends at height. That supports cleaner safety metrics, fewer ladder-heavy tasks, and less fatigue across long overhead runs. Hook and Hanger supplies this hardware for professionals who need attachments that are fast, consistent, and practical.

Secure Your FM24 Beam Clamps Directly From Us

Partnering directly with Hook and Hanger gives your crew access to commercial-grade hardware from a supplier that understands project logistics, strict contractor timelines, and dependable product sourcing. The FM24 is part of Hook and Hanger’s job site support range for installers who need dependable inventory, practical technical guidance, and consistent product sourcing across repeat applications.

To purchase your FM24 inventory or to explore our complete selection of Beam Clamps, Threaded Rod Fasteners, and Purlin Clips, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
