JHACPBC J-Hook with Rotating Screw-In Press Beam Clamp

The JHACPBC J-Hook combines a galvanized steel cable support with an integrated 90° angle clip and rotating screw-in press beam clamp. The clamp attaches directly to steel flanges up to 1/2 inch thick and swivels through 360° after installation, giving crews precise control over pathway direction. Hook and Hanger distributes this assembled support for secure cable management in commercial construction, tenant improvements, data centers, schools, healthcare facilities, and other structured cabling environments.

These components are optimized for all data comm and low-voltage cables, including CAT 5e, CAT 6, and fiber optics. Each assembly provides a heavy-duty structural anchor that is cULus listed, patented, and Plenum-rated. Its metal construction and compliance profile help contractors establish organized pathways while meeting applicable NEC and TIA requirements for structured cabling systems.

What Is the JHACPBC J-Hook Used For?

The JHACPBC J-Hook establishes cable pathways beneath or beside structural steel without requiring a fixed-direction mount. It joins the open support of j-hooks with a clamp that can be tightened to a flange and rotated to match the cable route. Practical jobsite functions include:

• Attaching to steel flanges up to 1/2 inch thick through an integrated screw-in press beam clamp.

• Rotating through 360° so installers can orient the pathway before pulling or dressing cable.

• Supporting CAT 5e, CAT 6, fiber optic, and other low-voltage lines without sharp bend points.

• Securing high-speed data lines in offices, schools, hospitals, retail buildings, and industrial facilities.

• Reducing mounting steps because the J-hook, 90° clip, and press clamp arrive assembled.

• Keeping pathways accessible for cable additions, inspection, and system changes.

The rotating connection is useful where structural beams do not run parallel with the planned pathway.

What Are the JHACPBC J-Hook Specifications?

Hook and Hanger stocks four sizes so crews can match pathway capacity to the cables shown in project documents:

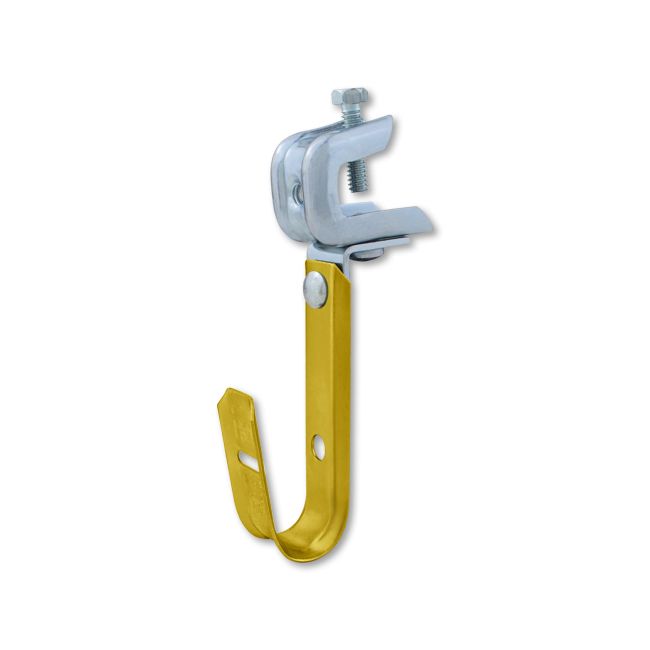

• JH-12ACPBC: 3/4-inch size, 17 lb. load capacity, and support capacity for 16 CAT 5e or 2-strand fiber optic cables, or 10 CAT 6 cables.

• JH-21ACPBC: 1 5/16-inch size, 17 lb. load capacity, and support capacity for 50 CAT 5e or 2-strand fiber optic cables, or 32 CAT 6 cables.

• JH-32ACPBC: 2-inch size, 17 lb. load capacity, and support capacity for 80 CAT 5e or 2-strand fiber optic cables, or 50 CAT 6 cables.

• JH-64ACPBC: 4-inch size, 50 lb. load capacity, and support capacity for 300 CAT 5e or 2-strand fiber optic cables, or 185 CAT 6 cables.

• Construction: galvanized steel J-hook with a yellow zinc chromate finish.

• Assembly: integrated 90° angle clip and rotating screw-in press beam clamp.

• Compliance: cULus listed, patented, NEC and TIA compliant, and Plenum-rated.

• Origin: assembled in the USA with global components.

Apply cable quantities within the listed load, cable diameter, bend-radius, spacing, and project requirements. The open JHACPBC J-Hook shape lets installers place cables without pulling them through an enclosed fitting, supporting efficient additions and organized cable dressing.

How Does the JHACPBC J-Hook Attach to Overhead Structure?

The clamp uses a screw-in action to grip a compatible steel flange. Position it fully on a flange no thicker than 1/2 inch, tighten the screw according to installation requirements, and rotate the support toward the planned pathway. The 360° swivel changes cable direction without clamp removal. This helps around intersecting beams, mechanical services, and offsets that interrupt a straight run.

Compared with standard overhead drilling and anchoring operations, this assembly provides flexible flange attachment without drilling the structural member. Our hardware line includes beam clamps for direct steel attachment and angle clips for connecting support components at controlled orientations. Product selection depends on the approved structure, pathway load, flange geometry, and project details.

Why Use JHACPBC J-Hook Supports in Plenum Spaces?

A return-air plenum above a suspended ceiling requires rated components and properly supported cabling. This all-metal support is plenum-rated for air-handling spaces, while its cULus listing and NEC/TIA compliance support product review, submittal preparation, and inspection. Contractors must confirm support spacing, cable fill, local code provisions, and construction documents before installation.

Hook and Hanger supplies attachment options for different overhead conditions, including purlin clips, additional J-hook configurations, extension poles, eye lag screws, and threaded rod fasteners. These alternatives help crews address wood, steel, purlin, ceiling-wire, and threaded-rod applications with hardware suited to each approved substrate. We offer nationwide distribution and technical assistance for selection, submittals, and quantity planning.
