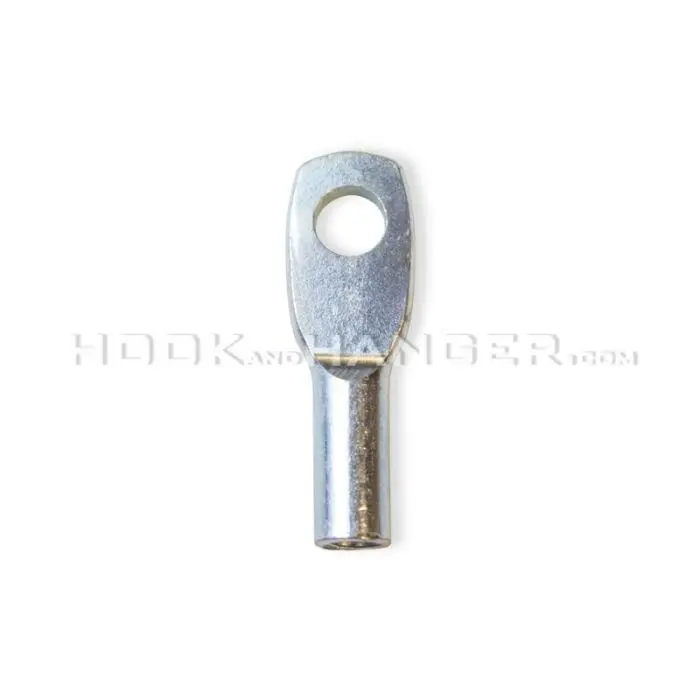

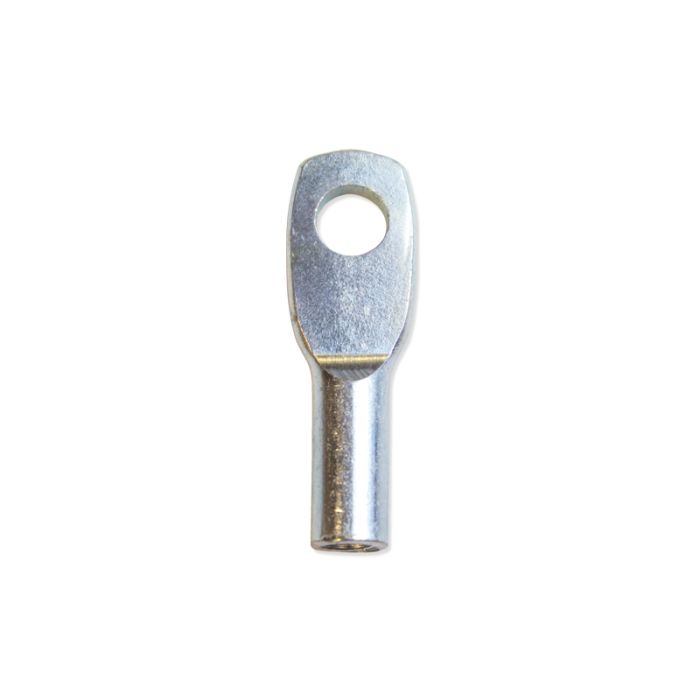

EC14 Eye Coupling for 1/4" Threaded Rod

The EC14 Eye Coupling for 1/4" Threaded Rod gives datacom installers a direct transition between rigid rod drops and flexible hanging connections. Its precision-machined, dual-profile design combines a 1/4"-20 female thread on one side with a smooth 1/4" unthreaded hole on the other. This configuration converts a standard rod termination into a practical attachment point for wire, hooks, and compatible secondary hardware used in commercial cable management layouts.

At Hook and Hanger, we serve as a specialist supplier and distributor of the EC14 Eye Coupling for 1/4" Threaded Rod for contractors who need a dependable structural transition within overhead assemblies. The hardware is designed to securely adapt standard 1/4"-20 rod drops into versatile suspension points without requiring installers to replace an otherwise usable rod support. This helps crews modify pathway layouts, accommodate site conditions, and complete overhead connections with fewer separate transition components.

What Is the EC14 Eye Coupling for 1/4" Threaded Rod Used For?

The EC14 Eye Coupling for 1/4" Threaded Rod connects a rigid threaded support to a flexible or non-threaded suspension method. Installers can use it where a 1/4" threaded rod has already established the required drop, but the next part of the assembly calls for ceiling wire, a hook, or another compatible attachment. Its main functions include:

• Accepting standard 1/4"-20 threaded rod through the female threaded socket for a secure, aligned mechanical connection.

• Providing a smooth 1/4" hole for ceiling wire, hook hardware, or another suitable secondary attachment.

• Creating a transition point between rigid rod support and flexible hanging hardware without drilling through the threaded rod.

• Supporting field adjustments where pathway position, elevation, or routing changes during installation.

• Providing a compact termination option for overhead low-voltage and datacom support layouts.

What Are the EC14 Eye Coupling Specifications?

The EC14 Eye Coupling for 1/4" Threaded Rod uses a simple two-sided configuration intended for standard support components. Confirm the applicable project requirements and supported loading before installation.

• Product Code: EC14

• Side 1 Profile: 1/4"-20 female thread

• Side 2 Profile: 1/4" unthreaded hole

• Compatibility: Designed for use with standard 1/4" threaded rod and standard ceiling wire or hook hardware

How Does the EC14 Eye Coupling Attach to Overhead Structures?

To install the EC14 Eye Coupling for 1/4" Threaded Rod, the installer threads the female socket directly onto the exposed end of a compatible 1/4"-20 rod drop. The connection should be fully engaged and checked for alignment according to the project drawings, applicable codes, and hardware requirements. Once secured, the smooth 1/4" opening remains accessible for the approved wire, hook, or secondary fitting.

The existing rod may be supported from structural steel or another approved substrate through correctly selected beam clamps or angle clips. For crews coordinating the fitting with standard overhead drilling and anchoring work, the coupling provides a defined transition below the primary attachment. Final spacing, loading, and support selection must follow the engineered pathway design and applicable jobsite requirements.

Why Use the EC14 Eye Coupling in Commercial Environments?

Commercial interiors often require datacom pathways to be placed at controlled elevations above a suspended ceiling while remaining independent of ceiling grid components. Exact drop heights can vary around ductwork, electrical services, lighting, and other building systems. A transitional fitting allows crews to retain a threaded rod drop and establish a flexible termination point where the final connection requires wire or hook hardware.

The EC14 Eye Coupling for 1/4" Threaded Rod can simplify material planning because one compact component joins two common support methods. It also helps installers respond efficiently when pathway alignment changes after field coordination. Instead of removing the complete rod assembly, the installer can use the dual-profile connection to adapt the termination while keeping the upper support arrangement intact.

We also supply purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners for compatible overhead support work. These options help contractors match attachment hardware to the substrate, access conditions, pathway configuration, and approved installation method. Correct component selection remains essential for maintaining separation, elevation, and support intervals across commercial datacom runs.

Order EC14 Eye Couplings From Hook and Hanger

Choosing to partner with us at Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, transitional utility, and advanced material compatibility of this specific coupling into your project plans, you secure an efficient, hassle-free installation backed by our internal specialist team focused entirely on practical hardware solutions.

To purchase your EC14 Eye Coupling for 1/4" Threaded Rod inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
