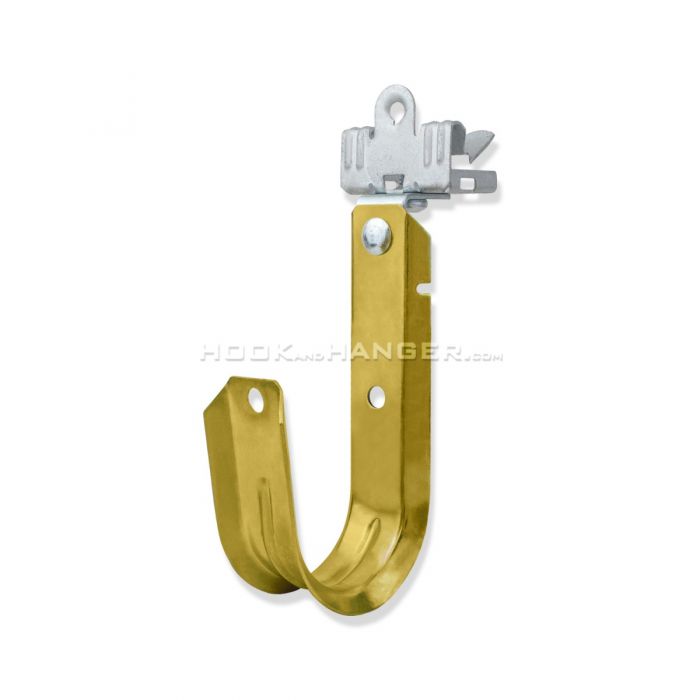

JHACFM58 J-Hook with Rotating Large Knock-on Beam Clamp

The JHACFM58 J-Hook includes a galvanized steel cable support, a 90-degree angle clip, and an FM58 spring steel knock-on beam clamp. The completed assembly rotates through 360 degrees, allowing installers to adjust the cable pathway direction after attaching the clamp to structural steel flanges measuring 5/16 inch to 1/2 inch thick. Hook and Hanger distributes this assembly for cable management installations requiring fast attachment and adjustable alignment.

These components are optimized for all data comm and low-voltage cables, including CAT 5e, CAT 6, and fiber optic lines. The galvanized steel hook provides a heavy-duty structural anchor, while the rotating clamp lets installers align the cable pathway with field conditions. The JHACFM58 J-Hook is cULus listed, patented, and Plenum-rated for qualified use in air-handling spaces.

What Is the JHACFM58 J-Hook Used For?

The JHACFM58 J-Hook supports structured cabling pathways from steel framing in offices, data facilities, schools, hospitals, and retail buildings. Its integrated connection eliminates the need to assemble a separate hook and flange attachment at each support point.

• Attaches rapidly to 5/16-inch to 1/2-inch steel flanges through the FM58 hammer-on clamp.

• Rotates 360 degrees so the pathway can follow turns, offsets, and changes in cable direction.

• Supports high-speed data and low-voltage lines without forcing the bundle into a rigid orientation.

• Provides four hook sizes for different pathway capacities, from compact branch runs to higher-volume backbone routes.

• Keeps cables elevated, organized, and supported at planned intervals throughout commercial environments.

• Uses an all-metal hook-and-clamp assembly suitable for specified plenum applications.

What Are the JHACFM58 J-Hook Specifications?

The JHACFM58 J-Hook is available in four configurations. Each identifier represents a complete hook-and-clamp assembly, helping estimators and field crews match pathway capacity to the expected cable count.

• JH-12ACFM58: 3/4-inch size; 17 lb. load capacity; supports 16 CAT 5e/2-strand fiber optic cables or 10 CAT 6 cables.

• JH-21ACFM58: 1 5/16-inch size; 17 lb. load capacity; supports 50 CAT 5e/2-strand fiber optic cables or 32 CAT 6 cables.

• JH-32ACFM58: 2-inch size; 17 lb. load capacity; supports 80 CAT 5e/2-strand fiber optic cables or 50 CAT 6 cables.

• JH-64ACFM58: 4-inch size; 50 lb. load capacity; supports 300 CAT 5e/2-strand fiber optic cables or 185 CAT 6 cables.

• Materials: galvanized steel J-Hook and spring steel FM58 clamp.

• Finish: yellow zinc chromate on the clamp.

• Assembly: integrated 90° angle clip and spring steel knock-on beam clamp

• Compliance and origin: patented design, cULus listed, NEC and TIA compliant, Plenum-rated, and assembled in the USA with global components.

How Does the JHACFM58 J-Hook Attach to Overhead Structure?

The FM58 uses a hammer-on mechanism that grips thicker structural steel flanges without drilling or installing a threaded attachment. The installer positions the clamp on a compatible 5/16-inch to 1/2-inch flange and drives it into place. Once attached, the JHACFM58 J-Hook can swivel through 360 degrees while the clamp remains secured to the flange.

For crews evaluating this hardware alongside standard overhead drilling and anchoring operations, the rotating assembly reduces the number of steps needed at suitable steel attachment points. The JHACFM58 J-Hook's adjustable orientation also helps connect routes around intersections and structural offsets. Hook and Hanger supplies beam clamps for flange-based connections and angle clips for other structural fastening layouts, allowing the specified support method to match the substrate and pathway design.

Why Use JHACFM58 J-Hook Supports in Plenum Spaces?

Commercial air-handling pathways require support hardware that matches the project specification and applicable code requirements. The JHACFM58 J-Hook is Plenum-rated and uses metal components suited to structured cabling installations above a suspended ceiling. Its NEC and TIA compliance supports proper pathway planning, cable separation, support spacing, and documentation for data comm and low-voltage work.

Using a listed assembly also gives foremen and inspectors clear product identification during submittal review and installation checks. The cULus listing, patented configuration, stated load capacities, and defined cable capacities help teams verify that the selected model fits the route before installation begins. These details support consistent procurement and reduce uncertainty when several hook sizes are used across one project.

Not every overhead route uses the same structural connection. Hook and Hanger also supplies purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners for compatible support layouts. We stock these alternatives so contractors can coordinate flange, purlin, ceiling, wood, and rod-based attachment points while maintaining the required cable pathway.

Order JHACFM58 J-Hooks From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your JHACFM58 J-Hook inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
