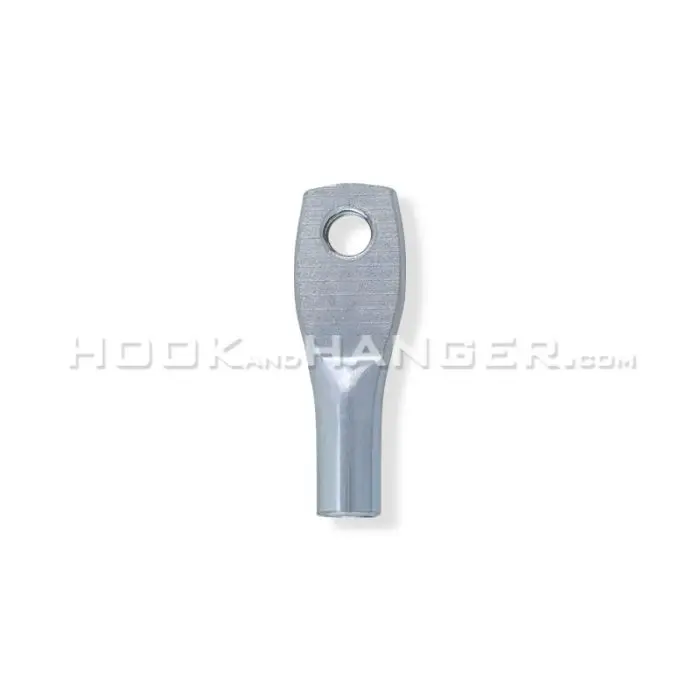

EC14-T Eye Coupling for 1/4" Threaded Rod – 1/4"-20 Threaded Eyelet
The EC14-T Eye Coupling for 1/4" Threaded Rod gives installers a dual-threaded connection point for overhead assemblies. Its 1/4"-20 socket receives a standard rod end, while its separate 1/4"-20 through-hole accepts another compatible component. We supply and distribute this specialized hardware for commercial cable management work requiring accurate alignment and secure mechanical connections.
The EC14-T Eye Coupling for 1/4" Threaded Rod securely joins and extends standard 1/4"-20 rod drops. It provides a dependable structural link within commercial overhead assemblies, without introducing a mismatched thread size or improvised connection.
What Is the EC14-T Eye Coupling for 1/4" Threaded Rod Used For?
The EC14-T Eye Coupling for 1/4" Threaded Rod helps datacom installers connect, drop, extend, or terminate threaded rod lengths wherever a secure 1/4"-20 interface is required. Its two threaded connection points support several field configurations while maintaining consistent thread engagement through the planned load path.
-
Connect a standard 1/4" threaded rod drop to a compatible support or attachment point.
-
Extend an existing rod drop when the installed length does not reach the required pathway elevation.
-
Create a termination or transition point for compatible hardware within an overhead support arrangement.
-
Use the 1/4"-20 socket for direct end-on rod engagement and the 1/4"-20 through-hole for a perpendicular threaded connection.
-
Maintain a continuous structural load path by matching both interfaces to standard 1/4"-20 hardware.
-
Simplify field adjustments where final elevations or support positions must be coordinated with other building systems.
The layout is useful where one rod continues vertically while another threaded part connects through the eyelet. Installers can select the appropriate interface for the assembly instead of carrying a different coupler for each transition. Correct component selection, full thread engagement, and compliance with approved load requirements remain essential.
What Are the EC14-T Eye Coupling Specifications?
Use the following data to confirm thread compatibility before installation or submittal preparation:
-
Product Code: EC14-T
-
Socket Thread: 1/4"-20
-
Through-Hole Thread: 1/4"-20
-
Compatibility: Designed for use with standard 1/4" threaded rod
-
Compliance: RoHS Compliant
Both interfaces on the EC14-T Eye Coupling for 1/4" Threaded Rod use the same nominal thread specification. This supports repeatable installation and reduces uncertainty when crews organize fittings, rods, and attachment hardware. Verify that every anchor, support point, rod, and pathway component satisfies the engineered load and application requirements.
How Does the EC14-T Eye Coupling Attach to Overhead Structures?
The EC14-T Eye Coupling for 1/4" Threaded Rod threads directly onto an exposed rod end or compatible threaded anchor. The installer aligns the socket, advances the fitting to the required engagement, and uses the through-hole for the next approved component. The connection must remain straight, fully engaged, and free from thread damage or contamination.
Alongside overhead drilling and anchoring, the coupling provides a stable extension point between the structural attachment and required drop elevation. A layout may begin at suitable beam clamps or angle clips, continue through correctly sized rod, and transition at the eye coupling. Select every part for the documented substrate, orientation, loading, and environment.
The standard thread at both interfaces helps preserve alignment when the connection direction changes. Never force mismatched rod into either opening. Confirm thread size, inspect engagement, and follow the project engineer’s fastening and load instructions before placing the pathway into service.
Why Use the EC14-T Eye Coupling in Commercial Environments?
The EC14-T Eye Coupling for 1/4" Threaded Rod helps position pathways at exact elevations above a suspended ceiling while crews coordinate with ductwork, conduit, sprinkler piping, and access clearances. Precise thread matching makes drop-height adjustments more direct and supports faster installation, reliable alignment, and safer overhead handling.
The socket and through-hole help foremen standardize details across repeated rod drops. A clearly identified fitting and common rod size simplify material staging, installation checks, and submittal review. RoHS compliance also supports projects that document restricted-substance requirements.
We supply related hardware for different structures and pathway layouts, including purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners. These options let contractors coordinate suitable attachment and support methods for each location. Our team can identify compatible parts from project drawings, substrate information, and the required support arrangement.
Order EC14-T Eye Couplings From Hook and Hanger
Choosing to partner with us at Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, secure thread engagement, and advanced material compatibility of this specific coupling into your project plans, you secure an efficient, hassle-free installation backed by our internal specialist team focused entirely on practical hardware solutions.
To purchase your EC14-T Eye Coupling for 1/4" Threaded Rod inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
