JHSSBC J-Hook with Spring Steel Beam Clamp

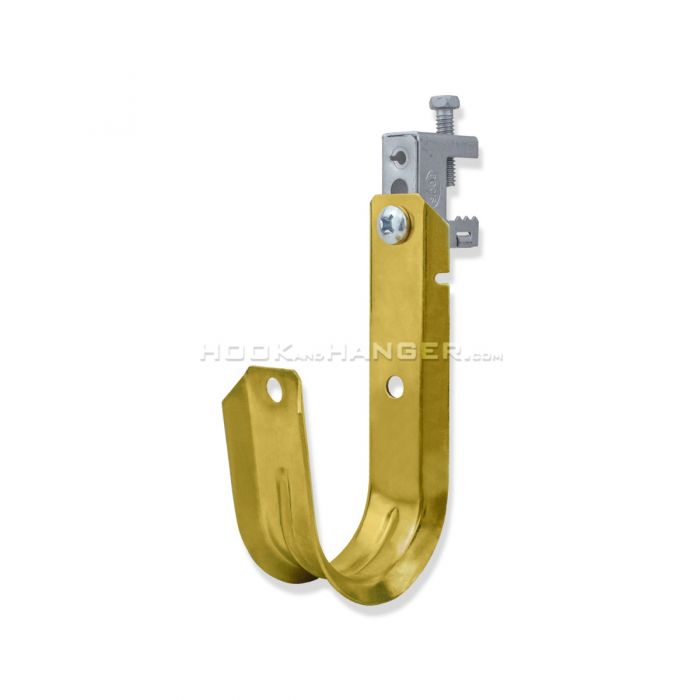

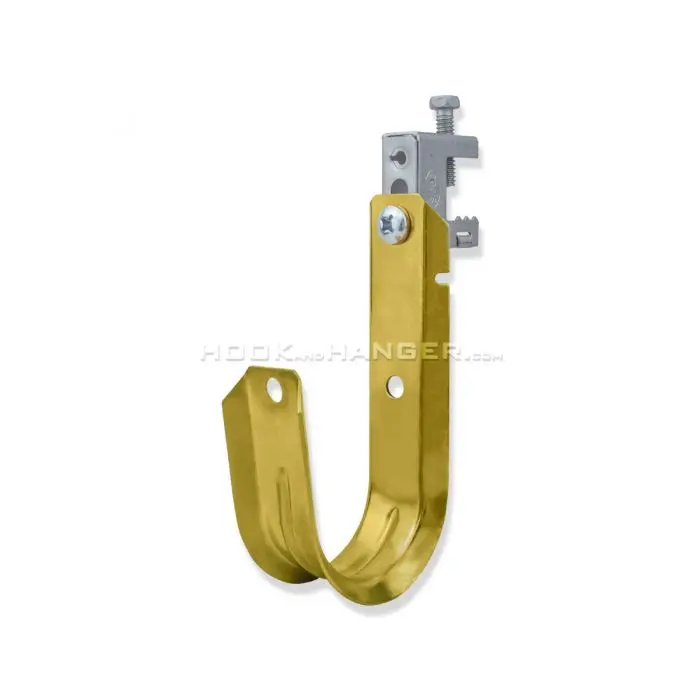

The JHSSBC J-Hook combines a galvanized steel cable support and integrated spring steel screw-in beam clamp for structural flanges. Hook and Hanger distributes this preassembled hardware for commercial cable management layouts requiring a fixed overhead pathway. The assembly has a yellow zinc chromate finish and fits beam flanges up to 1/2 inch thick.

These components are optimized for all data comm and low-voltage cables, including CAT 5e, CAT 6, and fiber optics. Each JHSSBC J-Hook provides a heavy-duty structural anchor that is cULus listed, patented, and Plenum-rated. Four hook sizes match pathway capacity to cable count, load rating, and overhead space.

What Is the JHSSBC J-Hook Used For?

This preassembled support creates a communications cable pathway attached directly to an accessible steel flange. Its integrated clamp reduces the parts crews must handle and connect overhead. Jobsite functions include:

• Attaching to steel flanges up to 1/2 inch thick through a controlled screw-in clamping action.

• Supporting CAT 5e, CAT 6, fiber optic, and other data comm or low-voltage cable runs.

• Creating stable cable routes through offices, schools, health care facilities, retail properties, and other commercial interiors.

• Keeping high-speed data lines organized and elevated through accessible ceiling spaces.

• Providing an application-specific alternative to multipart mounting assemblies and separate beam clamps.

• Matching cable volume with four hook sizes and published support capacities.

The open hook provides access when laying in, inspecting, or adding approved cables. Crews can select the correct size instead of placing a large bundle in an undersized support.

What Are the JHSSBC J-Hook Specifications?

Hook and Hanger offers these models for different bundle sizes and structural load requirements:

• JH12SSBC: 3/4-inch size; 17-pound load capacity; supports 16 CAT 5e or 2-strand fiber optic cables, or 10 CAT 6 cables.

• JH21SSBC: 1 5/16-inch size; 17-pound load capacity; supports 50 CAT 5e or 2-strand fiber optic cables, or 32 CAT 6 cables.

• JH32SSBC: 2-inch size; 17-pound load capacity; supports 80 CAT 5e or 2-strand fiber optic cables, or 50 CAT 6 cables.

• JH64SSBC: 4-inch size; 50-pound load capacity; supports 300 CAT 5e or 2-strand fiber optic cables, or 185 CAT 6 cables.

• Construction: galvanized steel J-Hook with a spring steel beam clamp and yellow zinc chromate finish.

• Compliance and origin: patented, cULus listed, NEC and TIA compliant, Plenum-rated, and assembled in the USA with global components.

Published capacities help foremen calculate support requirements. The selected support must remain within its load and cable limits and meet specified pathway support spacing.

How Does the JHSSBC J-Hook Attach to Overhead Structure?

The spring steel clamp fits over the flange edge, and its mechanical screw-in action tightens the assembly against the steel. This creates a stable attachment point without a separate clamp, fastener, and cable support. Installers should confirm that the flange is no more than 1/2 inch thick, position the clamp squarely, and tighten it according to project requirements.

For crews evaluating this hardware alongside standard overhead drilling and anchoring operations, the JHSSBC J-Hook offers high stability and a fast installation path where a compatible flange is available. It reduces tool handling at elevation. Other beam clamps or angle clips may be required when the structural profile, attachment direction, or pathway geometry needs a different connection.

Direct attachment supports orderly alignment across structural bays. Before loading cable, installers should inspect each connection and verify hook spacing, load limits, cable bend requirements, and clearance from other services.

Why Use JHSSBC J-Hook Supports in Plenum Spaces?

A plenum forms part of an air-handling system, so installed hardware must meet applicable requirements. The Plenum-rated assembly uses metal components suited to cable support in a suspended ceiling air pathway. Its cULus listing and NEC and TIA compliance provide documented performance references for structured cabling systems.

Correct support protects cable geometry and keeps bundles off ceiling grid, ductwork, piping, and unrelated services. This support maintains organized routing and access for inspection or future cable work. Installers must follow approved drawings, local codes, cable fill limits, and project-specific spacing instructions.

We supply attachment options for structures that cannot use this flange-mounted assembly. Hook and Hanger stocks purlin clips, standard j-hooks, extension poles, eye lag screws, and threaded rod fasteners for compatible overhead applications. These alternatives help crews coordinate hardware across steel framing, wood structures, ceiling areas, and suspended assemblies without applying one method to every condition.

Order JHSSBC J-Hooks From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your JHSSBC J-Hook inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
