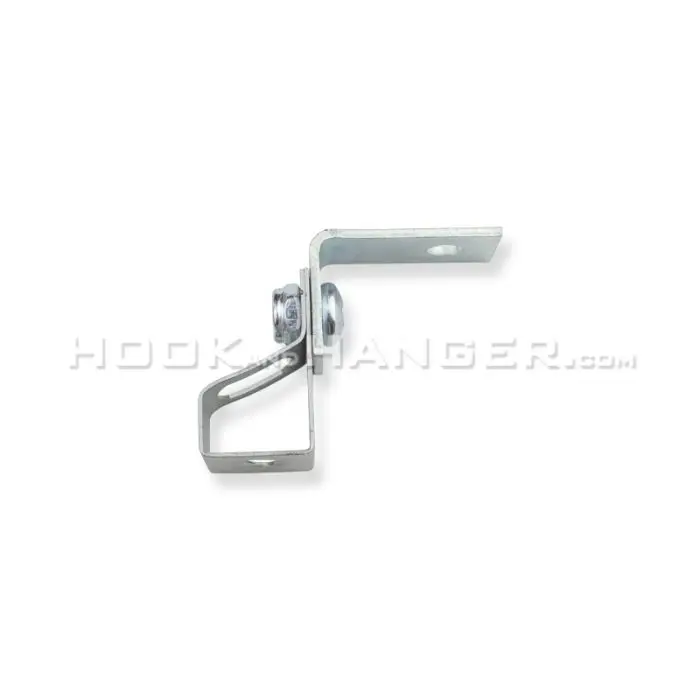

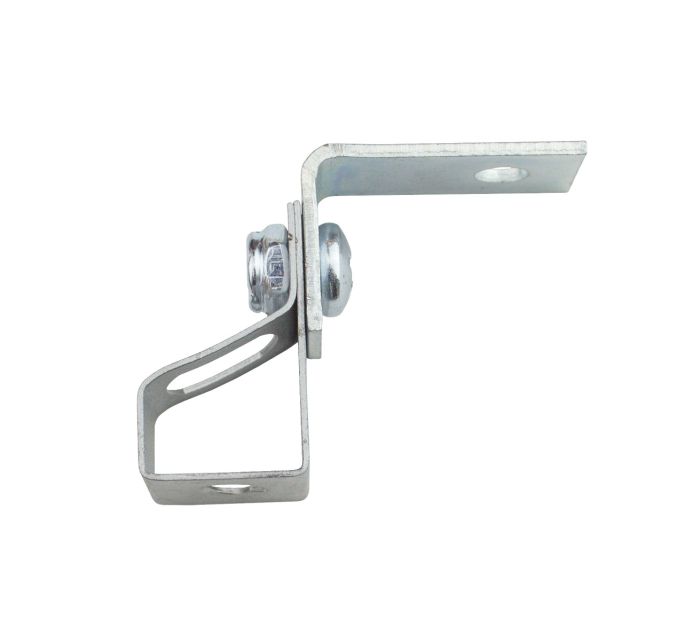

14TIAC 1/4" Rod Hanger with Angle Clip

The 14TIAC 1/4" Rod Hanger with Angle Clip combines a spring steel rod hanger with a pre-fastened 90-degree steel bracket in one installation-ready assembly. We supply and distribute this component for contractors who need a direct, repeatable method of establishing threaded-rod support points on horizontal ceiling structures.

Designed specifically for suspending 1/4" threaded rod from horizontal surfaces, the assembly provides a dependable structural anchor point for overhead supports. Hook and Hanger supplies this hardware for commercial cable management work where accurate drop placement, secure attachment, and efficient installation help crews maintain an organized pathway layout above the finished space.

What Is the 14TIAC 1/4" Rod Hanger with Angle Clip Used For?

The 14TIAC 1/4" Rod Hanger with Angle Clip gives datacom and electrical crews a pre-assembled connection for installing vertical rod drops below concrete, metal deck, structural steel, or wood framing. Its integrated parts reduce the repetitive handling and field assembly associated with separate brackets, fasteners, and rod-hanging components.

• It suspends 1/4" threaded rod from a suitable horizontal overhead structure.

• The integrated 1/4" threaded impression accepts the matching rod directly and helps maintain a consistent vertical drop.

• The pre-fastened 90-degree bracket positions the threaded hanger below the mounting plane for straightforward ceiling attachment.

• The horizontal bracket leg provides an accessible fastening surface during overhead layout and installation.

• The combined configuration reduces loose-component handling while installers establish support points for cable pathways and related building services.

Final use must match the project design, selected anchor, load conditions, substrate, and applicable requirements.

What Are the 14TIAC 1/4" Rod Hanger with Angle Clip Specifications?

We provide the 14TIAC 1/4" Rod Hanger with Angle Clip with clearly defined material, connection, finish, packaging, and assembly information for estimating, submittal preparation, and field verification.

• Product Code: 14TIAC

• Material: Spring Steel & Steel

• Finish: Geomet

• Hole Size: 1/4"

• Threaded Impression: 1/4"

• Box Quantity: 100

• Assembly: Assembled in the USA with global components

The Geomet finish provides corrosion protection for appropriate interior conditions. Project teams should evaluate environmental exposure and specification requirements before use.

How Does the 14TIAC 1/4" Rod Hanger Attach to Overhead Structures?

The horizontal leg of the pre-assembled bracket creates the fastening plane. Crews place that leg against a flat concrete slab, structural steel surface, metal deck, or suitable wood framing, then use the anchor or fastener approved for the substrate and application. Once the bracket is secured, the 1/4" threaded impression receives the rod and establishes a stable vertical suspension point.

For installers comparing this method with standard overhead drilling and anchoring operations, the 14TIAC 1/4" Rod Hanger with Angle Clip reduces the number of separate components that must be aligned and connected above shoulder level. The pre-assembled relationship between the horizontal leg and threaded impression also helps crews preserve rod orientation across repeated drops.

Attachment selection must match the base material, design load, project specification, and governing requirements. We also supply angle clips and beam clamps for other structural conditions and attachment surfaces.

Why Use the 14TIAC 1/4" Rod Hanger with Angle Clip in Commercial Environments?

Commercial interiors frequently leave limited working room above a suspended ceiling, especially where communications pathways share space with other building systems. A pre-assembled bracket and threaded hanger limit loose-part handling in that congested area. It can increase installation speed and support safer work practices by shortening repetitive overhead assembly tasks.

The 14TIAC 1/4" Rod Hanger with Angle Clip gives foremen a consistent component for layout, material control, installation checks, and submittal records. Its defined hole size and threaded impression make rod compatibility easy to verify. The box quantity supports predictable staging, while the finish and material details simplify comparison with project documentation.

Not every overhead condition uses a flat horizontal fastening surface. We also supply purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners for compatible support layouts and installation methods. These alternatives help crews coordinate substrate type, pathway capacity, working height, and access restrictions with the correct hardware. Our team can help review component relationships without replacing the engineer, project specification, or authority responsible for final approval.

Order 14TIAC 1/4" Rod Hangers from Hook and Hanger

Choosing to partner with us at Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, horizontal mounting utility, and advanced material compatibility of this specific hanger into your project plans, you secure an efficient, hassle-free installation backed by our internal specialist team focused entirely on practical hardware solutions.

To purchase your 14TIAC 1/4" Rod Hanger with Angle Clip inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
