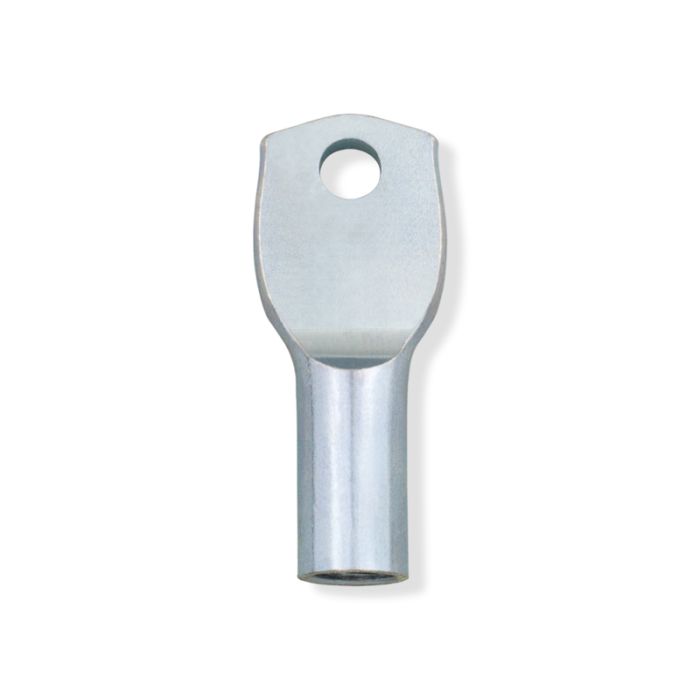

EC38 Eye Coupling for 3/8" Threaded Rod with 1/4" Through Hole

The EC38 Eye Coupling for 3/8" Threaded Rod combines a 3/8"-16 threaded socket on one side with a 1/4" through-hole on the other. This dual-function layout securely adapts standard 3/8" threaded rod drops into versatile suspension points, providing a dependable structural link for complex overhead assemblies and organized cable management pathways.

We supply and distribute this adapter for contractors, building foremen, and datacom installers transitioning from a threaded rod drop to secondary wire, hook, or non-threaded hanging hardware. The EC38 Eye Coupling for 3/8" Threaded Rod provides a direct connection without requiring an improvised transition or a change to the established rod layout.

What Is the EC38 Eye Coupling for 3/8" Threaded Rod Used For?

The coupling ends a standard rod drop while leaving an accessible eye for the next attachment. Its socket engages the 3/8"-16 rod, and the through-hole accepts compatible secondary hardware. Typical functions include:

• Connecting 3/8"-16 rod to secondary wire, a hook, pin, or compatible fastener through the 1/4" opening.

• Completing a rod drop at the required elevation while preserving a lower attachment point.

• Creating a compact transition between threaded suspension hardware and non-threaded pathway components.

• Supporting field adjustments where a direct conversion keeps hardware aligned and limits unnecessary connection pieces.

• Establishing a continuous structural support path when each component suits the intended load and project requirements.

This arrangement serves pathways with a rod-based upper connection and a lower component that does not use a threaded socket. Installers can position the eye above a suspended ceiling, then connect suitable secondary hardware without replacing the rod drop. The assembly must remain within the rated capacity of the connected hardware, structure, and approved design.

What Are the EC38 Eye Coupling Specifications?

The EC38 Eye Coupling for 3/8" Threaded Rod has defined thread and hole dimensions for compatibility checks before installation:

• Product Code: EC38

• Socket Thread: 3/8"-16

• Through-Hole Diameter: 1/4"

• Compatibility: Designed for use with standard 3/8"-16 threaded rod and J-hook assemblies

• Compliance: RoHS-Compliant Plating

The 3/8"-16 socket matches commonly specified interior support rod. Its 1/4" opening provides a mechanical connection for compatible hardware. RoHS-compliant plating supports commercial construction documentation requirements.

How Does the EC38 Eye Coupling Attach to Overhead Structures?

The EC38 Eye Coupling for 3/8" Threaded Rod threads directly onto an existing rod drop. Verify the rod diameter, thread pitch, end condition, required elevation, and compatibility of the component passing through the eye. Keep the rod square to the socket, start the connection by hand, and advance it to the specified thread engagement. Clean, undamaged threads help the coupling seat correctly and remain aligned.

For layouts developed alongside overhead drilling and anchoring operations, the coupling provides a controlled lower transition after the upper anchor and rod are installed. Continuous engagement matters because a partial or cross-threaded connection can reduce assembly reliability. Follow the approved drawings, fastening instructions, load criteria, and inspection requirements.

The upper rod may originate at compatible beam clamps or approved structural anchoring hardware. Where the pathway requires a directional transition or angled mounting surface, selected angle clips can support the surrounding layout. The coupling does not replace the upper attachment. It creates the rod-end connection for the next suitable component.

Why Use the EC38 Eye Coupling in Commercial Environments?

Commercial interiors often contain multiple ceiling elevations, congested service zones, and exact pathway clearances. The EC38 Eye Coupling for 3/8" Threaded Rod preserves a standard rod drop while changing the lower connection style. This helps crews meet planned drop heights above a suspended ceiling without revising the overhead attachment.

A defined adapter improves consistency across repeated drops. Foremen can identify one product code, verify the socket and hole dimensions, and document the same transition detail. Installers gain an accessible connection point that can reduce field adjustments where working space is limited.

We also supply purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners for related overhead tasks. These alternatives let crews match the attachment method to the supporting structure, installation height, pathway geometry, and approved hardware schedule. The EC38 Eye Coupling for 3/8" Threaded Rod is especially practical when the upper portion of the design already uses 3/8"-16 rod and the lower support requires a 1/4" through connection.

Order EC38 Eye Couplings From Hook and Hanger

Choosing to partner with us at Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, transitional utility, and advanced material compatibility of this specific coupling into your project plans, you secure an efficient, hassle-free installation backed by our internal specialist team focused entirely on practical hardware solutions.

To purchase your EC38 Eye Coupling for 3/8" Threaded Rod inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
