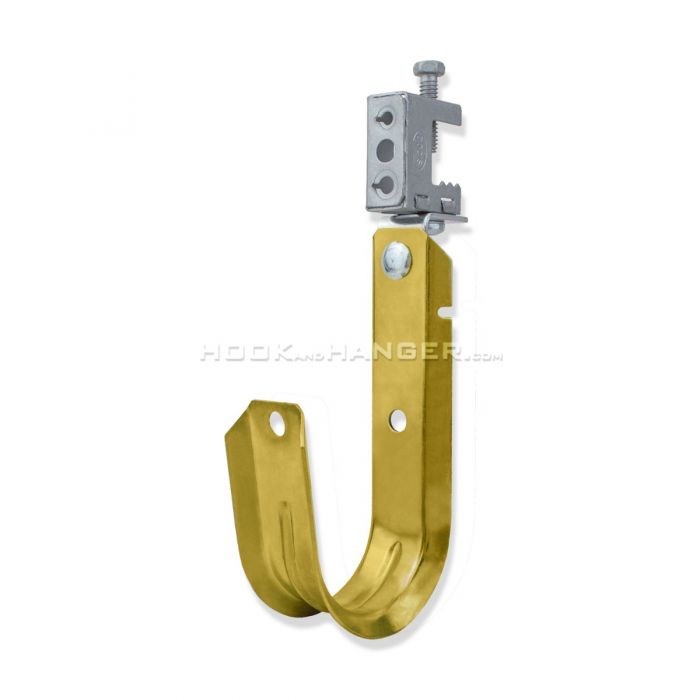

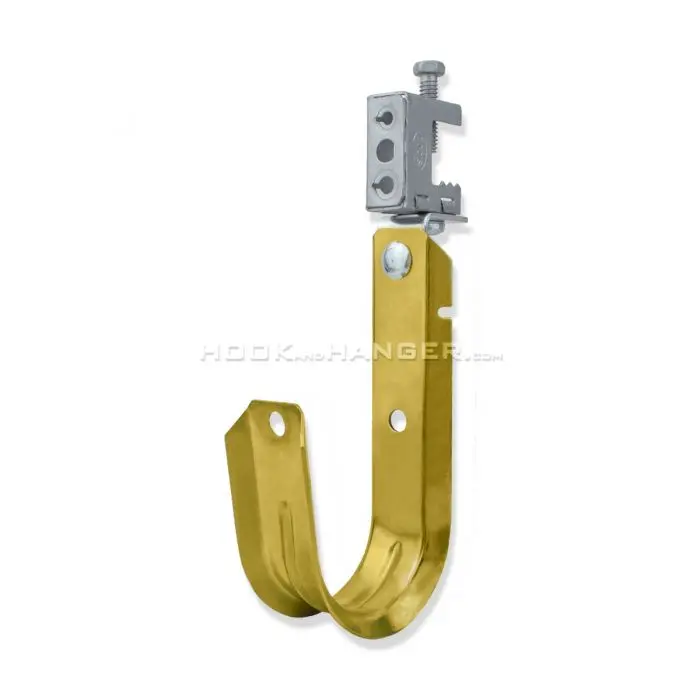

JHACSSBC J-Hook with Angle Clip Assembled to Spring Steel Beam Clamp - Swivels 360 degrees by Doc's Industries Inc.

The JHACSSBC J-Hook gives datacom crews a direct way to secure low-voltage cable pathways to overhead steel without field-built brackets. This assembly combines a screw-in spring steel clamp, a 90° angle clip, and a metal J-hook into one installation-ready support for cable management in commercial interiors, retrofit work, and new construction.

Hook and Hanger supplies this patented support as a heavy-duty structural anchor designed for all data comm and low-voltage cables, including CAT 5e, CAT 6, and fiber optics. The component is cULus listed, Plenum-rated for air-handling spaces, and designed for secure attachment to flanges up to 1/2" thick.

What Is the JHACSSBC J-Hook Used For?

This support carries low-voltage cable below overhead steel where the pathway must stay controlled and separated from building systems. It is especially useful above a suspended ceiling, where approved hardware must keep cable off the grid and ductwork.

• Provides an integrated spring steel beam clamp for attachment to steel flanges up to 1/2" thick.

• Includes a 90° angle clip for practical overhead cable routing.

• Allows full 360° rotation for pathway alignment.

• Supports high-speed data, fiber optic, and low-voltage cables in offices, schools, hospitals, retail buildings, and industrial facilities.

• Helps installers maintain cable bend control, pathway spacing, and overhead organization.

• Reduces separate clips, brackets, and field assembly steps where suitable flanges are available.

Hook and Hanger stocks this configuration for crews that need repeatable attachment points across framing conditions.

What Are the JHACSSBC J-Hook Specifications?

Multiple hook sizes are available so contractors can match the support to cable volume. Each size uses a 360° rotating screw-in spring steel clamp for flanges up to 1/2" thick, is assembled in the USA with global components, and is supplied with 100 pieces per box.

• JH12ACSSBC: 3/4" size, 17 lb. load capacity, support capacity of 16 CAT 5e / 2-strand fiber optic, or 10 CAT 6.

• JH21ACSSBC: 1 5/16" size, 17 lb. load capacity, support capacity of 50 CAT 5e / 2-strand fiber optic, or 32 CAT 6.

• JH32ACSSBC: 2" size, 17 lb. load capacity, support capacity of 80 CAT 5e / 2-strand fiber optic, or 50 CAT 6.

• JH64ACSSBC: 4" size, 50 lb. load capacity, support capacity of 300 CAT 5e / 2-strand fiber optic, or 185 CAT 6.

• Attachment profile: screw-in spring steel clamp with 360° rotation.

• Flange compatibility: secures to steel flanges up to 1/2" thick.

• Compliance and construction profile: cULus listed, patented, Plenum-rated, and assembled in the USA with global components.

These specifications help installers choose the correct support by cable count, pathway direction, and overhead conditions. Our hardware line gives crews a clear size progression, from branch runs to larger low-voltage bundles.

How Does the JHACSSBC J-Hook Attach to Overhead Structure?

The JHACSSBC J-Hook attaches directly to structural steel using the screw-in spring steel clamp. The clamp grips the flange while the angle-mounted hook carries the cable pathway below the steel member. Since the clamp is made for flanges up to 1/2" thick, installers can place the support where existing steel provides a suitable attachment point.

The 360° rotation lets the hook face the direction of the run instead of forcing cable into a fixed position. That matters around beams, ceiling grid, conduit banks, ductwork, and mechanical obstructions. For installers evaluating this support alongside overhead drilling and anchoring operations, the clamp provides a stable, non-destructive mounting method.

Hook and Hanger also supplies related beam clamps and angle clips for commercial layouts where different structural conditions require different attachment methods. The goal is to match support hardware to the structure, load, pathway direction, and installation sequence without slowing the datacom crew.

Why Use JHACSSBC J-Hook Supports in Plenum Spaces?

Plenum-rated hardware is important in air-handling spaces where materials and listings are reviewed closely. In commercial ceilings, low-voltage cable often runs through return-air areas, so support hardware should be selected with physical performance and compliance documentation in mind.

Metal j-hook supports keep cable runs off ceiling grid and away from unsupported contact points. They also support clean routing for CAT 5e, CAT 6, and fiber optic lines where bend control, spacing, and service access matter. That can reduce inspection rework and simplify maintenance.

For project compatibility, Hook and Hanger supplies additional overhead support parts, including purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners. These options help contractors coordinate low-voltage pathways with the structure available in each work area.

Order JHACSSBC J-Hooks From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your JHACSSBC J-Hook inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
