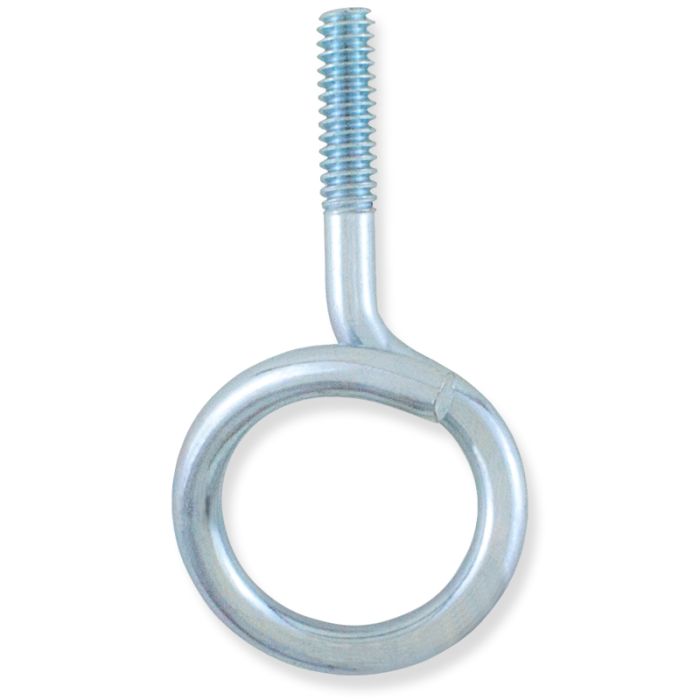

Machine Thread Bridle Ring 10-24 x 3/4" - BR2T075 by Doc's Industries Inc.

At Hook and Hanger, we supply the BR2T075 bridle ring for low-voltage installers who need a compact overhead attachment point for organized cable routing. This component combines a 3/4-inch loop with an integrated 10×24 machine thread, allowing crews to establish a defined pathway from compatible support hardware. Its zinc-plated mild carbon steel construction supports practical cable management in offices, schools, retail spaces, healthcare facilities, and similar interior commercial settings.

The BR2T075 bridle ring is intended for properly supported voice, signal, and control cable, not as a general structural support component. We stock this RoHS-compliant hardware for projects requiring a durable steel loop, basic corrosion protection, and an environmentally responsible material standard. Its open-loop configuration provides a direct path for narrow cable bundles while maintaining access for later inspection or additions.

What Is the BR2T075 Bridle Ring Used For?

The BR2T075 bridle ring is used to create a clear overhead route for low-voltage cable after its 10×24 thread is connected to a compatible attachment. The open loop allows installers to place cable into the pathway without feeding a full run through a closed fitting. This supports orderly routing while keeping the cable accessible for service work, testing, or modifications.

The ring can guide voice communication cable, data cable, security wiring, access-control wiring, signal cable, and control cable when the pathway is planned according to applicable support and separation requirements. It can be installed above a suspended ceiling, beneath structural members, or along a coordinated route where standard j-hooks may be too large for the bundle or mounting location. Hook and Hanger supplies the BR2T075 bridle ring when crews need compact support points between equipment rooms, work areas, and device locations.

Placement should follow the cable type, bundle size, routing direction, and project specifications. Maintain proper separation from power conductors, keep the pathway clear of sharp edges, and use the correct support method for the installation. This steel loop guides cable but does not replace engineered supports for conduit, tray, raceway, or heavier overhead loads.

What Are the BR2T075 Bridle Ring Specifications?

The BR2T075 bridle ring uses fixed dimensions and materials that make it suitable for compatible threaded attachment systems.

• Loop diameter: 3/4 inch

• Thread profile: Integrated 10×24 machine thread

• Material: Mild carbon steel

• Finish: Zinc-plated protective finish

• Compliance status: RoHS compliant

• Primary use: Low-voltage voice, signal, and control cable routing

• Configuration: Open-loop cable pathway support

The 3/4-inch loop is suitable for narrow, targeted bundles where larger cable-support hardware would not be necessary. Its threaded stem reduces the number of separate components required at the mounting point, helping crews establish consistent pathways in compact ceiling plenums and exposed interior spaces.

How Does the BR2T075 Bridle Ring Connect to Other Fasteners?

The BR2T075 bridle ring connects by threading its 10×24 stem into a compatible female-threaded fitting or overhead attachment. This direct connection allows installers to select an attachment configuration based on the existing structure and project requirements. Before installation, verify the receiving thread, substrate condition, support capacity, and approved installation method.

Typical system configurations include:

• HOKFMP, SSBC, and PBC beam attachments: These assemblies can provide attachment to beam flanges up to 3/4 inch thick. Compatible beam clamps create an overhead support point without drilling into the structural member.

• Bat Wing clips: Pair the ring with Bat Wing clips where the pathway needs attachment to structural drop wire in a suspended installation.

• Purlin and angle mounting: Use suitable purlin clips or angle clips where a purlin, joist flange, or structural angle provides the approved support location.

• Wood attachment points: Use properly specified eye lag screws when the substrate and project requirements permit a threaded wood connection.

• Threaded suspension assemblies: Coordinate with approved threaded rod fasteners where an overhead drop or support assembly is required.

• Anchored locations: Select the correct overhead drilling and anchoring method when the installation requires a rated anchor in concrete or another approved substrate.

• Elevated installations: Use suitable extension poles and installation tools only where the work method and hardware arrangement permit safe placement from the floor.

These configurations allow the BR2T075 bridle ring to fit into a planned support system without requiring one mounting method throughout the building. The selected fastener anchors to the structure, while the ring establishes the cable-guiding loop.

Why Use a Zinc-Plated Steel Bridle Ring on Commercial Jobsites?

Mild carbon steel gives the BR2T075 bridle ring the rigidity needed for a stable low-voltage cable support point. Its zinc-plated finish provides basic atmospheric corrosion protection for normal dry interior commercial conditions. For installations exposed to persistent moisture, exterior weather, chemical contact, or similarly demanding conditions, select hardware designed for that environment.

The open-loop design supports efficient cable placement. Installers can place a small bundle into the ring without disassembling a closed pathway fitting, which helps when routing around existing mechanical, electrical, and plumbing services. The compact profile also limits congestion above finished ceilings where several trades share restricted overhead space.

For purchasing teams and field crews, the small steel form supports straightforward shipping, storage, and bulk distribution across multiple project areas. Standardized thread geometry helps foremen coordinate the BR2T075 bridle ring with the clips, attachments, and suspension hardware specified for each installation zone.

Order the BR2T075 Bridle Ring From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and pre-cut machine thread compatibility of this specific loop into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your BR2T075 bridle ring inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
