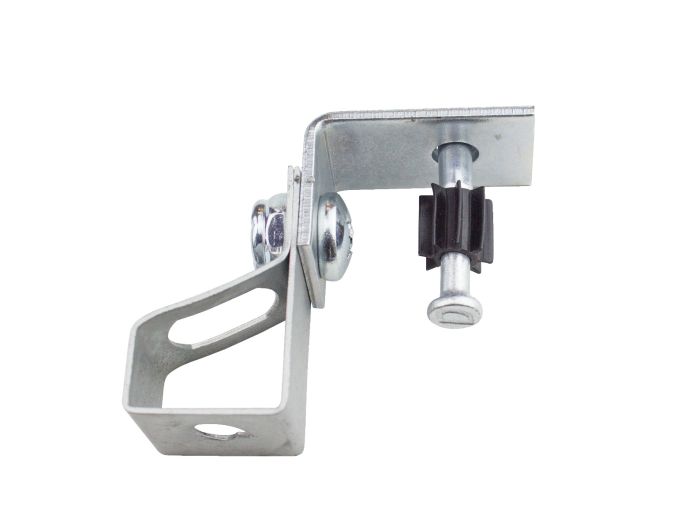

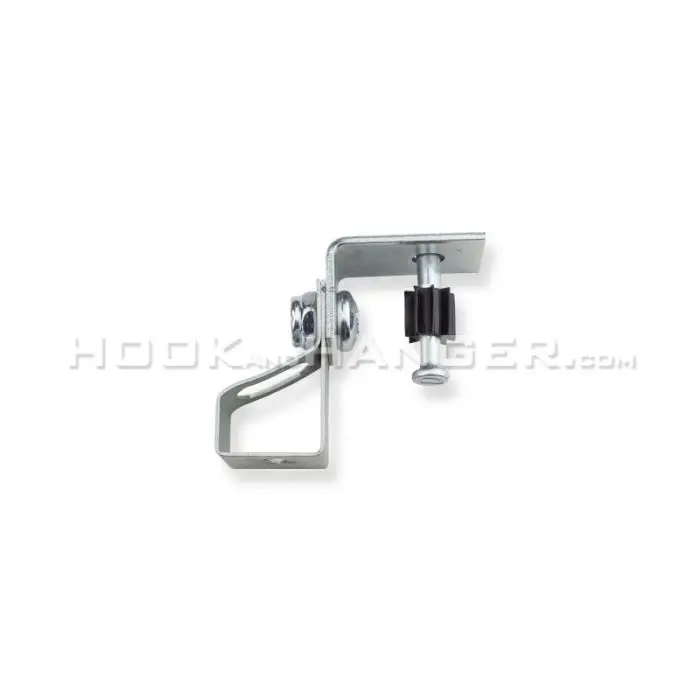

14TIPA 1/4" Rod Hanger with Clip & Pin

The 14TIPA 1/4" Rod Hanger with Clip & Pin is a pre-assembled spring steel and steel fastener that combines a 1/4" threaded impression with an integrated hardened pin. It is designed to suspend 1/4" threaded rod from horizontal concrete, steel, or composite metal decking, creating a dependable, rapid-install structural anchor point for overhead assemblies and cable management pathways. We distribute this jobsite-ready hardware nationwide for datacom and interior construction crews.

Because the pin and hanger arrive as one assembly, installers can establish a rod drop without sourcing a separate anchor, clip, or connecting fastener. The 14TIPA 1/4" Rod Hanger with Clip & Pin has a Geomet finish for durable interior service and is assembled in the USA with global components.

What Is the 14TIPA 1/4" Rod Hanger with Clip & Pin Used For?

Standard overhead rod installation can require drilling, hole cleaning, anchor setting, and separate connection hardware. This pre-assembled hanger combines the required attachment functions in one ready-to-install component.

• Suspends 1/4" threaded rod vertically from approved horizontal concrete, steel, or composite metal decking.

• Provides a direct overhead attachment point for compatible ceiling and cable-support assemblies.

• Uses an integrated pin that can be installed with a compatible powder-actuated or single-shot gas-actuated tool.

• Attaches without extra substrate connection hardware, reducing loose parts handled at elevation.

• Keeps the 1/4" threaded impression accessible after fastening so the specified rod can be inserted directly into the hanger.

• Supports repeatable layouts with multiple rod drops placed at controlled intervals.

The substrate, tool, power level, embedment, and supported load must match project specifications. Installers must follow fastening-tool instructions, applicable requirements, and all jobsite safety procedures.

What Are the 14TIPA 1/4" Rod Hanger with Clip & Pin Specifications?

These details help your team confirm rod compatibility, tool setup, packaging, and placement requirements before installation.

• Product Code: 14TIPA

• Material: Spring Steel & Steel

• Finish: Geomet

• Pin Length: 1 1/16"

• Shank Diameter: 0.157"

• Threaded Impression: 1/4"

• Box Quantity: 100

Spring steel forms the threaded hanger connection, while the steel pin creates the substrate attachment. The Geomet finish provides a durable protective layer for interior commercial conditions. Each box contains 100 pre-assembled units for organized staging and controlled issue to installation crews.

How Does the 14TIPA 1/4" Rod Hanger Attach to Overhead Structures?

The installer positions the hanger against the approved horizontal substrate and drives the integrated pin with a compatible powder-actuated or gas-actuated tool. The pin fastens into concrete, steel, or composite metal decking while the hanger remains oriented below the surface. Once the attachment has been checked, 1/4" threaded rod is turned into the formed impression to create the required vertical drop.

For installers evaluating this hardware alongside standard overhead drilling and anchoring operations, the 14TIPA 1/4" Rod Hanger with Clip & Pin maximizes installation speed by removing separate drilling and anchor-setting steps where the specified substrate and fastening method permit direct attachment. Fewer individual parts also simplify work from a lift or approved access platform.

A project may still require beam clamps where rod drops connect to structural flanges or angle clips where the layout calls for bracketed attachment. Selecting the correct fastener for each surface creates a complete structural pathway without forcing one connection method across unlike conditions.

Why Use the 14TIPA 1/4" Rod Hanger with Clip & Pin in Commercial Environments?

Interior commercial builds often provide limited working room above a suspended ceiling. A rapid, single-shot attachment reduces time spent handling separate parts in that restricted space and gives crews flexibility where rod-drop locations repeat. The compact assembly also improves inventory control because the pin and threaded hanger are issued under one product code.

The 14TIPA 1/4" Rod Hanger with Clip & Pin supports efficient estimating, box-level staging, submittal preparation, and consistent installation procedures. The final assembly must still comply with approved drawings, load criteria, substrate requirements, fastening-tool instructions, and applicable codes.

We also supply purlin clips for metal framing, j-hooks for supported cable runs, extension poles for elevated tool access, eye lag screws for compatible wood or metal applications, and threaded rod fasteners for alternate attachment conditions. These options help crews match each support point to the structure, access method, and project documents.
