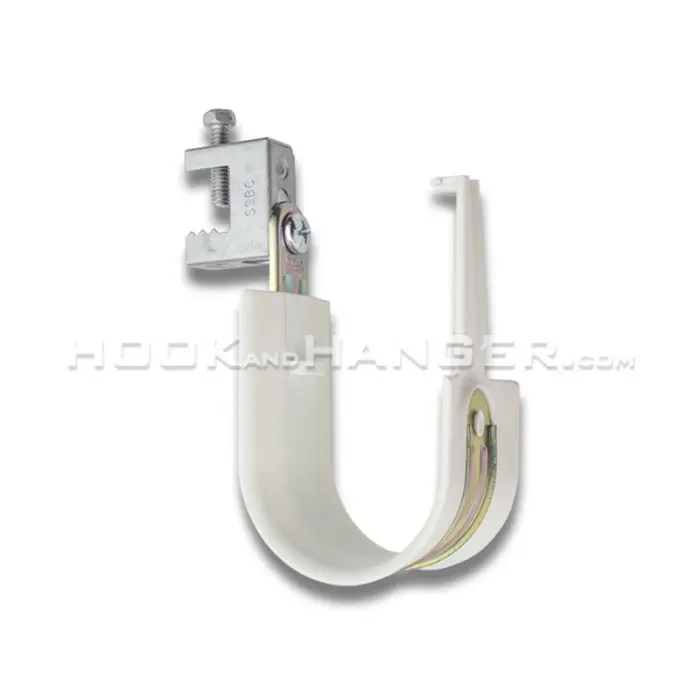

HPHSSBC Series J-Hook - Composite Wide Base Hook with screw-on spring steel beam clamp for flanges up to 1/2" thick by Doc's Industries Inc.

Data cabling needs a pathway that supports its weight without tight turns, jacket abrasion, or loose field-added retention. The HPHSSBC cable support combines a wide, burr-free 2-inch plastic base with a high-strength metal backbone, giving structured cabling a smooth contact surface and a rigid attachment point. Hook and Hanger supplies these components for organized cable management in commercial ceilings and air-handling spaces.

The HPHSSBC cable support is designed for sensitive Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic lines. Its hybrid construction provides a broad cable-bearing base and a heavy-duty structural anchor in one component. Each support is cULus listed and RoHS compliant for communications installations where compliance and physical cable protection matter.

What Is the HPHSSBC Cable Support Used For?

The HPHSSBC cable support creates a controlled overhead pathway for low-voltage and communications cabling. Instead of resting bundles on narrow steel supports or using wire loops, its plastic base distributes contact across a wider surface. This reduces point loading on cable jackets while the metal backbone transfers load to the selected attachment.

An integrated snap-lock retainer latch closes over the bundle after cables are placed in the support. It replaces wire retainers, cable ties, or hook-and-loop wraps that take time to fit at elevation and remove during adds or changes. Our hardware line helps crews keep pathways contained while retaining access for inspection, testing, and future pulls.

A 3.57-inch average bend radius gives the HPHSSBC cable support the geometry needed to guide cables without sharply forcing the bundle. Maintaining this radius helps limit strain on copper conductors and fiber pathways, reducing the risk of signal degradation, crosstalk, and performance loss from compressed or over-bent cable. It provides a clean route for communication lines that must remain separated from power systems.

What Are the HPHSSBC Cable Support Specifications?

The HPHSSBC cable support is available in 1-inch, 2-inch, 3-inch, and 4-inch support diameters to match pathway capacity to cable count and ceiling space. Listed capacities use a conservative 70% fill rate and include a 3-to-1 safety factor on load tolerances.

• HPH16SSBC: 1.07 sq. in. area | 1" diameter | Capacity: 20 Cat 5e, 15 Cat 6, 10 Cat 6A | UL Load Rating: 20 lbs. (88.96 N) | Package Qty: 25 | Weight: 4 lbs.

• HPH32SSBC: 3.97 sq. in. area | 2" diameter | Capacity: 90 Cat 5e, 60 Cat 6, 35 Cat 6A | UL Load Rating: 17 lbs. (75.62 N) | Package Qty: 25 | Weight: 6 lbs.

• HPH48SSBC: 9.26 sq. in. area | 3" diameter | Capacity: 200 Cat 5e, 150 Cat 6, 80 Cat 6A | UL Load Rating: 20 lbs. (88.96 N) | Package Qty: 25 | Weight: 11 lbs.

• HPH64SSBC: 15.48 sq. in. area | 4" diameter | Capacity: 330 Cat 5e, 220 Cat 6, 140 Cat 6A | UL Load Rating: 17 lbs. (75.62 N) | Package Qty: 25 | Weight: 13 lbs.

Capacity figures are a planning baseline, not a substitute for confirming actual cable diameter, bundle composition, attachment spacing, local code requirements, or engineered load conditions. Hook and Hanger recommends selecting the support size before pulling cable so crews do not overfill a pathway or force bundles through an undersized opening.

How Does the HPHSSBC Cable Support Attach to Structure?

The metal backbone of the HPHSSBC cable support assembles to specialized attachments using a 1/4"-20 x 3/8" bolt and matching nyloc nut. This adapts the same cable-bearing body to suitable overhead support methods.

• Direct attachment to a compatible overhead structure where the selected fastener and substrate are approved for the load.

• Connection to structural accessories below steel, concrete, wood, or framing while maintaining planned cable elevation.

• Integration with existing support methods where the pathway must navigate obstructions, services, or changes in ceiling height.

• Flexible use for crews that normally depend on overhead drilling and anchoring or traditional mechanical fasteners to establish support points.

We supply attachment hardware that helps contractors configure consistent runs rather than field-improvising each route. Confirm attachment selection, spacing, and substrate suitability before installation.

Why Use Hybrid J-Hooks in Plenum Spaces?

Plenum spaces above a suspended ceiling require pathway components that meet applicable material and safety requirements while protecting the cables they carry. The HPHSSBC cable support uses plenum-rated plastic in its broad base for air-handling spaces, with a rigid metal member that supports the assembly at the structure. It is also TIA compliant, supporting installations where pathway layout, cable support, and bend-radius control must align with telecommunications standards.

The smooth plastic surface reduces abrasion risk from rough edges and narrow all-metal contact points. The snap-lock latch contains the bundle without loose ties or improvised wire retainers in the ceiling cavity. White, red, blue, and black options help crews distinguish circuits, systems, zones, or installation phases. We stock these options for rapid material identification and coordinate nationwide shipping for scheduled project deliveries.

Hook and Hanger also supplies purlin clips, j-hooks, extension poles, eye lag screws, angle clips, beam clamps, and threaded rod fasteners for the structural side of an overhead cable pathway. Using compatible supports and attachment hardware lets you respond to varying ceiling conditions without changing the cable-protection approach. Review each component's listed load rating and intended installation method before use.

Order HPHSSBC Cable Supports From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced hybrid material compatibility of the HPHSSBC cable support into project plans, you establish an efficient installation path backed by a specialist team focused on practical hardware solutions.

To purchase HPHSSBC cable support inventory or explore alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk-order assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
