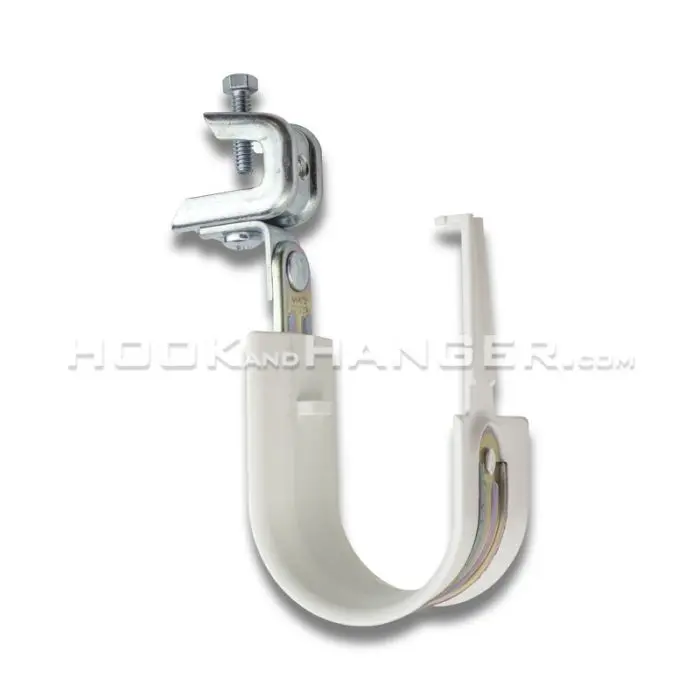

HPHACPBC Series J-Hook - Composite Wide Base Hook with screw-on steel press beam clamp for flanges up to 1/2" thick, swivels 360° by Doc's Industries Inc.

The HPHACPBC cable support combines a smooth, 2-inch-wide plastic base, a rigid metal backbone, and a pre-assembled heavy-duty beam clamp attachment. Hook and Hanger supplies this assembly for overhead cable management above ceilings and along structural steel. Its wide, burr-free bearing surface protects cable jackets, while the steel section provides a fixed structural anchor.

These components are designed for Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic cabling where pathway geometry and jacket protection matter. Each HPHACPBC cable support provides a broad cable base and a heavy-duty structural anchor in one assembly. They are cULus listed and RoHS compliant for structured-cabling work that requires documented material and load characteristics.

What Is the HPHACPBC Cable Support Used For?

The HPHACPBC cable support creates supported pathways for horizontal low-voltage and communications cabling in commercial, institutional, and light-industrial buildings. Its hybrid design separates two functions: the plastic base carries the bundle across a smooth contact area, while the metal backbone transfers load to the attachment point. This is useful where standard metal j-hooks place jackets against narrower edges or where separate mounting hardware adds installation steps.

A built-in snap-lock retainer latch closes over the bundle after placement. Crews do not need to field-install wire loops, cable ties, or hook-and-loop wraps simply to keep cable within the pathway. The latch retains the bundle during pulls, additions, and overhead routing while preserving access for later changes.

The 3.57-inch average bend radius gives high-speed copper and fiber lines a broad turn rather than a sharp transition. This helps prevent physical strain, jacket damage, pair deformation, crosstalk, and signal degradation associated with excessive bending. The HPHACPBC cable support should be sized with the planned route and the cable manufacturer’s minimum bend-radius requirements in mind.

What Are the HPHACPBC Cable Support Specifications?

The HPHACPBC cable support is available in four support diameters. Capacities use a conservative 70% fill rate and include a 3-to-1 safety factor on load tolerances. Confirm cable outside diameter, bundle makeup, future capacity, orientation, and project requirements before selecting a size.

• HPH16ACPBC: 1.07 sq. in. area; 1-inch diameter; 20 Cat 5e, 15 Cat 6, or 10 Cat 6A cables; UL load rating: 20 lbs. (88.96 N); package quantity: 25; weight: 5 lbs.

• HPH32ACPBC: 3.97 sq. in. area; 2-inch diameter; 90 Cat 5e, 60 Cat 6, or 35 Cat 6A cables; UL load rating: 20 lbs. (88.96 N); package quantity: 25; weight: 6 lbs.

• HPH48ACPBC: 9.26 sq. in. area; 3-inch diameter; 200 Cat 5e, 150 Cat 6, or 80 Cat 6A cables; UL load rating: 20 lbs. (88.96 N); package quantity: 25; weight: 11 lbs.

• HPH64ACPBC: 15.48 sq. in. area; 4-inch diameter; 330 Cat 5e, 220 Cat 6, or 140 Cat 6A cables; UL load rating: 20 lbs. (88.96 N); package quantity: 25; weight: 13 lbs.

Keep cable fill within the stated planning method so bundles remain accessible for inspection, additions, and service.

How Does the HPHACPBC Cable Support Attach to Structure?

The pre-installed steel mounting assembly uses an integrated press-on style beam clamps fastener. It secures the HPHACPBC cable support directly to suitable steel building frameworks, structural beams, and flanges. The clamp establishes the connection without a separate hanger and positions the pathway at the required routing elevation.

• Verify flange condition, available clearance, installed assembly load requirements, and the approved placement location.

• Press the mounting assembly onto the suitable beam or flange according to installation instructions, then confirm that it is fully seated and locked.

• Use it where direct steel attachment is appropriate. This can reduce field overhead drilling and anchoring, which can add permits, dust control, tools, and concealed-service review.

• Do not drill or weld the clamp assembly. Its press-on configuration locks to the applicable structural steel profile without those field operations.

• Plan elevated access before work begins. Suitable extension poles and approved access equipment can assist cable placement and retainer-latch closure along high routes.

• When the structure needs another attachment method, assess the support condition and pathway design. Do not treat this assembly as interchangeable with angle clips or unrelated mounting hardware.

Direct attachment can simplify pathway installation in open-deck and ceiling-plenum work while supporting consistent spacing across long cable runs.

Why Use Hybrid J-Hooks in Plenum Spaces?

Plenum areas above a suspended ceiling require support components that meet the project’s air-handling and material requirements. The HPHACPBC cable support is plenum rated and TIA compliant, supporting specifications for appropriate air-handling spaces when the complete installation follows local code, project documents, and authority requirements. Its cULus listing aids documentation review, and RoHS compliance addresses restricted-substance requirements often included in commercial specifications.

The smooth, wide plastic contact surface reduces direct abrasion points compared with narrow, unfinished metal contact surfaces. The metal backbone maintains the structural role, separating cable support from structural attachment. Red, blue, and black options help crews identify approved system pathways, such as data, voice, security, and access control, during installation and later service.

We offer bulk shipping and nationwide distribution to help purchasing teams coordinate support sizes and colors across phased work. Hook and Hanger also supplies hardware for other structural conditions when a beam-clamp attachment is not the specified method.
