HPHEC14 Series J-Hook - Composite Wide Base Hook with 1/4"-20 Female Thread Eye Coupling by Doc's Industries Inc.

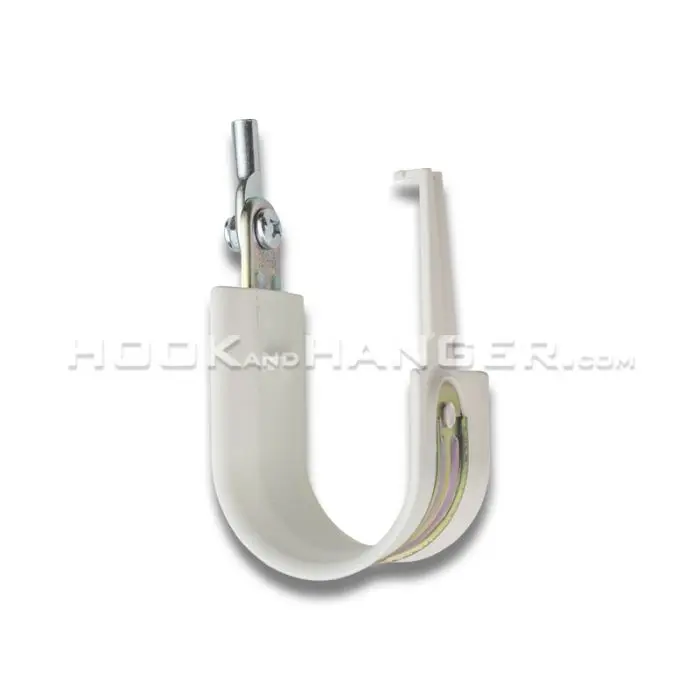

The HPHEC14 cable support pairs a slick, burr-free 2-inch-wide plastic base with a high-strength metal backbone and pre-assembled 1/4"-20 female threaded attachment point. Hook and Hanger supplies this hybrid component for structured cable management where a smooth cable pathway is needed below the deck without giving up a dependable overhead connection. It is designed for sensitive Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber-optic networks, combining a wide cable-bearing base with a heavy-duty structural anchor. It is cULus listed and RoHS compliant.

We stock this hardware for communication pathways that must remain organized, accessible, and protected. Its composite base reduces direct contact between cable jackets and narrow metal edges, while the metal section transfers load to approved overhead hardware. This suits commercial interiors, data rooms, schools, health-care facilities, and other low-voltage installations.

What Is the HPHEC14 Cable Support Used For?

The HPHEC14 cable support routes and retains low-voltage communication cable above a suspended ceiling, under open-structure decks, and through spaces where cable requires dedicated support rather than resting on ceiling grid, ductwork, or piping. Its open pathway lets technicians load and inspect bundles without conduit. Compared with narrow all-metal j-hooks, the wide plastic base distributes contact and supports the stated bend radius.

A built-in snap-lock retainer latch closes after the cable bundle is placed, holding the run without separate wire loops, cable ties, hook-and-loop wraps, or field-fitted retaining parts. This limits overhead handling and simplifies adds, moves, and changes. Its 3.57-inch average bend radius helps avoid tight turns and jacket pressure that can contribute to signal loss, crosstalk, or fiber performance issues. Hook and Hanger offers the HPHEC14 cable support for work that requires both cable protection and a threaded overhead mount.

What Are the HPHEC14 Cable Support Specifications?

We offer four HPHEC14 cable support diameters—1 inch, 2 inches, 3 inches, and 4 inches—for planned bundle volume:

• HPH16EC14: 1.07 in² area; 1-inch diameter; capacity for 20 Cat 5e, 15 Cat 6, or 10 Cat 6A cables; UL load rating of 20 lbs (88.96 N); package quantity of 25; package weight of 4 lbs.

• HPH32EC14: 3.97 in² area; 2-inch diameter; capacity for 90 Cat 5e, 60 Cat 6, or 35 Cat 6A cables; UL load rating of 20 lbs (88.96 N); package quantity of 25; package weight of 5 lbs.

• HPH48EC14: 9.26 in² area; 3-inch diameter; capacity for 200 Cat 5e, 150 Cat 6, or 80 Cat 6A cables; UL load rating of 20 lbs (88.96 N); package quantity of 25; package weight of 10 lbs.

• HPH64EC14: 15.48 in² area; 4-inch diameter; capacity for 330 Cat 5e, 220 Cat 6, or 140 Cat 6A cables; UL load rating of 20 lbs (88.96 N); package quantity of 25; package weight of 12 lbs.

Capacity calculations use a conservative 70% fill rate and include a 3-to-1 safety factor on load tolerances. These figures help installers select the correct diameter before the pull and reduce bundle compression. Fiber-optic and mixed pathways should follow manufacturer bend-radius requirements, support spacing, and the project standard.

How Does the HPHEC14 Cable Support Attach to Structure?

The HPHEC14 cable support uses a metal backbone with a pre-assembled 1/4"-20 female threaded attachment point. A matching male thread integrates it into an overhead assembly without welding or modifying its plastic cable-bearing surface.

• Attach directly to correctly sized 1/4"-20 threaded rod, hanger bolts, or mating threaded hardware. Our threaded rod fasteners support related suspended hardware.

• Use a suitable threaded stud or hanger from a concrete deck under the approved anchoring method. Overhead drilling and anchoring tools can support deck attachment where required.

• Spin the female thread onto an installed hanger before the cable pull. Extension poles can help crews reach compatible overhead points where the site method permits.

• Coordinate the attachment with the building structure. Beam clamps, purlin clips, angle clips, and eye lag screws may form part of the support plan when their rated configuration provides the correct mating threaded connection. Verify thread size, load rating, base material, and installation instructions before combining components.

This arrangement reduces assembly steps at ceiling height. Installers mount the pathway on prepared hangers, load cable through the open side, and close the retainer latch. Hook and Hanger provides nationwide project shipping.

Why Use Hybrid J-Hooks in Plenum Spaces?

Plenum spaces require components appropriate for the air-handling environment and the project’s applicable fire and material requirements. The HPHEC14 cable support is plenum rated, TIA compliant, cULus listed, and RoHS compliant, supporting specification review for drop-ceiling and open-ceiling communication pathways. The plastic base protects cable contact, while the metal backbone provides the threaded structural connection.

Red, blue, and black color options can help crews distinguish circuits, systems, zones, or project phases. The HPHEC14 cable support supports cable pulls and visibility during inspection or maintenance. We stock bulk package quantities and coordinate shipping for jobsite releases. Confirm pathway design, cable fill, support spacing, and attachment against approved drawings and applicable requirements.

Order HPHEC14 Cable Supports From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced hybrid material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your HPHEC14 cable support inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk ordering assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
