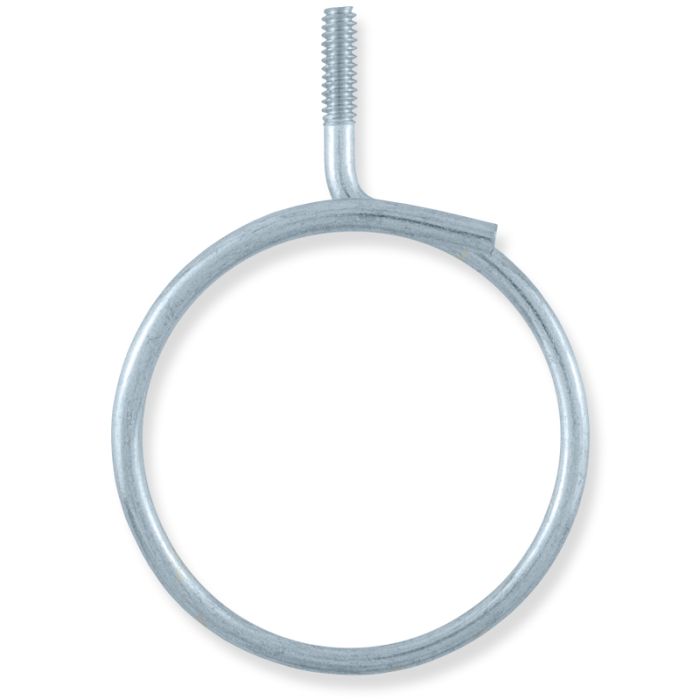

Machine Thread Bridle Ring 10-24 x 2" - BR2T200 by Doc's Industries Inc.

The BR2T200 bridle ring provides a direct overhead pathway point for low-voltage cable in commercial installations. Hook and Hanger supplies this 2-inch diameter loop with a 10×24 machine thread, zinc-plated mild carbon steel construction, and a RoHS-compliant finish that satisfies eco-friendly material requirements. We stock it for installers who need compact hardware that integrates cleanly into organized cable management layouts without relying on a multi-piece support assembly.

Open ceiling areas can leave voice, signal, and control cable runs exposed to sag, crowding, and inconsistent routing. The BR2T200 bridle ring gives your crew a defined open-loop guide that can be connected at the required support point, including above a suspended ceiling where clear pathways and coordinated trades matter. Its threaded profile allows the ring to spin directly into compatible support hardware, helping you establish a repeatable cable route across the work area.

What Is the BR2T200 Bridle Ring Used For?

The BR2T200 bridle ring is used to guide low-voltage cable after it leaves a tray, conduit transition, equipment area, or main pathway. The 10×24 machine thread connects the loop to a compatible receiver or attachment assembly. Once installed, the 2-inch opening keeps cable bundles contained while allowing installers to place and pull approved communications wiring through a defined route.

This hardware is appropriate for voice communication, data, security, access control, fire alarm, audiovisual, and other signal or control cabling when the installation design permits open-loop support. It helps keep loosely supported runs from drifting across the ceiling plane. Where pathway changes need to be coordinated, a BR2T200 bridle ring can complement j-hooks and other listed pathway components rather than replacing the support method required for the cable type and bundle size.

Review spacing, cable fill, bend radius, load, and local code requirements before installation. It is a cable guide, not a substitute for structural design. On elevated work, proper overhead drilling and anchoring establish the supporting attachment, while compatible extension poles can help crews reach designated locations from below where site conditions allow.

What Are the BR2T200 Bridle Ring Specifications?

• Model: BR2T200 bridle ring

• Loop diameter: 2 inches

• Thread profile: 10×24 machine thread

• Base material: Mild carbon steel

• Surface finish: Zinc plated for basic atmospheric corrosion protection in interior environments

• Compliance status: RoHS compliant

• Primary function: Open-loop routing support for low-voltage voice, signal, and control cable

• Installation role: Threads into compatible attachment hardware to create a cable pathway point

How Does the BR2T200 Bridle Ring Connect to Other Fasteners?

The threaded end of the BR2T200 bridle ring is intended to mate with compatible support components selected for the structure and pathway layout. Confirm thread engagement, attachment condition, overhead load limits, and installation requirements before placing cable. The ring should be positioned so the loop faces the intended cable path and does not introduce sharp turns or interference with other building systems.

• HOKFMP, SSBC, and PBC beam attachments: These configurations provide an overhead interface for steel members up to 3/4 inch thick, allowing the ring to establish a direct cable guide from the member when the selected attachment is suitable for the flange and loading conditions.

• Bat Wing clips: These can provide a structural drop-wire attachment point when the cable route needs to descend from a supported wire system.

• Beam-supported layouts: Use compatible beam clamps where the steel profile, flange thickness, and approved attachment method call for a clamped connection rather than drilling.

• Angled framing: Appropriate angle clips can create a mounting interface at framing transitions where the cable pathway must change direction or elevation.

• Wood framing: Selected eye lag screws can provide an attachment location in suitable wood members, subject to substrate condition and the installation design.

• Threaded suspension assemblies: Matching threaded rod fasteners and related accessories may be used where the specified assembly requires a threaded overhead connection.

• Roof and joist support points: In buildings with suitable steel framing, compatible purlin clips can help establish a pathway attachment without creating a separate drilled connection.

Why Use a Zinc-Plated Steel Bridle Ring on Commercial Jobsites?

Mild carbon steel gives the BR2T200 bridle ring the rigid form needed to maintain an open cable loop during installation and normal interior service. The zinc-plated finish adds basic protection against atmospheric corrosion in dry, interior commercial environments. It is not intended to solve exposure issues associated with highly corrosive, wet, outdoor, or chemically active locations; choose hardware suited to those conditions.

The open loop improves access during cable placement because installers can guide bundles into the pathway without assembling a closed raceway at every support point. This can simplify routing around ductwork, piping, lighting supports, and structural members. The BR2T200 bridle ring also keeps the route visible for inspection and makes it easier to identify bundled communication cabling during later moves, additions, or maintenance work.

Hook and Hanger supplies this hardware for contractors and purchasing teams that need consistent components for repeated interior installations. Zinc-plated steel provides a practical, cost-effective material and finish combination for many planned indoor cable pathways. We support nationwide shipping and bulk distribution so crews can align their hardware supply with the project schedule, while still verifying each installation against applicable codes, manufacturer instructions, and the engineered requirements of the supporting structure.

Order the BR2T200 Bridle Ring From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed for demanding jobsites. By integrating the exact engineering, steel construction, and pre-cut machine thread compatibility of this loop into your project plans, you can establish an efficient installation with support from a specialist team focused on practical hardware solutions.

To purchase BR2T200 bridle ring inventory or explore alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk-order assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
