Machine Thread Bridle Ring ¼"-20 x 1 1/4" - BR4T150 by Doc's Industries Inc.

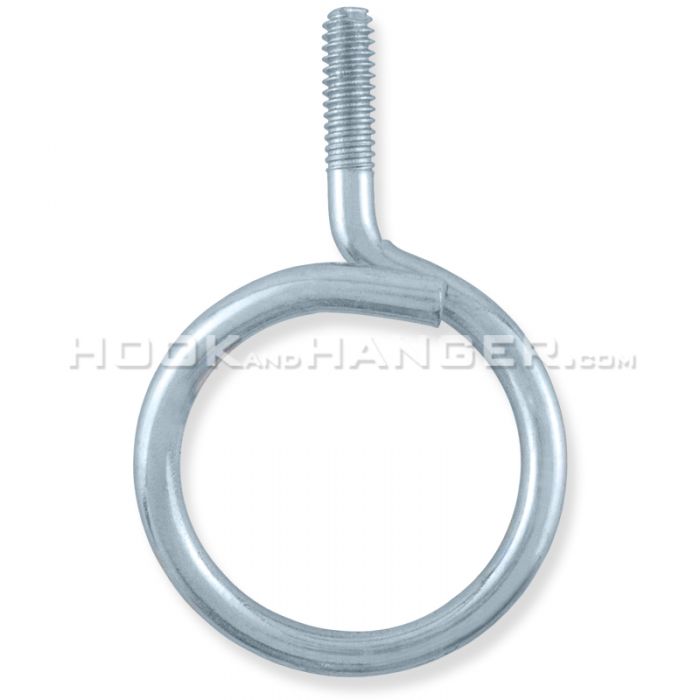

The BR4T150 bridle ring provides a threaded, open-loop support point for routing voice, signal, and control cabling through interior commercial spaces. Hook and Hanger supplies this 1 1/4-inch diameter ring with a 1/4"×20 machine thread, zinc-plated mild carbon steel construction, and a compact profile suited to structured cable management layouts above ceilings, corridors, telecom rooms, and other low-voltage pathways.

The zinc-plated finish provides basic protection for steel in typical dry indoor environments, while the RoHS-compliant hardware supports projects with restricted-substance requirements. Installers can use the BR4T150 bridle ring as a direct threaded connection point when a compatible overhead attachment, drop wire, or mounting assembly is already in place.

What Is the BR4T150 Bridle Ring Used For?

The BR4T150 bridle ring creates an organized, open pathway for low-voltage cable bundles where the route must remain supported and accessible above the finished space. Its 1/4"×20 machine thread turns into compatible threaded hardware, creating a direct mechanical connection without a separate nut-and-bolt assembly at the ring. This arrangement can be useful along a suspended ceiling grid, in open-plenum areas, and where cable runs move around building services.

Once installed at the specified spacing, the ring guides communication, data, security, access-control, audio, and related control cables while keeping the run separated from unrelated services. The open loop lets installers place or remove a cable bundle during phased work without pulling it through a closed fitting. For smaller or differently shaped bundle routes, j-hooks may be selected where their form and capacity better match the system design. The BR4T150 bridle ring is for cable support only, not conduit, pipe, personnel loads, or other unapproved loads.

Confirm the substrate, load path, cable weight, and applicable project requirements before installation. Depending on the structure, the work may involve approved overhead drilling and anchoring methods or a non-drilled beam, purlin, or drop-wire attachment. The selected fastener must match the 1/4"×20 thread and suit the installed load.

What Are the BR4T150 Bridle Ring Specifications?

The BR4T150 bridle ring combines basic dimensions and material features for mid-sized cable-routing applications. Confirm clearance, cable bundle size, attachment type, and support spacing against the drawings before field installation.

• Ring diameter: 1 1/4 inches, providing an open loop for organized low-voltage cable routing.

• Machine thread: 1/4"×20 profile for direct connection to compatible threaded attachment hardware.

• Material: Mild carbon steel for a rigid overhead cable-support component.

• Finish: Zinc-plated surface for basic atmospheric corrosion protection in suitable interior environments.

• Compliance status: RoHS-compliant hardware for projects with restricted-substance requirements.

The BR4T150 bridle ring should be selected only after confirming that its loop size and allowable loading suit the intended cable bundle. Do not overfill the opening or rely on one support point where multiple properly spaced supports are required.

How Does the BR4T150 Bridle Ring Connect to Other Fasteners?

The machine thread gives installers several ways to integrate the BR4T150 bridle ring into an overhead cable-support layout. Follow the attachment manufacturer’s instructions, project drawings, and requirements for the structural member receiving the load.

• Steel-beam attachment: Use with HOKFMP, SSBC, or PBC beam attachments specified for structural members up to 3/4 inch thick. These components provide an option where drilling is not selected, and the site condition permits a properly installed beam clamps assembly.

• Drop-wire attachment: Connect through approved Bat Wing clips where the layout uses structural drop wire. Select and install the clip and wire for the supported cable load and attachment condition.

• Purlin and angled steel conditions: Coordinate with compatible purlin clips or angle clips where the ring must drop from a purlin flange, joist, or angled structural member. Confirm flange thickness and fastening compatibility before ordering.

• Threaded suspension layouts: Use compatible threaded rod fasteners only where the threaded connection, support hardware, and design configuration suit the cable pathway. Do not mix thread sizes or force cross-threaded connections.

• Wood framing conditions: A compatible 1/4"×20 threaded interface may be established through approved eye lag screws or related mounting hardware where the structure and design call for a wood attachment.

• Elevated installation access: Use appropriate access equipment and approved extension poles when the attachment method and site procedure allow tool-assisted installation from below.

Why Use a Zinc-Plated Steel Bridle Ring on Commercial Jobsites?

A zinc-plated mild carbon steel ring provides rigidity and basic corrosion resistance for dry interior commercial work. It is not intended for continuously wet, corrosive, or exterior environments. Review environmental exposure before selection.

The 1 1/4-inch loop provides a middle ground between small point supports and larger pathway hardware. It can keep moderate cable bundles elevated and organized without the bulk of a more complex assembly. The BR4T150 bridle ring also allows technicians to add, inspect, or adjust cables from the open side of the loop, which is useful during coordinated fit-out work above a suspended ceiling or in open ceiling zones.

Installation efficiency comes from the preformed machine thread. Rather than building a loop from separate connectors, the installer aligns the ring with the compatible attachment and turns it into place. Hook and Hanger stocks overhead support hardware for nationwide shipping and bulk distribution, helping purchasing teams standardize recurring cable-support details. The BR4T150 bridle ring is suitable when drawings call for a direct threaded loop with a mid-sized opening and zinc-plated steel construction.

Order the BR4T150 Bridle Ring From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts for demanding jobsites. By including the product’s 1 1/4-inch loop, zinc-plated mild carbon steel construction, and 1/4"×20 machine-thread compatibility in your project plans, you establish an efficient cable-support detail backed by a specialist team focused on practical hardware solutions.

To purchase BR4T150 bridle ring inventory or explore compatible overhead support hardware, visit hookandhanger.com today. For technical support, bulk-order assistance, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
