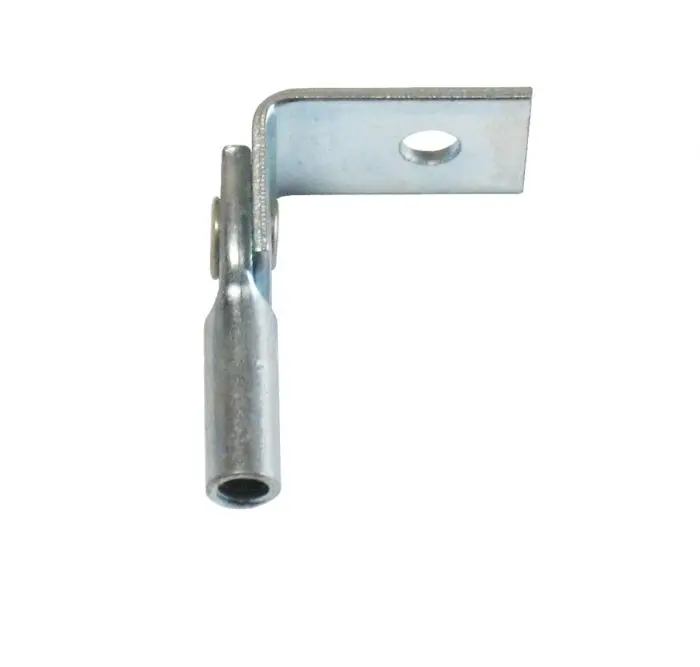

FRACB 90-Degree Angle Clip with 1/4″ x 20 Female Threaded Eye Coupling (100 Pack)

The FRACB Angle Clip with Eye Coupling is a 90-degree support fitting with an integrated 1/4"-20 female threaded eye coupling. Hook and Hanger supplies this component for cable management work where contractors need a direct structural attachment for threaded rod. Its configuration is designed for code-compliant structural anchoring and provides a dependable way to suspend rod without attaching new hardware to existing drop ceiling wires.

The female coupling accepts all lengths of 1/4" x 20 threaded rod, allowing crews to prepare the support assembly before working overhead. The FRACB Angle Clip with Eye Coupling is useful where local codes prohibit using previously installed ceiling wire for added supports. Ground-level preparation also reduces the number of separate tasks completed from ladders or lifts.

What Is the FRACB Angle Clip with Eye Coupling Used For?

The FRACB Angle Clip with Eye Coupling creates a threaded support point for J-Hook pathway drops. It lets installers assemble the rod and support hardware on the ground, move the prepared assembly into position, and fasten it at the ceiling in one rapid operation.

• Builds j-hooks and threaded rod assemblies at ground level before overhead installation.

• Provides a separate structural support where code does not permit attachment to previously installed ceiling wire.

• Accommodates every required length of 1/4" x 20 threaded rod for short or extended overhead pathway drops.

• Establishes a 90-degree connection between the attachment surface and the female threaded eye coupling.

This approach is valuable above a suspended ceiling, where pathways must remain independently supported and coordinated with other building services. Installers can prepare repeatable assemblies, confirm component engagement at floor level, and then complete the ceiling attachment without developing an improvised wire connection in the field.

What Are the FRACB Angle Clip with Eye Coupling Specifications?

We stock the FRACB Angle Clip with Eye Coupling with the following established product details:

• Product Code: FRACB

• Design: 90-degree angle clip profile

• Coupling Integration: 1/4"-20 female threaded eye coupling

• Compatibility: Accommodates all lengths of 1/4" x 20 threaded rod

• Compliance: RoHS Compliant

The specification should be checked against the project drawings, required support spacing, substrate, and governing local code before installation. RoHS compliance supports projects that track restricted substances within specified hardware, while the defined thread size helps crews coordinate compatible rod and support components before shipment to the jobsite.

How Does the FRACB Angle Clip Attach to Overhead Structures?

The FRACB Angle Clip with Eye Coupling is placed on an approved ceiling substrate and secured using the fastening method specified for that structure and project. Once the 90-degree clip is fixed, the 1/4" x 20 rod threads into the female eye coupling to form the pathway drop. The installed clip provides a stable mounting point, but the substrate, fastener selection, loading, and spacing must still follow approved plans and applicable code.

For crews comparing this connection with standard overhead drilling and anchoring, the integrated coupling removes the need to create a separate threaded transition in the field. Other ceiling conditions may require beam clamps or different angle clips, so installers should match the attachment type to the structural member rather than treating existing ceiling grid wire as a support surface. This keeps the pathway hardware separate from elements that were installed only to support the ceiling system.

Why Use the FRACB Angle Clip with Eye Coupling in Commercial Environments?

Commercial interior projects often combine strict ceiling-support rules with limited access above finished spaces. Preparing the J-Hook, threaded rod, and related fittings at ground level reduces overhead handling and helps crews complete each attachment in fewer steps. It also gives foremen a clear component sequence to review before the assembly enters a congested plenum. Using an independent attachment point supports documentation and inspection requirements where an existing ceiling wire cannot accept added hardware.

We also supply purlin clips for compatible structural flanges, individual j-hooks for pathway routing, extension poles for overhead installation tasks, and eye lag screws for approved wood substrates. Our selection includes threaded rod fasteners for coordinating rod-supported layouts across different jobsite conditions. These alternatives allow contractors to select hardware according to the structure, access method, pathway design, and code requirements instead of forcing one attachment method into every area.

Order FRACB Angle Clips with Eye Couplings From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, code-bypassing structure, and advanced material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your FRACB Angle Clip with Eye Coupling inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
