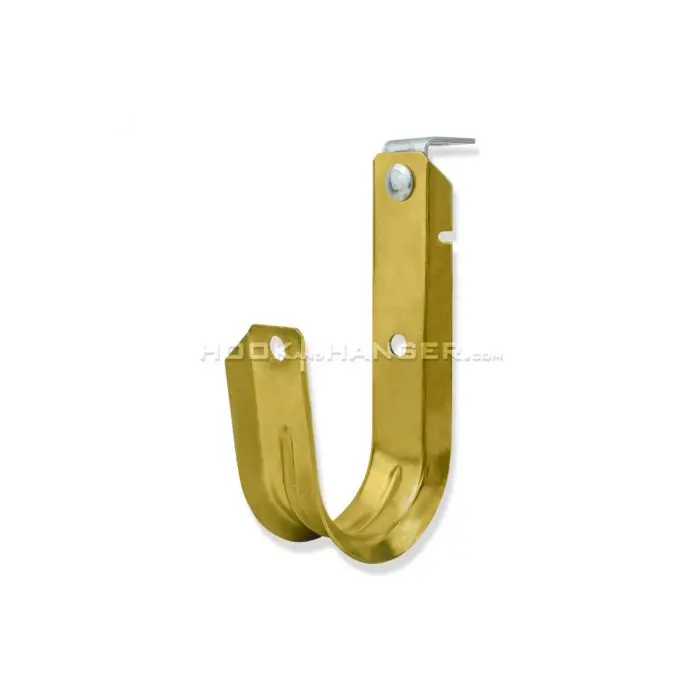

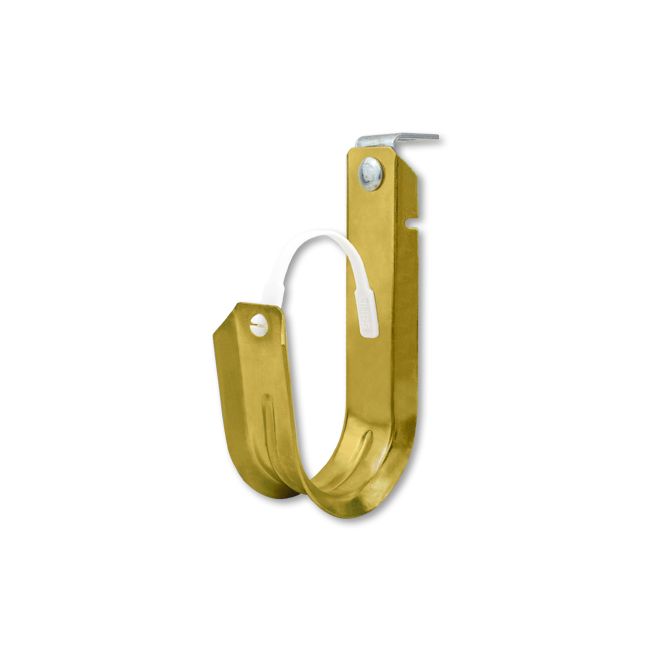

JHAC6 J-Hook Cable Support with 90° Angle Clip - 3/8" hole by Doc's Industries Inc.

The JHAC6 J-Hook Cable Support is a galvanized steel overhead pathway component distributed by Hook and Hanger for structured cabling, data comm, and low-voltage installations. Each support has a yellow zinc chromate finish and a patented 90° angle clip with a 3/8" hole for direct attachment to 3/8" threaded rod drops. We stock this hardware for contractors who need dependable support within organized cable management layouts.

These components are designed for all data comm and low-voltage cables. The JHAC6 J-Hook Cable Support provides a heavy-duty structural anchor that is cULus listed, NEC/TIA compliant, and Plenum-rated for air-handling spaces. Hook and Hanger supplies these supports for crews that need code-aware parts and nationwide distribution.

What Is the JHAC6 J-Hook Cable Support with 90° Angle Clip Used For?

This support creates an overhead cable pathway where low-voltage lines need to be separated, supported, and routed without compression from tie wire or unsupported spans.

• Supports high-speed data, fiber optic, voice, security, and low-voltage cable runs in commercial buildings.

• Uses an integrated 90° angle clip with a 3/8" hole designed specifically for 3/8" threaded rod.

• Helps organize pathways above offices, healthcare facilities, schools, warehouses, and retail areas.

• Provides a metal support option for Plenum-rated work above a suspended ceiling.

• Helps maintain bend radius, cable visibility, and service access for structured cabling.

• Works when installers need a direct threaded rod connection instead of a separate field bracket.

Hook and Hanger supplies this configuration so crews can match hook size to cable volume. The JHAC6 J-Hook Cable Support is useful where structured cabling must remain accessible for inspection, service, and future changes.

What Are the JHAC6 J-Hook Cable Support Specifications?

The product is offered in two size models for different cable volumes. Both versions use galvanized steel construction, a yellow zinc chromate finish, and a patented 90° angle clip design with a 3/8" hole.

• JH-32AC6: 2" Size | Load Capacity: 17 lbs. | Support Capacity: 80 CAT 5e / 2-strand fiber optic, or 50 CAT 6. | Packaging: 100 PCS per box.

• JH-64AC6: 4" Size | Load Capacity: 50 lbs. | Support Capacity: 300 CAT 5e / 2-strand fiber optic, or 185 CAT 6. | Packaging: 25 PCS per box.

• Material: galvanized steel for rigid overhead support in commercial interiors.

• Finish: yellow zinc chromate for corrosion resistance in typical indoor construction environments.

• Design status: patented 90° angle clip configuration for direct threaded rod attachment.

• Compliance profile: UL listed, cULus listed, NEC compliant, TIA compliant, and Plenum-rated.

We offer the JHAC6 J-Hook Cable Support for crews that need capacity, cable count, packaging, and attachment method defined before materials reach the jobsite.

How Does the JHAC6 J-Hook with 90° Angle Clip Attach to Overhead Structure?

The patented angle clip is the defining attachment feature. Instead of requiring a separate field bracket, the clip provides a 90° mounting plane with a 3/8" hole that secures directly to 3/8" threaded rod drops. This lets the installer position the J-hook under the rod and create a stable support point for low-voltage cable pathways.

For installers evaluating support hardware alongside overhead drilling and anchoring operations, this clip provides a stable, integrated mount that can reduce extra handling during layout. Where a project includes existing steel, concrete inserts, trapeze work, or multi-trade coordination, installers may compare this part with beam clamps and other angle clips to select the correct attachment style.

Why Use JHAC6 J-Hook Galvanized Steel Supports in Plenum Spaces?

Plenum spaces require hardware that matches the physical environment and administrative requirements of the project. A Plenum-rated part is important where the area above a ceiling is used as an air-handling pathway. In these locations, cable supports must be selected with attention to code compliance, inspection readiness, and material suitability.

The JHAC6 J-Hook Cable Support gives installers a metal support option for structured cabling systems that must meet NEC and TIA expectations. Its galvanized steel body and yellow zinc chromate finish provide the rigidity needed for overhead work, while the open hook profile keeps cables visible and serviceable.

Hook and Hanger also supplies project hardware for related overhead conditions, including purlin clips, j-hooks, extension poles, eye lag screws, and threaded rod fasteners. These parts help contractors coordinate cable routes across deck types, framing conditions, and threaded rod assemblies while keeping the installation method consistent with the building structure.

Order JHAC6 J-Hook Cable Supports From Hook and Hanger

Choosing Hook and Hanger means equipping your construction crews with dependable, code-compliant overhead support parts designed to perform on demanding jobsites. By integrating the exact engineering, high-tensile structure, and advanced material compatibility of this specific support system into your project plans, you secure an efficient, hassle-free installation backed by a specialist team focused entirely on practical hardware solutions.

To purchase your JHAC6 J-Hook Cable Support inventory or to explore our complete selection of alternative purlin clips, beam clamps, eye lag screws, and threaded rod fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
