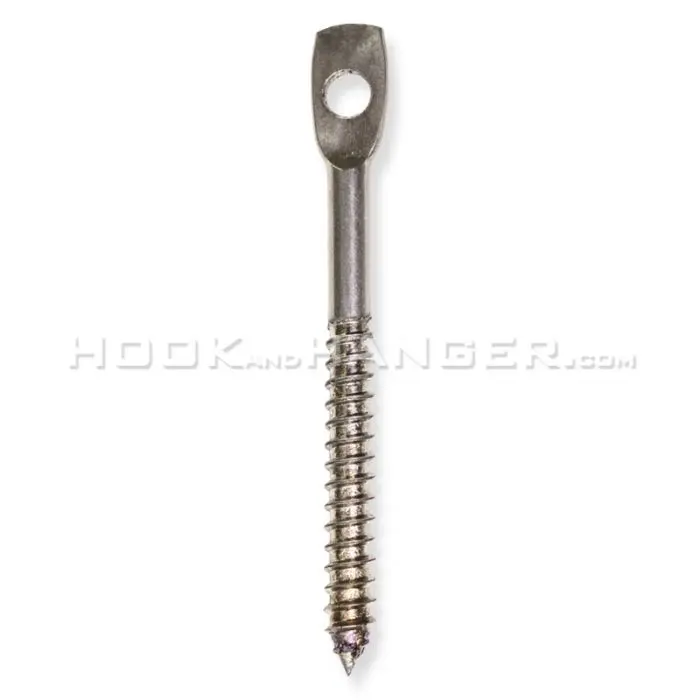

W300CSS 3" 316 Stainless Steel Eye Lag Screw for Wood

The W300CSS eye lag screw provides a corrosion-resistant connection point for ceiling wire or jack chain when overhead support must be anchored into timber in demanding environments. Its 316 stainless steel construction suits salt air, moisture, chemical residue, and other corrosive conditions. The eyelet accepts pre-tied wire or chain, while the wood-threaded shank provides direct fastening for tension-only support.

We supply the W300CSS eye lag screw in commercial boxes of 100 pieces for contractors planning repeated anchor locations across a ceiling area. The 3-inch profile and extended thread section support penetration into suitable wood framing, while the non-magnetic austenitic alloy is relevant where facility specifications restrict magnetic hardware, including specialized medical imaging spaces. Hook and Hanger supplies this hardware for repeatable overhead installations.

Establishing Stable Wiring Paths with the W300CSS Fastener Series

The W300CSS eye lag screw uses Type 316 stainless steel, an austenitic alloy selected for corrosion resistance beyond common general-purpose grades. Chromium at a minimum of 10.5 percent by weight works with nickel, manganese, copper, and molybdenum. When exposed to oxygen, it forms a passive chromium oxide film that can reform after minor surface disturbance, limiting oxidation, metal thinning, and structural degradation.

Molybdenum is useful where airborne salt, industrial moisture, or chloride exposure creates a tougher corrosion condition. For coastal buildings, marine-adjacent facilities, washdown-prone work areas, and exterior-protected timber structures, this alloy helps preserve the anchor point and attached cable management pathway. The alloy is austenitic and non-magnetic in its standard annealed condition. That characteristic can be important in MRI rooms and other sensitive diagnostic or electronic areas, but the facility’s approved-material schedule must control the final selection.

Chloride exposure still requires planning. Enclosed chlorinated indoor pool areas can create conditions associated with stress corrosion cracking. Before specifying the W300CSS eye lag screw in these environments, consult the local Authority Having Jurisdiction (AHJ), project engineer, and facility requirements. Confirm that ventilation, chemical concentration, fastener loading, and inspection provisions are appropriate.

Sizing and Technical Specifications for the W300CSS Eye Lag Screw Series

Use these specifications to match the approved support plan:

• 3-Inch Overall Profile: The total length measures approximately 3 inches for stable penetration into overhead wood sub-surfaces.

• Extended Thread Pitch: At least 1-1/2 inches of deep wood thread helps maximize continuous pull-out resistance under tension.

• 1/4-Inch – 14BSD Gauge Profile: The standardized thread sizing supports compatible installation tooling and predictable engagement.

• Premium 316 Stainless Steel Composition: Marine-grade Type 316 stainless steel resists corrosion and oxidation in demanding conditions.

• Austenitic Non-Magnetic Properties: The austenitic structure supports applications with non-magnetic hardware requirements, such as approved medical diagnostic and sensitive electronic layouts.

• Pre-Tied Capability: A rugged open eyelet permits crews to pre-loop ceiling wire or heavy jack chain before driving.

• Lagmaster® Pole Tool Integration: The eyelet interfaces with industrial Lagmaster® pole sockets for floor-level deployment.

• Tension-Driven Engineering: This hardware is intended for tension applications only and must not be substituted for a shear- or compression-rated connection.

Standard Installation Procedures and Structural Integration Workflows

Before installation, review the approved hanger layout, identify solid wood framing, and verify that the selected location supports the intended tension load. Do not install into unsuitable wood, concealed unsupported finish material, or a member with damage, splitting, or unknown capacity. Confirm load requirements, spacing, wire size, and local code provisions.

For efficient overhead placement, seat the eyelet in the correct driver socket and connect it to compatible extension poles. This reduces repeated ladder transitions and helps crews perform overhead drilling and anchoring from floor level when site conditions and tool instructions permit. Drive the W300CSS eye lag screw straight into the timber member until the eyelet is seated, without overdriving or damaging wood fibers around the connection.

The installed eyelet becomes an attachment point for ceiling wire, jack chain, and related support components in a suspended ceiling or pathway system. Pre-tied wire can be routed through the loop and tensioned according to the approved layout. Where a run changes direction or transitions around structural elements, crews may use compatible j-hooks, angle clips, or purlin clips when each is approved for its substrate and load. This keeps routing organized and reduces wire stress, unsupported spans, and line sag.

Advantages of Optimizing Overhead Wire Arrays with W300CSS Eye Lag Screw

The W300CSS eye lag screw supports practical field outcomes when it is selected and installed for its stated purpose:

• Austenitic non-magnetic composition: Supports approved work in sensitive medical imaging and high-resonance diagnostic areas where magnetic hardware is restricted.

• Passive chromium oxide layer: Helps resist rust and severe oxidation in coastal and marine-adjacent applications.

• Floor-level drive compatibility: Reduces continuous ladder transitions and supports faster repeated anchor placement.

• ICC legacy report documentation: Verified structural reporting through applicable ICC legacy report certification can support code-compliance review during inspection phases.

Get All Your Installation Supplies under One Roof with Hook and Hanger

Submit technical requirements online for nationwide shipping, product assistance, and an efficient return process when the supplied item is not appropriate. Clear ordering information reduces delays from incorrect material selection or incomplete hardware lists.

Our inventory supports wood, steel, and industrial masonry installation workflows. For timber and steel structures, eye lag screws, beam clamps, and threaded rod fasteners can address different approved connection methods, provided the substrate, load direction, and rating are verified. We offer supporting hardware for pathway containment from an individual timber anchor through a coordinated routing system.

Secure Your Commercial Hardware Inventory Directly From Hook and Hanger

Hook and Hanger is committed to supplying straightforward, dependable hardware for real construction demands. Choosing the correct W300CSS eye lag screw sizing and durable material construction supports an efficient installation process with a distributor focused on practical jobsite solutions.

To purchase your W300CSS Eye Lag Screw inventory or to explore our complete selection of Angle Clips, Beam Clamps, and Threaded Rod Fasteners, visit hookandhanger.com today. For technical support, bulk pricing tiers, or submittal documentation, call our specialist team at 805-583-9920 or email info@hookandhanger.com.
